.1. Synopsis

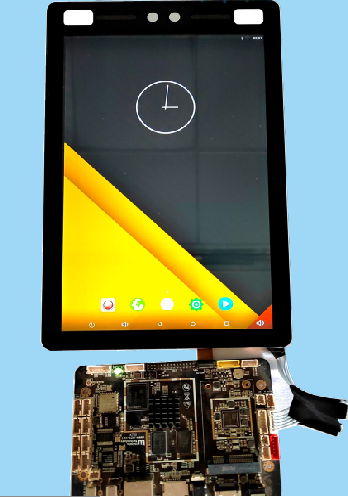

Uw-m135 is a multimedia LCD driver based on the V40 main chip development board.The main
board is equipped with 1GB/2GB DDR+8GB/16GB/32GB eMMC, which can support LVDS dot screen, MIPI dot screen, CVBS input/output, VGA output, YPbPr output and HDMI HD output.Its master IC uses
TSMC's 40nm HPC manufacturing process and is based on the ARM Cortex-A7 architecture, with four
cores and a dominant frequency up to 1.5ghz.Using the new generation of SmartColor technology, helps
display excellent image quality at high resolution, providing a pleasant visual effect for your whole
machine. Main property
 4 nuclear Maximum 1.5ghz dominant frequency
 LVDS screen and MIPI screen can be displayed differently
 Supports CVBS input and output
 Supports VGA and YPBPR output
 Four serial ports、Six USB port、TF CARD
