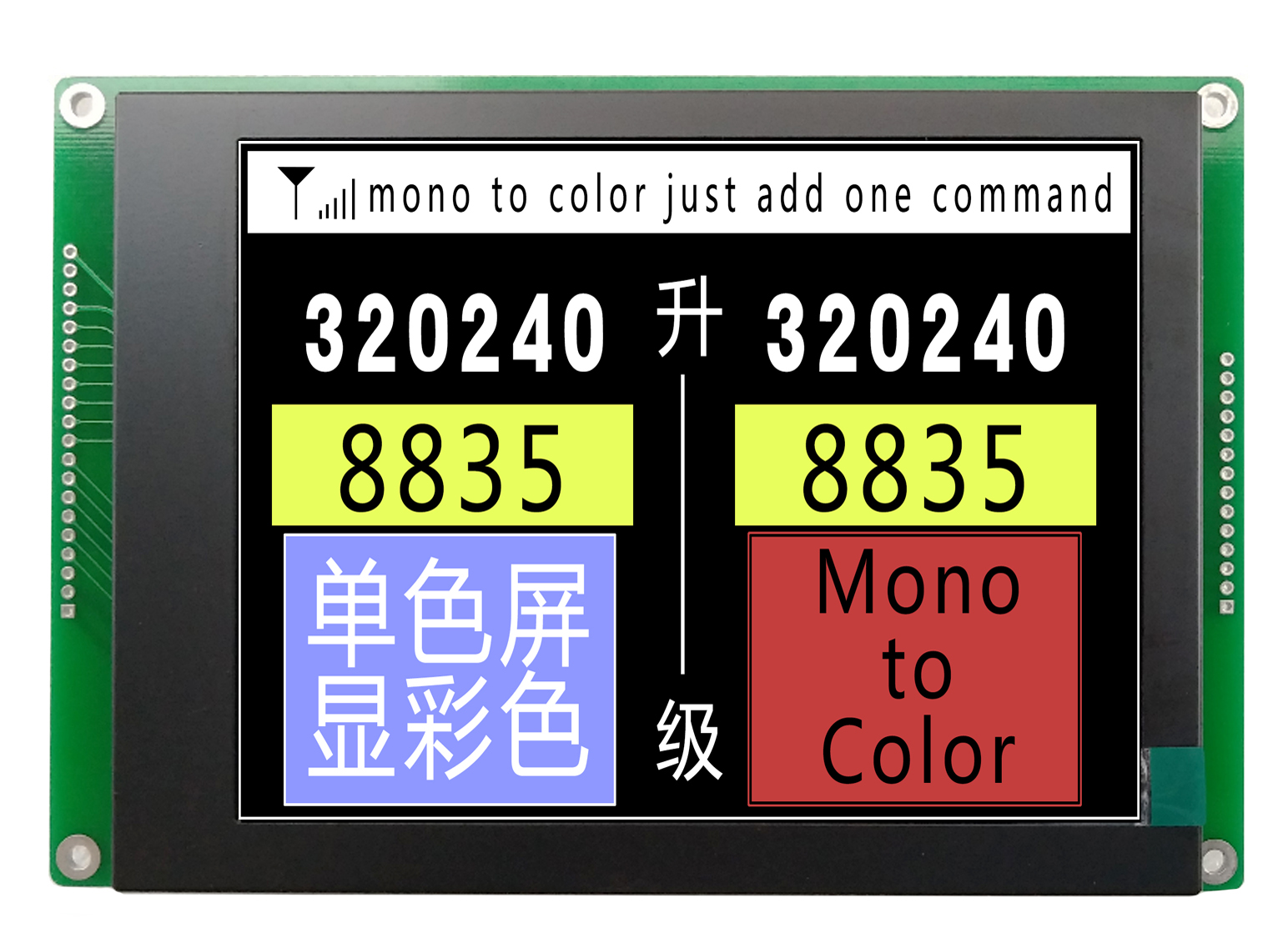

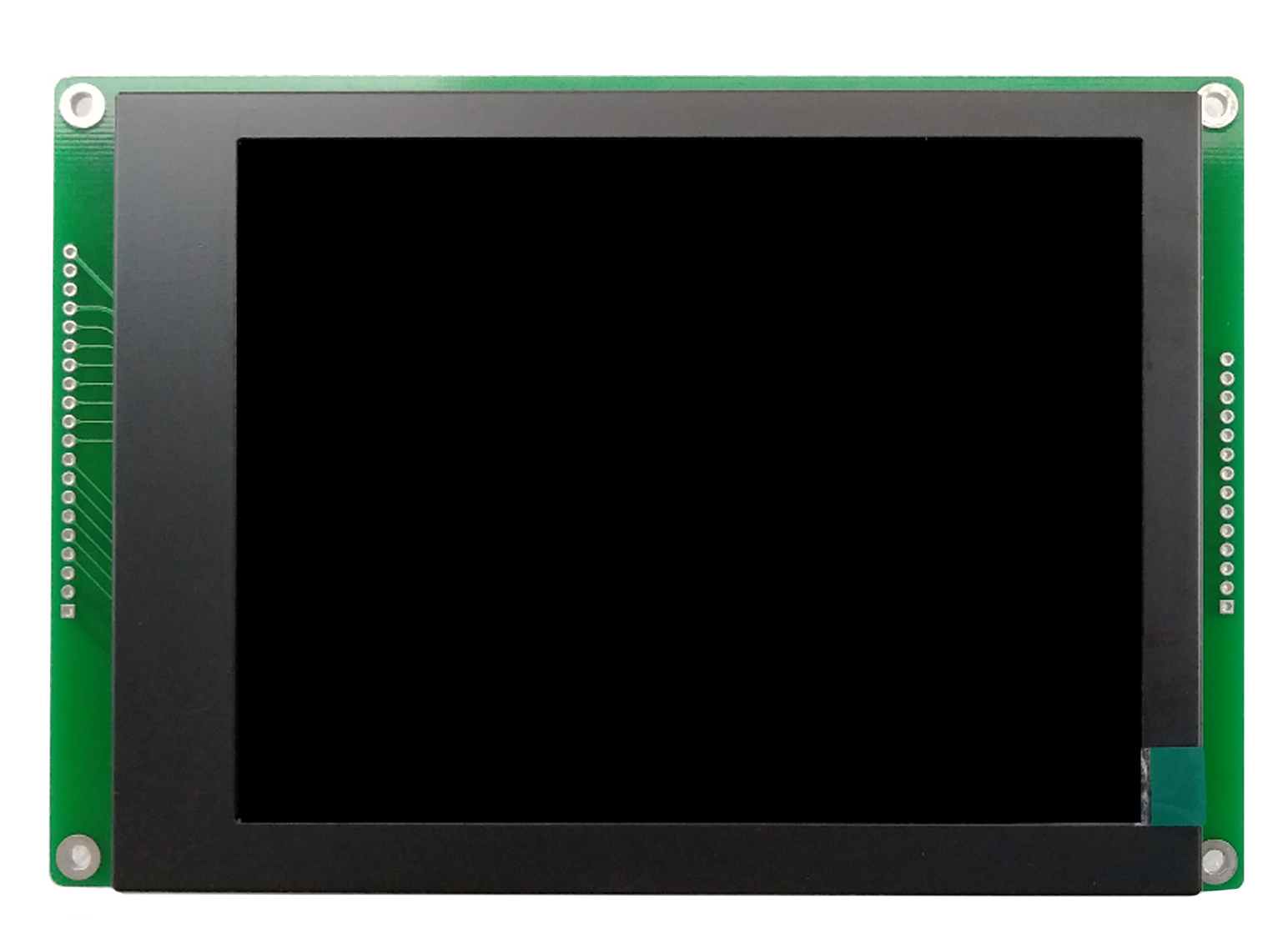

Module Parameter

Features	Details	Unit
Display Size(Diagonal)	5.7”
LCD type	Mono TFT
Display Mode	Transmissive/ Normally White
Resolution	320x240 Dots	Pixels
View Direction	6 O’CLOCK	Best Image
Gray Scale Inversion Direction	12 O’CLOCK
Module Outline	160(H) x109(V) x 11.4MAX(T) (Note1 )	mm
Active Area	115.2(H) x86.4(V)	mm
Font & Background Color	Font color and background color can be customized as needed (Note1)
Interface	8bit MCU
Controller IC	UCi8835
With or Without Touch Panel	Without	-
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g

Note 1: Can be freely divided into three display areas Any window

1.General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.

2.Module Parameter

Features	Details	Unit
Display Size(Diagonal)	5.7”
LCD type	Mono TFT
Display Mode	Transmissive/ Normally White
Resolution	320x240 Dots	Pixels
View Direction	6 O’CLOCK	Best Image
Gray Scale Inversion Direction	12 O’CLOCK

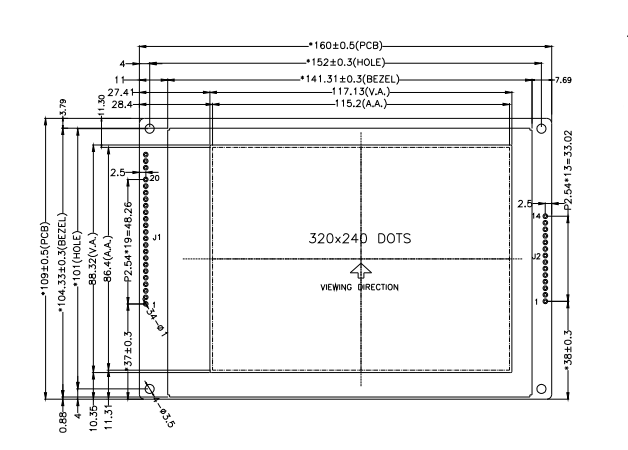

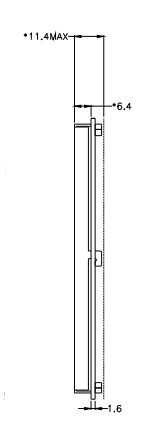

Module Outline	160(H) x109(V) x 11.4MAX(T) (Note1 )	mm
Active Area	115.2(H) x86.4(V)	mm
Font & Background Color	Font color and background color can be customized as needed (Note1)
Interface	8bit MCU
Controller IC	UCi8835
With or Without Touch Panel	Without	-
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g
