T024240320-B5WMN-001 (2.4 inch 240*320 dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices
  • Dimensions
  • photo
  • Reviews

Module Parameter

Features

Details Unit
Display Size(Diagonal) 2.4”
LCD type a-siTFT
Display Mode Transmissive/Normally black
Resolution 240 RGB x320 Pixels
View Direction FULL VIEW Best Image

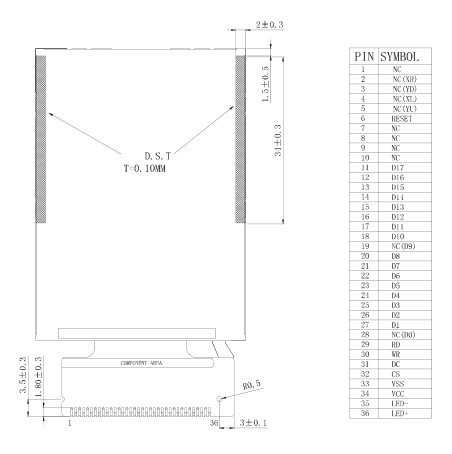

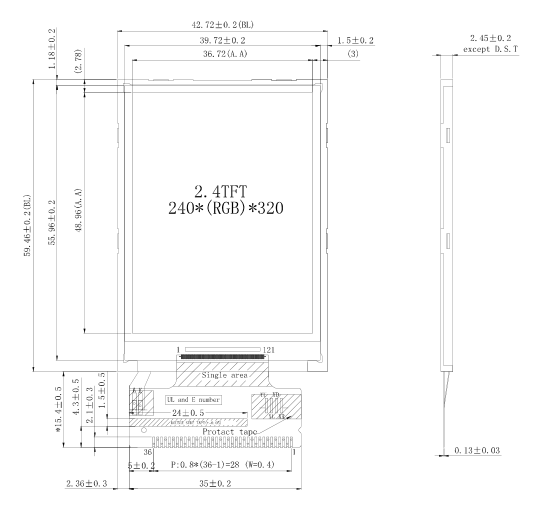

Module Outline 42.72 (H) x59.46(V) x 2.45 (T)  (Note1 ) mm
Active Area 36.72(H) x 48.96(V) mm
Pixel Size 153(H) x153(V) um
Pixel Arrangement RGB Vertical Stripe
Display Colors 65K
Interface 16-bitParallel CPU interface
With or without touch panel Without
Driver IC ILI9341V -
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.



1.      General Description

       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.


2.      Module Parameter

Features Details Unit
Display Size(Diagonal) 2.4”
LCD type a-siTFT
Display Mode Transmissive/Normally black
Resolution 240 RGB x320 Pixels
View Direction FULL VIEW Best Image
Module Outline 42.72 (H) x59.46(V) x 2.45 (T)  (Note1 ) mm
Active Area 36.72(H) x 48.96(V) mm
Pixel Size 153(H) x153(V) um
Pixel Arrangement RGB Vertical Stripe
Display Colors 65K
Interface 16-bitParallel CPU interface
With or without touch panel Without
Driver IC ILI9341V -
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.



3.      Absolute Maximum Ratings

VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage VCC -0.3 4.6 V
Storage temperature TSTG -30 +80 ºC
Operating temperature TOP -20 +70 ºC
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.



4.      DC Characteristics

Item Symbol Min. Typ. Max. Unit
Supply Voltage VCC 2.5 2.8 3.3 V
Logic Low input voltage VIL VSS - 0.3*VCC V
Logic High input voltage VIH 0.7*VCC - VCC V
Logic Low output voltage VOL VSS - 0.2*VCC V
Logic High output voltage VOH 0.8*VCC - VCC V
Current Consumption
All Black
Logic ICC+IIN - TBD - mA
Analog






5.      Backlight Characteristic

5.1.     BacklightCharacteristics


Item Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF Ta=25ºC,IF=15mA/LED 2.8 3.2 3.4 V
Forward Current IF Ta=25ºC, VF=3.2V/LED - 15*4 - mA
Power dissipation PD   - 192 - mW
Uniformity Avg   - 80 - %
Drive method Constant current

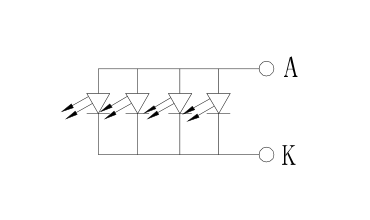

LEDConfiguration 4 White LEDs in parallel
