Module Parameter

Features	Details	Unit
Display Size(Diagonal)	1.5”
LCD type	TN TFT
Display Mode	Transmissive/Normally white
Resolution	160RGB x240	Pixels
View Direction	12 O’clock	Best Image
Gray Scale Inversion Direction	6 O’clock

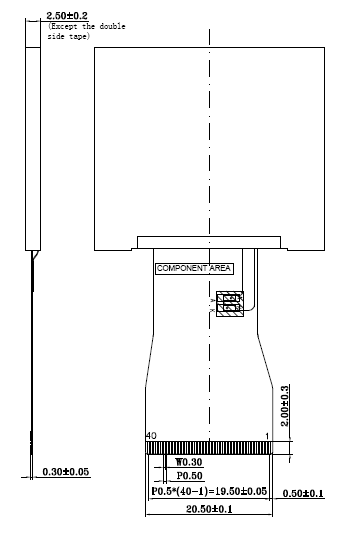

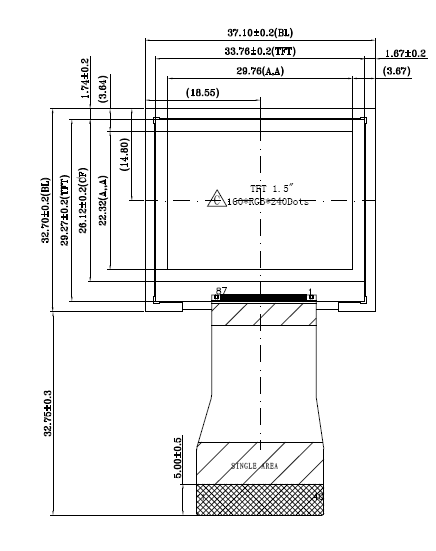

Module Outline	37.1(H) x32.7(V) x 2.5(T) (Note1 )	mm
Active Area	29.76(H) x 22.32(V)	mm
Pixel Size	186(H) x93(V)	um
Pixel Arrangement	RGB Delta
Polarizer SurfaceTreatment	Normal
Display Colors	262K
Interface	8 bit RGB+3-wire SPI
Driver IC	OTA5182A	-
With or without touch panel	Without
Operating Temperature	-10～60	ºC
Storage Temperature	-20～70	ºC
Weight	4	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.

1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver IC and a backlight unit.

2. Module Parameter

Features	Details	Unit
Display Size(Diagonal)	1.5”
LCD type	TN TFT
Display Mode	Transmissive/Normally white
Resolution	160RGB x240	Pixels
View Direction	12 O’clock	Best Image
Gray Scale Inversion Direction	6 O’clock
Module Outline	37.1(H) x32.7(V) x 2.5(T) (Note1 )	mm
Active Area	29.76(H) x 22.32(V)	mm
Pixel Size	186(H) x93(V)	um
Pixel Arrangement	RGB Delta
Polarizer SurfaceTreatment	Normal
Display Colors	262K
Interface	8 bit RGB+3-wire SPI
Driver IC	OTA5182A	-
With or without touch panel	Without
Operating Temperature	-10～60	ºC
Storage Temperature	-20～70	ºC
Weight	4	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Power supply	VCC	-0.3	4.6	V
Storage temperature	Tstg	-20	+70	ºC
Operating temperature	Top	-10	+60	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VCC	2.5	2.8	3.3	V
Logic Low input voltage	V_IL	GND	-	0.3*VCC	V
Logic High input voltage	V_IH	0.7*VCC	-	VCC	V
Logic Low output voltage	V_IL	GND	-	GND+0.4	V
Logic High output voltage	V_IH	VCC-0.4	-	VCC	V
Current Consumptionfor LCD All Black	I_CC	-	10	20	mA

5. Backlight Characteristic

5.1. BacklightCharacteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=20mA/LED	2.9	3.2	3.4	V
Forward Current	IF	Ta=25ºC, VF=3.2V/LED	-	20*2	-	mA
Power dissipation	Pd		-	128	-	mW
Uniformity	Avg		80	-	-	%
Drive method	Constant current
LEDConfiguration	2 White LEDParallel
