Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
1.77” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Transmissive/Normally white |
|
| Resolution |
128RGBx160 |
Pixels |
| View Direction |
6 O’clock |
Best Image |
| Gray Scale Inversion Direction |
12 O’clock |
|
| Module Outline |
34.7(H) x46.75(V) x 3.45 (T) (Note1 ) |
mm |
| Active Area |
28.032 (H) x 35.04 (V) |
mm |
| Pixel Size |
219 (H) x219 (V) |
um |
| Pixel Arrangement |
Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Display Colors |
262K |
|
| Interface |
MCU 8bit |
|
| With or without touch panel |
With |
|
| Driver IC |
ILI9163V |
- |
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
TBD |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.

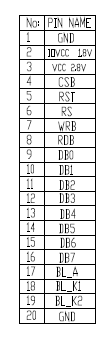

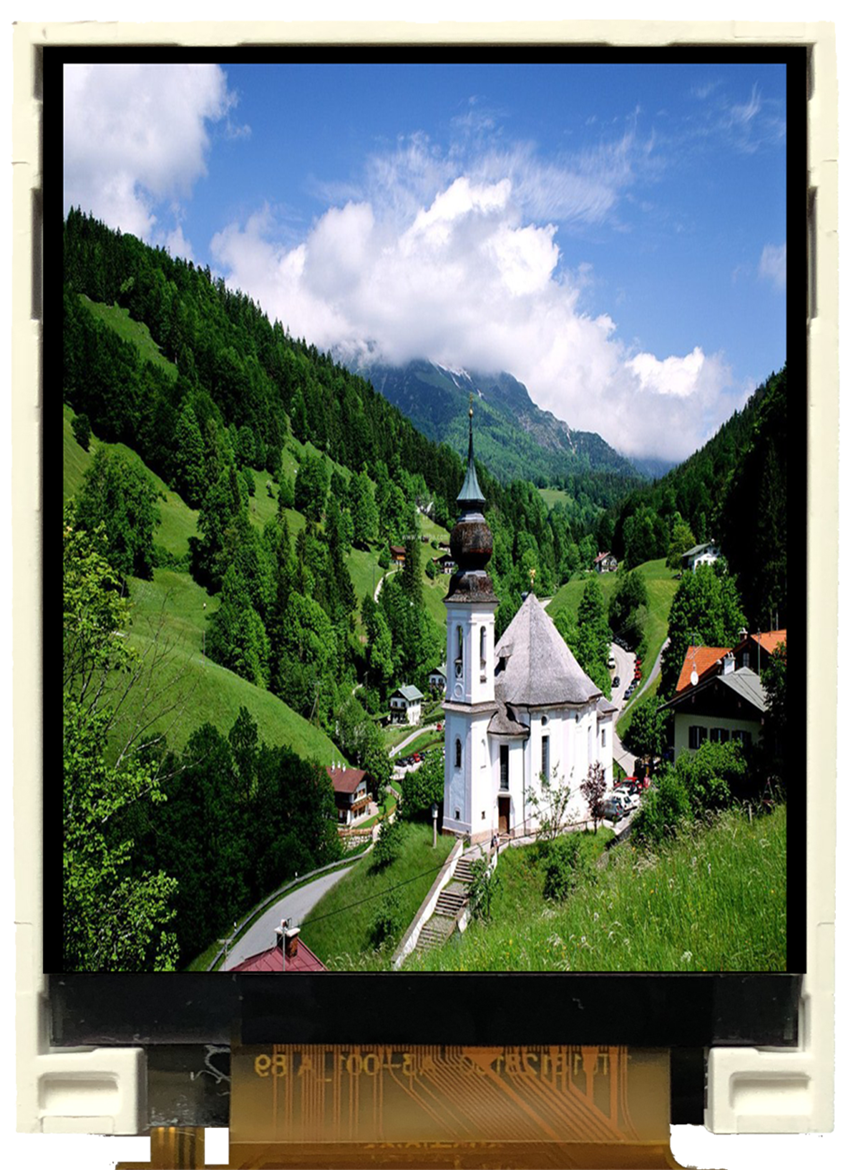

1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics, a touch panel and a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
1.77” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Transmissive/Normally white |
|
| Resolution |
128RGBx160 |
Pixels |
| View Direction |
6 O’clock |
Best Image |
| Gray Scale Inversion Direction |
12 O’clock |
|

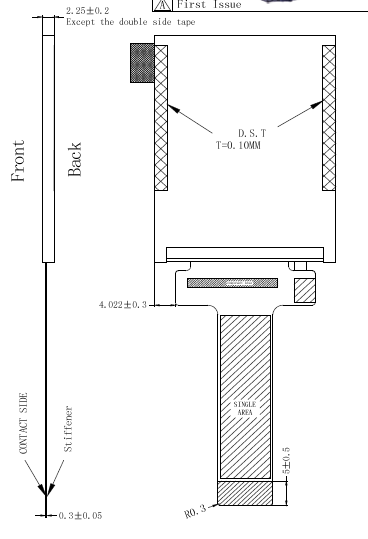

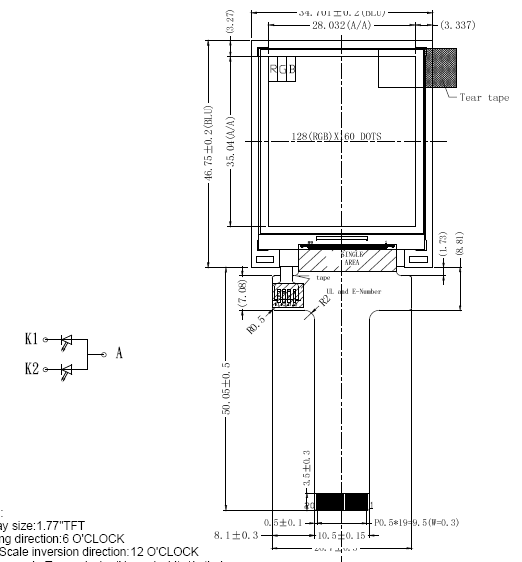

| Module Outline |
34.7(H) x46.75(V) x 3.45 (T) (Note1 ) |
mm |
| Active Area |
28.032 (H) x 35.04 (V) |
mm |
| Pixel Size |
219 (H) x219 (V) |
um |
| Pixel Arrangement |
Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Display Colors |
262K |
|
| Interface |
MCU 8bit |
|
| With or without touch panel |
With |
|
| Driver IC |
ILI9163V |
- |
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
TBD |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
Logic |
IOVCC |
-0.3 |
4.6 |
V |
| Analog |
VCC |
-0.3 |
4.6 |
V |
| Storage temperature |
TSTG |
-30 |
+80 |
ºC |
| Operating temperature |
TOP |
-20 |
+70 |
ºC |
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
Logic |
IOVCC |
1.65 |
2.8 |
3.3 |
V |
| Analog |
VCC |
2.5 |
2.8 |
3.3 |
V |
| Logic Low input voltage |
VIL |
GND |
- |
0.3*IOVCC |
V |
| Logic High input voltage |
VIH |
0.7*IOVCC |
- |
IOVCC |
V |
| Logic Low output voltage |
VOL |
GND |
- |
0.2*IOVCC |
V |
| Logic High output voltage |
VOH |
0.8*IOVCC |
- |
IOVCC |
V |
Current Consumption
All Black |
Logic |
ICC+IIN |
- |
TBD |
|
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=15mA/LED |
2.8 |
3.2 |
3.4 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
- |
30 |
- |
mA |
| Power dissipation |
PD |
|
- |
96 |
- |
mW |
| Uniformity |
Avg |
|
- |
80 |
- |
% |
| LED working life(25℃) |
- |
|
- |
30,000 |
- |
Hrs |
| Drive method |
Constant current |
| LEDConfiguration |
2White LEDs in parallel |
Note1：LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA
