Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
2.8” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Transmissive/Normally white |
|
| Resolution |
240 RGB x320 |
Pixels |
| View Direction |
6 O’clock |
Best Image |
| Gray Scale Inversion Direction |
12 clock |
|
| Module Outline |
50.00(H) x69.20(V) x 2.55MAX(T) (Note1 ) |
mm |
| Active Area |
43.2(H) x 57.6 (V) |
mm |
| Pixel Size |
180x180 |
um |
| Pixel Arrangement |
R.G.B. Vertical Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Display Colors |
262K |
|
| Interface |
8-bitParallel CPU interface |
|
| With or without touch panel |
Without |
|
| Driver IC |
ILI9341V |
- |
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
15 |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.

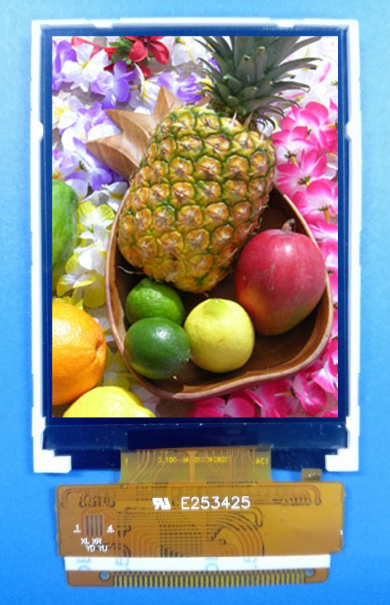

1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
2.8” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Transmissive/Normally white |
|
| Resolution |
240 RGB x320 |
Pixels |
| View Direction |
6 O’clock |
Best Image |
| Gray Scale Inversion Direction |
12 clock |
|

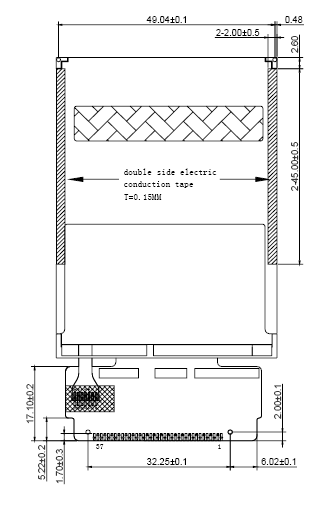

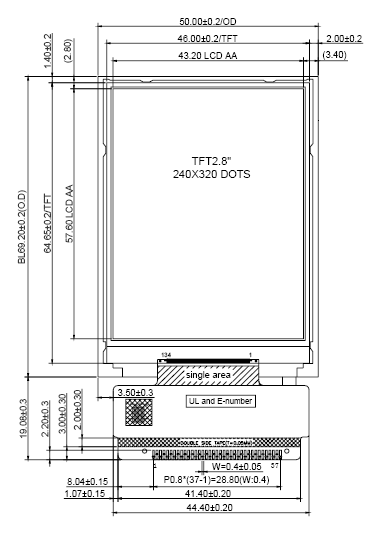

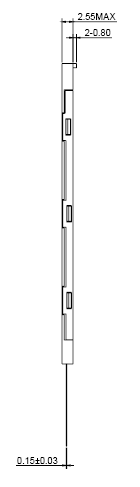

| Module Outline |
50.00(H) x69.20(V) x 2.55MAX(T) (Note1 ) |
mm |
| Active Area |
43.2(H) x 57.6 (V) |
mm |
| Pixel Size |
180x180 |
um |
| Pixel Arrangement |
R.G.B. Vertical Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Display Colors |
262K |
|
| Interface |
8-bitParallel CPU interface |
|
| With or without touch panel |
Without |
|
| Driver IC |
ILI9341V |
- |
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
15 |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
Logic |
IOVCC |
-0.3 |
4.6 |
V |
| Analog |
VCC |
-0.3 |
4.6 |
V |
| Storage temperature |
TSTG |
-30 |
+80 |
ºC |
| Operating temperature |
TOP |
-20 |
+70 |
ºC |
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
Logic |
IOVCC |
1.65 |
1.8/2.8 |
3.3 |
V |
| Analog |
VCC |
2.4 |
2.8 |
3.3 |
V |
| Logic Low input voltage |
VIL |
GND |
- |
0.3*IOVCC |
V |
| Logic High input voltage |
VIH |
0.7*IOVCC |
- |
IOVCC |
V |
| Logic Low output voltage |
VOL |
GND |
- |
0.2*IOVCC |
V |
| Logic High output voltage |
VOH |
0.8*IOVCC |
- |
IOVCC |
V |
Current Consumption
All Black |
Logic |
ICC+IIN |
- |
(8) |
- |
mA |
| Analog |
5. Backlight Characteristic
5.1. BacklightCharacteristics
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=15mA/LED |
2.8 |
3.2 |
3.4 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
- |
90 |
120 |
mA |
| Power dissipation |
PD |
|
- |
288 |
408 |
mW |
| LED Life Time(25ºC) |
- |
- |
- |
30,000 |
- |
hrs |
| Uniformity |
Avg |
|
80 |
85 |
- |
% |
| Drive method |
Constant current |
| LEDConfiguration |
6White LEDs in parallel |
Note: LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%.
