1.      General Description

The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.
 2.      Module Parameter

Features	Details	Unit
Display Size(Diagonal)	3.0”
LCD type	IPS TFT
Display Mode	Transmissive/Normally Black
Resolution	360RGB x640	Pixels
View Direction	Full viewing	Best Image

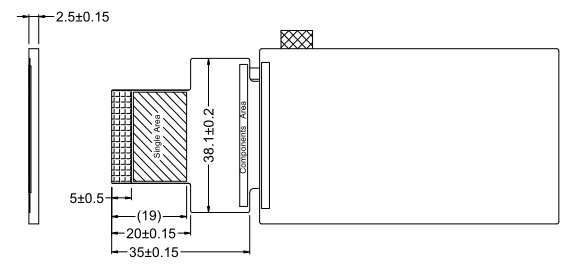

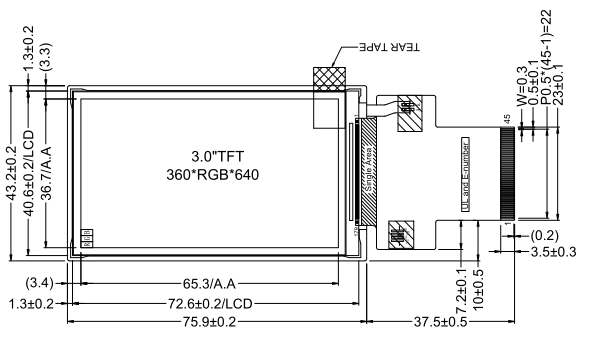

Module Outline	43.24(H) x75.9(V) x2.5(T)  (Note1 )	mm
Active Area	36.7(H) x65.3(V)	mm
Pixel Pitch	102(H) x102(V)	um
Pixel Arrangement	RGB Vertical stripe
Polarizer surface treatment	Glare
Display Colors	16.7M
Interface	SPI+24 bit RGB
Driver IC	ST7701S
With or without the touch panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g

Note 1: Inclusive hooks, posts, FFC/FPC tail etc.


3.  Absolute Maximum Ratings

V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	-0.3	4.6	V
	IOVCC	-0.3	4.6	V
Storage temperature	TSTG	-30	80	ºC
Operating temperature	TOP	-20	70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.

 4. DC Characteristics

Item		Symbol	Min.	Typ.	Max.	Unit
Supply Voltage		VCI	2.5	2.8	3.6	V
		IOVCC	1.65	1.8	3.3
Logic low level input voltage		VIH	0.7*IOVCC		IOVCC
Logic low level input voltage		VIL	GND		0.3*IOVCC
Logic low level input voltage		VOH	0.8*IOVCC		IOVCC
Logic low level input voltage		VOL	GND		0.2*IOVCC
Current Consumption All white	Logic	ICC+IIN	-	TBD	-	mA
	Analog


 5.  Backlight Characteristic

5.1. BacklightCharacteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=20mA/LED	14	16	17	V
Forward Current	IF	Ta=25ºC, VF=3.2V/LED	-	20	-	mA
Power dissipation	PD	-	-	320	-	mW
Uniformity	Avg	-	-	80	-	%
LED working life(25℃)			-	30000	-	Hrs
Drive method	Constant current
LEDConfiguration	5 White LEDs(5LEDs in one string)

Note1：LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, I_F=20mA
