T031475137-A0WMN-001 (3.1 inch 457*137 dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices
  • Dimensions
  • photo
  • Reviews

Module Parameter

Features Details Unit
Display Size(Diagonal) 3.1”
LCD type a-Si TFT
Display Mode Transmissive/ Normally Black
Resolution 475x137 Pixels
View Direction FULL VIEW Best Image

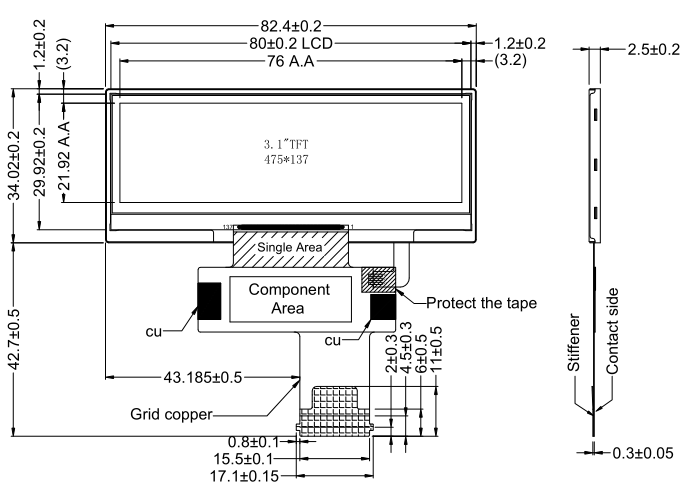

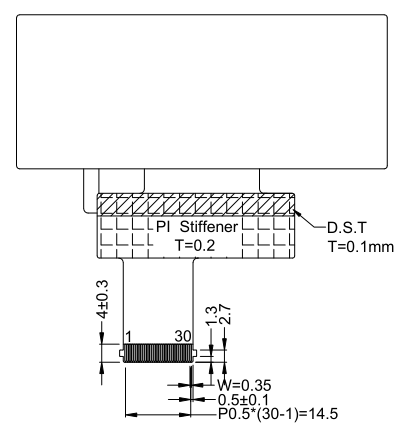

Module Outline 82.4(H) x34.02(V) x 2.5(T)  (Note1 ) mm
Active Area 76 (H) x21.92(V) mm
Pixel Pitch 160(H) x160(V) um
Pixel Arrangement Mono Stripe
Interface 3/4-Line SPI
8-bit 8080 Interface

Driver IC ST7511 -
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.

1. General Description

       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics and a backlight unit.

2. Module Parameter

Features Details Unit
Display Size(Diagonal) 3.1”
LCD type a-Si TFT
Display Mode Transmissive/ Normally Black
Resolution 475x137 Pixels
View Direction FULL VIEW Best Image
Module Outline 82.4(H) x34.02(V) x 2.5(T)  (Note1 ) mm
Active Area 76 (H) x21.92(V) mm
Pixel Pitch 160(H) x160(V) um
Pixel Arrangement Mono Stripe
Interface 3/4-Line SPI
8-bit 8080 Interface

Driver IC ST7511 -
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.


3.  Absolute Maximum Ratings

 VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage 3.3V_VCC -0.3 6.0 V
3.3V_VCI -0.3 6.0
Storage temperature Tstg -30 +80 ºC
Operating temperature Top -20 +70 ºC
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4. DC Characteristics
Item Symbol Min. Typ. Max. Unit
Supply Voltage 3.3V_VCC 2.7 3.3 5.5 V
3.3V_VCI 2.7 3.3 5.5
Logic Low input voltage VIL GND - 0.2*3.3V_VCC V
Logic High input voltage VIH 0.8*3.3V_VCC - 3.3V_VCC V
Logic Low output voltage VOL GND - 0.2*3.3V_VCC V
Logic High output voltage VOH 0.8*3.3V_VCC - 3.3V_VCC V
Current Consumption
All White
Logic ICC+IIN - TBD - mA
Analog

  5. Backlight Characteristic

5.1.   Backlight Characteristic

Item Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF Ta=25ºC,IF=20mA/LED 14 16 17 V
Forward Current IF Ta=25ºC, VF=3.2V/LED - 40 - mA
Power dissipation PD - - 640 - mW
Uniformity Avg - - 80 - %
LED working life(25℃) -   - 30,000 - Hrs
Drive method Constant current

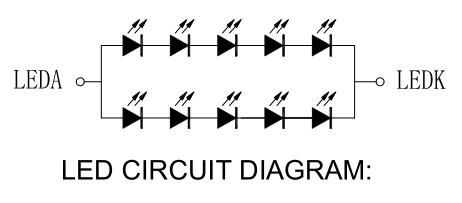

LEDConfiguration 10 White LEDs( 5 LEDsin stringand 2groups in parallel)

Note1:LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA











Average rating:
