Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
3.5” |
|
| LCD type |
MVA TFT |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
480RGB x640 |
Pixels |
| View Direction |
FULL VIEW |
Best Image |

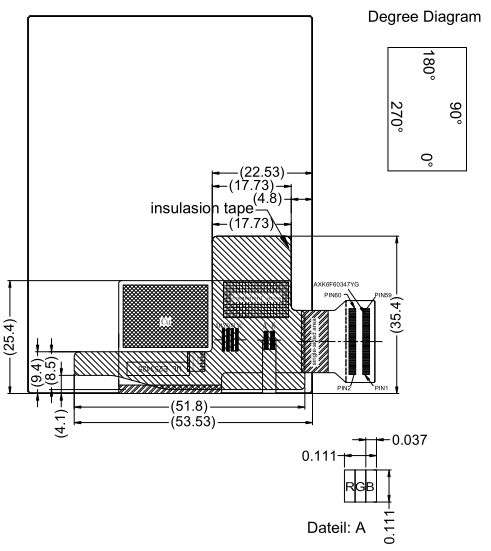

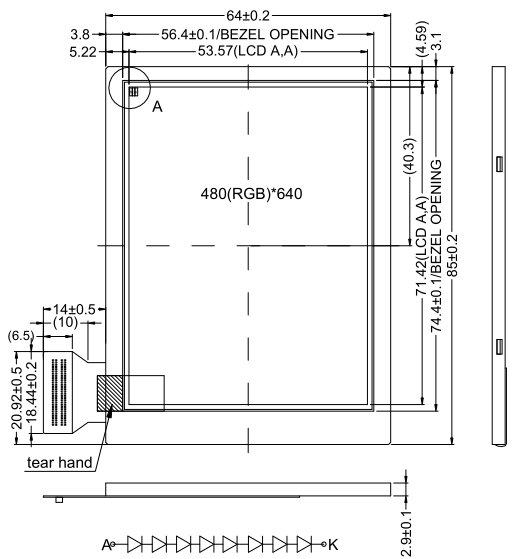

| Module Outline |
64 (H) x85(V) x2.9 (T) (Note1 ) |
mm |
| Active Area |
53.57 (H) x 71.42 (V) |
mm |
| Pixel Size |
111.6 (H) x111.6 (V) |
um |
| Pixel Arrangement |
Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Display Colors |
262K |
|
| Interface |
18-bitRGB interface+3 wire SPI |
|
| Driver IC |
HX8363-A |
- |
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
32 |
g |
Note 1: Exclusive hooks, posts , FFC/FPC tail etc.
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICsand a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
3.5” |
|
| LCD type |
MVA TFT |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
480RGB x640 |
Pixels |
| View Direction |
FULL VIEW |
Best Image |
| Module Outline |
64 (H) x85(V) x2.9 (T) (Note1 ) |
mm |
| Active Area |
53.57 (H) x 71.42 (V) |
mm |
| Pixel Size |
111.6 (H) x111.6 (V) |
um |
| Pixel Arrangement |
Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Display Colors |
262K |
|
| Interface |
18-bitRGB interface+3 wire SPI |
|
| Driver IC |
HX8363-A |
- |
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
32 |
g |
Note 1: Exclusive hooks, posts , FFC/FPC tail etc.
