T035480640-A1WFN-001 (3.5 inch 480*640 dots AIFF TFT)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices

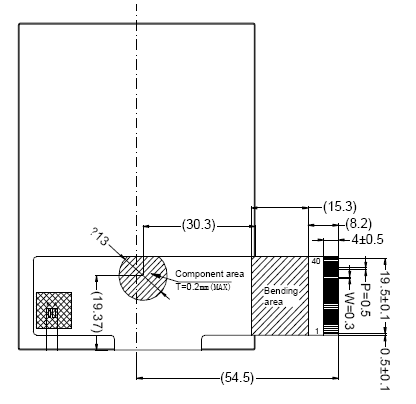

  • Dimensions
  • photo
  • Reviews

Module Parameter

Features Details Unit
Display Size(Diagonal) 3.5”
LCD type AIFF TFT
Display Mode Transflective /Normally Black
Resolution 480RGB x640 Pixels
View Direction FULL VIEW Best Image
Module Outline 64 (H) x85(V) x3.1 (T)  (Note1 ) mm
Active Area 53.568 (H) x 71.424 (V) mm
Pixel Size 111.6 (H) x111.6 (V) um
Pixel Arrangement Stripe
Polarizer SurfaceTreatment Anti-glare
Display Colors 262K
Interface 18-bitRGB interface+3 wire SPI
Driver IC HX8363-A -
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.

1. General Description
     The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics, a touch panel and a backlight unit.

2. Module Parameter

Features Details Unit
Display Size(Diagonal) 3.5”
LCD type AIFF TFT
Display Mode Transflective /Normally Black
Resolution 480RGB x640 Pixels
View Direction FULL VIEW Best Image
Module Outline 64 (H) x85(V) x3.1 (T)  (Note1 ) mm
Active Area 53.568 (H) x 71.424 (V) mm
Pixel Size 111.6 (H) x111.6 (V) um
Pixel Arrangement Stripe
Polarizer SurfaceTreatment Anti-glare
Display Colors 262K
Interface 18-bitRGB interface+3 wire SPI
Driver IC HX8363-A -
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
 3. Absolute Maximum Ratings
VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage   VCC -0.3 4.6 V
Storage temperature TSTG -30 +80 ºC
Operating temperature TOP -20 +70 ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
  4. DC Characteristics
Item Symbol Min. Typ. Max. Unit
Supply Voltage VCC 1.65 - 3.3 V
Logic Low input voltage VIL 0 - 0.3*VCC V
Logic High input voltage VIH 0.7*VCC - VCC V
Logic Low output voltage VOL 0 - 0.2*VCC V
Logic High output voltage VOH 0.8*VCC - VCC V
CurrentConsumption
All White
Logic ICC+IIN - TBD - mA
Analog
 5.      Backlight Characteristic
5.1.     BacklightCharacteristics
Item Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF Ta=25ºC,IF=20mA/LED 18.0 19.2 21 V
Forward Current IF Ta=25ºC, VF=3.2V/LED - 20 - mA
Power dissipation PD   - 384 - mW
Uniformity Avg   80 - - %
Drive method Constant current
LEDConfiguration 6White LEDs in Serial
