Module Parameter

Features	Details	Unit
Display Size(Diagonal)	3.8”
LCD type	TN TFT
Display Mode	Transmissive/normally white
Resolution	240RGB x320	Pixels
View Direction	12 O’CLOCK	Best Image
Gray Scale Inversion direction	6 O’CLOCK

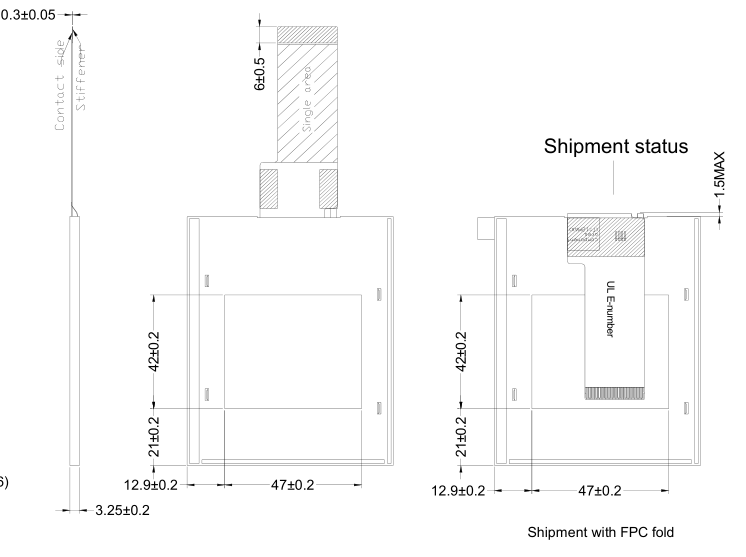

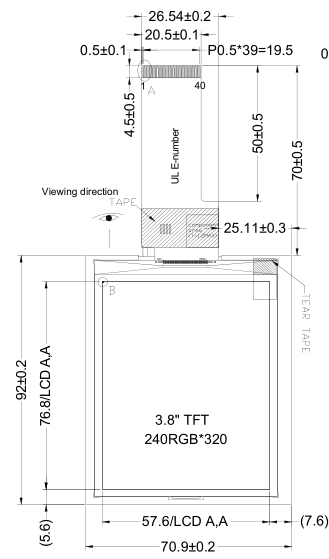

Module Outline	70.9(H) x92(V) x 3.25 (T) (Note1 )	mm
Active Area	57.6(H) x76.8(V)	mm
Pixel Size	240(H) x240(V)	um
Pixel Arrangement	R.G.B Vertical Stripe
Display Colors	262K
Interface	18-bit RGB Interface + 3-wire 9bit data serial interface Ⅱ
Driver IC	ILI9341V	-
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g

Note 1: Exclusive hooks, posts , FFC/FPC tail etc.

1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsland a backlight unit.

2.Module Parameter

Features	Details	Unit
Display Size(Diagonal)	3.8”
LCD type	TN TFT
Display Mode	Transmissive/normally white
Resolution	240RGB x320	Pixels
View Direction	12 O’CLOCK	Best Image
Gray Scale Inversion direction	6 O’CLOCK
Module Outline	70.9(H) x92(V) x 3.25 (T) (Note1 )	mm
Active Area	57.6(H) x76.8(V)	mm
Pixel Size	240(H) x240(V)	um
Pixel Arrangement	R.G.B Vertical Stripe
Display Colors	262K
Interface	18-bit RGB Interface + 3-wire 9bit data serial interface Ⅱ
Driver IC	ILI9341V	-
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item		Symbol	Min.	Max.	Unit
Supply Voltage	Digital	IOVCC	-0.3	4.6	V
Supply Voltage	Analog	VCI	-0.3	4.6	V
Storage temperature		Tstg	-30	+80	ºC
Operating temperature		Top	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4.DC Characteristics

Item		Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	Digital	IOVCC	1.65	1.8	3.3	V
Supply Voltage	Analog	VCI	2.5	2.8	3.3	V
Logic Low input voltage		V_IL	0	-	0.3*IOVCC	V
Logic High input voltage		V_IH	0.7* IOVCC	-	IOVCC	V
Logic Low output voltage		V_OL	0	-	0.2* IOVCC	V
Logic High output voltage		V_OH	0.8* IOVCC	-	IOVCC	V
Current Consumption All Black	Logic	I_CC₊I_IN	-	20	-	mA
Current Consumption All Black	Analog	I_CC₊I_IN	-	20	-	mA

5. Backlight Characteristic

5.1. Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=20mA/LED	16.8	19.2	20.4	V
Forward Current	IF	Ta=25ºC, VF=3.2V/LED	-	20		mA
Power dissipation	Pd		-	384	-	mW
Uniformity	Avg		-	80	-	%
Drive method	Constant current
LEDConfiguration	6White LEDs in series
