T043480272-B3WMN-002 (4.3 inch 480*272 dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices

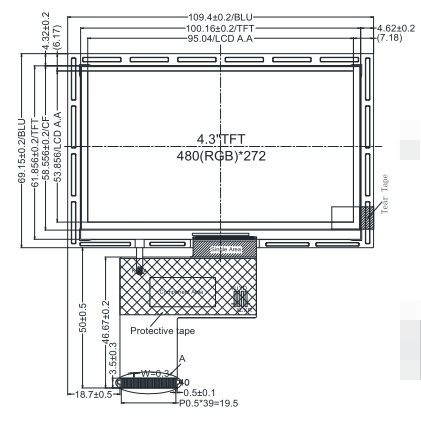

  • Dimensions

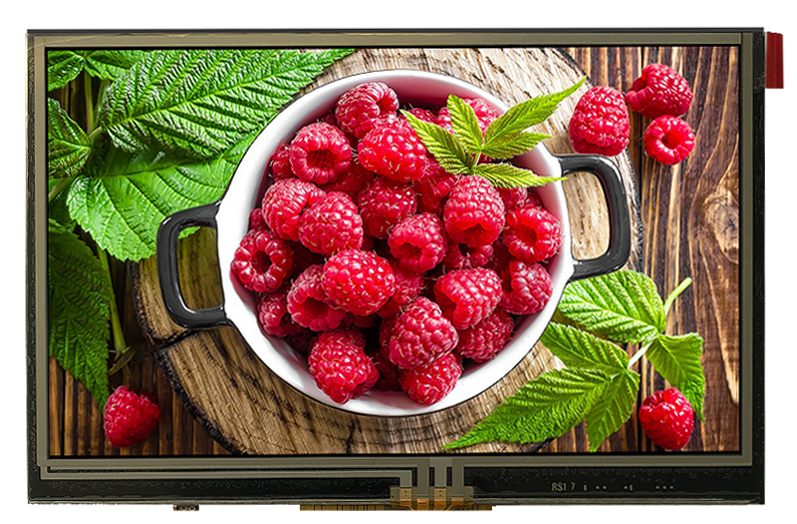

  • photo
  • Reviews

Module Parameter

Features Details Unit
Display Size(Diagonal) 4.3”
LCD type IPS TFT
Display Mode Transmissive/Normally black
Resolution 480RGB x272 Pixels
View Direction FULL VIEW Best Image
Module Outline 109.4(H) x69.15(V) x 3(T)  (Note1 ) mm
Active Area 95.04(H) x 53.856(V) mm
Pixel Pich 198(H) x198(V) um
Polarizer Surface Treatment Anti-Glare
Display Colors 16.7M
Interface 24-bitRGB interface
Driver IC SC7283 -
With or Without Touch Panel Without
Operating Temperature -2070 ºC
Storage Temperature -3080 ºC
Weight TBD g

Note 1: Exclusive hooks, posts , FFC/FPC tail etc.

1. General Description
       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.

2. Module Parameter

Features Details Unit
Display Size(Diagonal) 4.3”
LCD type IPS  TFT
Display Mode Transmissive/Normally black
Resolution 480RGB x272 Pixels
View Direction FULL VIEW Best Image
Module Outline 109.4(H) x69.15(V) x 3(T)  (Note1 ) mm
Active Area 95.04(H) x 53.856(V) mm
Pixel Pich 198(H) x198(V) um
Polarizer Surface Treatment Anti-Glare
Display Colors 16.7M
Interface 24-bitRGB interface
Driver IC SC7283 -
With or Without Touch Panel Without
Operating Temperature -2070 ºC
Storage Temperature -3080 ºC
Weight TBD g
Note 1: Exclusive hooks, posts , FFC/FPC tail etc.
  3.  Absolute Maximum Ratings
VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage VCC -0.3 4.0 V
Storage temperature TSTG -30 +80 ºC
Operating temperature TOP -20 +70 ºC
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4.  DC Characteristics
Item Symbol Min. Typ. Max. Unit
Supply Voltage VCC 3.0 3.3 3.6 V
Logic-Low input Voltage VIL GND - 0.3*VCC mV
Logic-High input Voltage VIH 0.7*VCC - VCC mV
Logic-Low output Voltage VOL GND - GND+0.4 mV
Logic-High output Voltage VOH VCC-0.4 - VCC mV
Current Consumption
All white
Logic ICC+IIN - TBD - mA
Analog

 5.  Backlight Characteristic

5.1.  BacklightCharacteristics


Item Symbol Condition Min Typ Max Unit
Forward Voltage VF Ta=25ºC,IF=20mA/LED 22.4 24.8 27.2 V
Forward Current IF Ta=25ºC, VF=3.1V/LED - 40 - mA
Power dissipation PD - - 992 - mW
Uniformity Avg - - 80 - %
LED working life(25℃) - - - 30,000 - Hrs
Drive method Constant current
LEDConfiguration 16 White LEDs(8 LEDs in one string and 2 groups in parallel)
Note1:LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA/LED.





Average rating:
