Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
4.4” |
|
| Display Mode |
Transmissive/ Normally Black |
|
| LCD type |
a-Si TFT |
|
| Resolution |
550 x100 |
Pixels |
| View Direction |
FULL VIEW |
Best Image |
| Module Outline |
122.3(H) x31.8(V) x 2.6(T) (Note1 ) |
mm |
| Active Area |
110(H) x20(V) |
mm |
| Pixel Pitch |
200(H) x200(V) |
um |
| Pixel Arrangement |
Mono Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|
| Interface |
8-bit 8080 Interface |
|
| Driver IC |
ST7511 |
- |
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
TBD |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics and a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
4.4” |
|
| Display Mode |
Transmissive/ Normally Black |
|
| LCD type |
a-Si TFT |
|
| Resolution |
550 x100 |
Pixels |
| View Direction |
FULL VIEW |
Best Image |

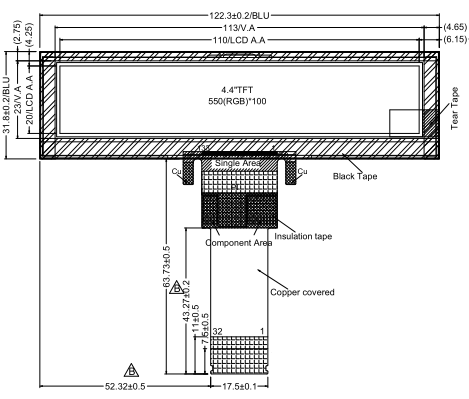

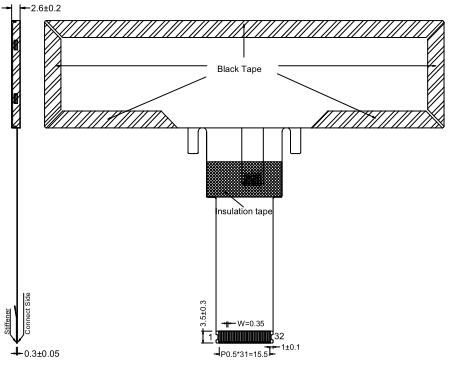

| Module Outline |
122.3(H) x31.8(V) x 2.6(T) (Note1 ) |
mm |
| Active Area |
110(H) x20(V) |
mm |
| Pixel Pitch |
200(H) x200(V) |
um |
| Pixel Arrangement |
Mono Stripe |
|
| Polarizer SurfaceTreatment |
Anti-glare |
|

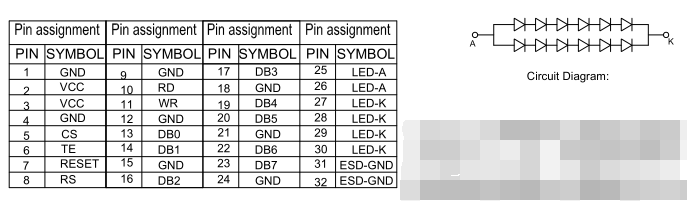

| Interface |
8-bit 8080 Interface |
|
| Driver IC |
ST7511 |
- |
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
TBD |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
VCC |
-0.3 |
6.0 |
V |
| Storage temperature |
Tstg |
-30 |
+80 |
ºC |
| Operating temperature |
Top |
-20 |
+70 |
ºC |
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
VCC |
2.7 |
3.3 |
5.5 |
V |
| Logic Low input voltage |
VIL |
GND |
- |
0.2*VCC |
V |
| Logic High input voltage |
VIH |
0.8*VCC |
- |
VCC |
V |
| Logic Low output voltage |
VOL |
GND |
- |
0.2*VCC |
V |
| Logic High output voltage |
VOH |
0.8*VCC |
- |
VCC |
V |
Current Consumption
All White |
Logic |
ICC+IIN |
- |
TBD |
- |
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=20mA/LED |
16.8 |
19.2 |
20.4 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
- |
40 |
- |
mA |
| Power dissipation |
PD |
- |
- |
768 |
- |
mW |
| Uniformity |
Avg |
- |
- |
80 |
- |
% |
| LED working life(25℃) |
- |
|
- |
30,000 |
- |
Hrs |
| Drive method |
Constant current |
| LEDConfiguration |
12 White LEDs( 6 LEDsin stringand 2groups in parallel) |
Note1：LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA
