Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
4.6” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Normally White/Transmissive |
|
| Resolution |
800 RGB x320 |
Pixels |
| View Direction |
12 O’clock |
Best Image |
| Gray Scale Inversion Direction |
6 O’clock |
|

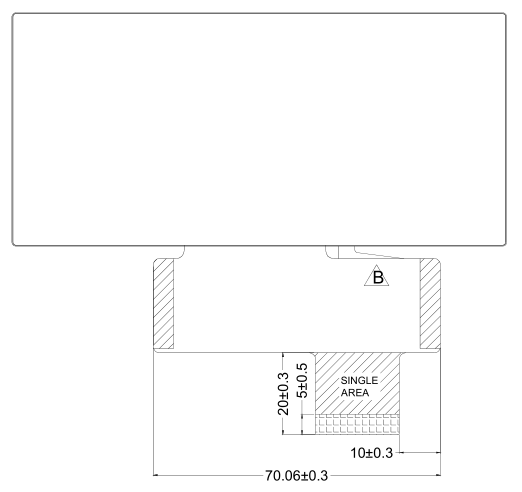

| Module Outline |
120.7 (H) x57.08(V) x3.1(MAX)(T) (Note1 ) |
mm |
| Active Area |
108 (H) x 43.2(V) |
mm |
| Pixel Size |
135 (H) x135(V) |
um |
| Pixel Arrangement |
R.G.B Vertical Stripe |
|
| Polarizer SurfaceTreatment |
Anti-Glare |
|
| Driver IC |
ILI6126C & ILI5960D |
|
| Display Colors |
16.7M |
|
| Interface |
24-bitRGB interface |
|
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
42 |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.
2.Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
4.6” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Normally White/Transmissive |
|
| Resolution |
800 RGB x320 |
Pixels |
| View Direction |
12 O’clock |
Best Image |
| Gray Scale Inversion Direction |
6 O’clock |
|
| Module Outline |
120.7 (H) x57.08(V) x3.1(MAX)(T) (Note1 ) |
mm |
| Active Area |
108 (H) x 43.2(V) |
mm |
| Pixel Size |
135 (H) x135(V) |
um |
| Pixel Arrangement |
R.G.B Vertical Stripe |
|
| Polarizer SurfaceTreatment |
Anti-Glare |
|
| Driver IC |
ILI6126C & ILI5960D |
|
| Display Colors |
16.7M |
|
| Interface |
24-bitRGB interface |
|
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
42 |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
VDD |
-0.5 |
5.0 |
V |
| Storage temperature |
TSTG |
-30 |
+80 |
ºC |
| Operating temperature |
TOP |
-20 |
+70 |
ºC |
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
VDD |
2.7 |
3.3 |
3.6 |
V |
| Logic Low input voltage |
VIL |
0 |
- |
0.3*VDD |
V |
| Logic High input voltage |
VIH |
0.7*VDD |
- |
VDD |
V |
| Logic Low output voltage |
VOL |
- |
- |
GND+0.4 |
V |
| Logic High output voltage |
VOH |
VDD-0.4 |
- |
- |
V |
Current Consumption
All Black |
Logic |
ICC+IIN |
- |
(100) |
- |
mA |
| Analog |
5. Backlight Characteristic
5.1. BacklightCharacteristics
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=20mA/LED |
16.8 |
19.2 |
20.4 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
- |
60 |
- |
mA |
| Power dissipation |
PD |
|
- |
1152 |
- |
mW |
| Uniformity |
Avg |
|
75 |
80 |
- |
% |
| LED working life(25℃) |
- |
|
20000 |
30000 |
- |
Hrs |
| LED Brightness level |
IV |
39 level / 40 level |
| LED color zone |
CIE |
Q0 / Q1 |
| LED brand |
JF |
| Drive method |
Constant current |

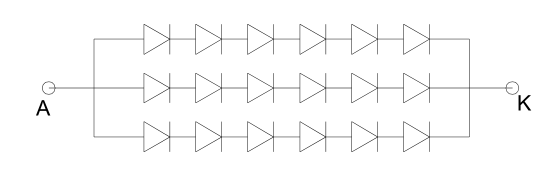

| LEDConfiguration |
18White LEDs (6 LEDs in string and 3 groups in parallel) |
Note: LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA.
