Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
4.6” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Normally White/Transmissive |
|
| Resolution |
800 RGB x320 |
Pixels |
| View Direction |
12 O’clock |
Best Image |
| Gray Scale Inversion Direction |
6 O’clock |
|

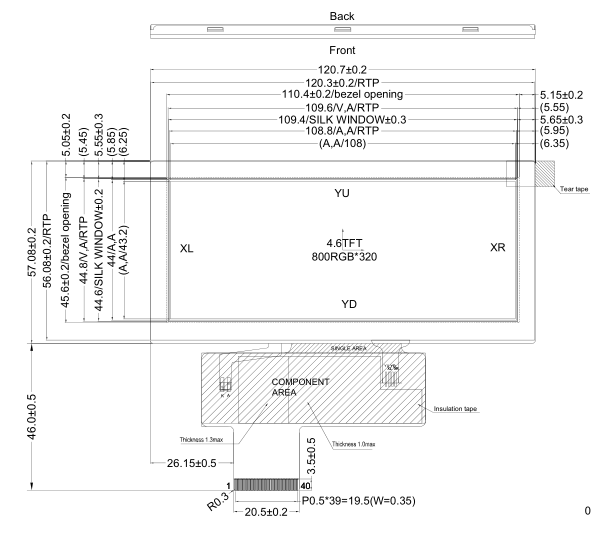

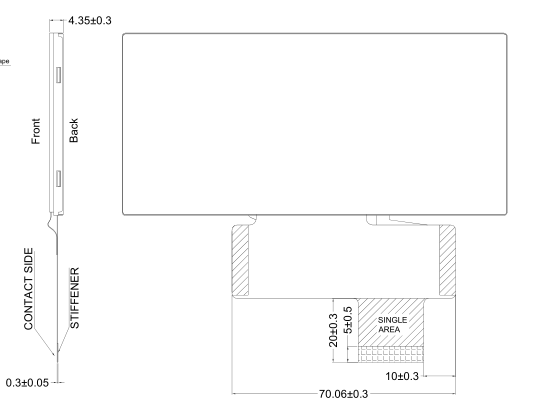

| Module Outline |
120.7 (H) x57.08(V) x4.35(T) (Note1 ) |
mm |
| Active Area |
108 (H) x 43.2(V) |
mm |
| Pixel Size |
135 (H) x135(V) |
um |
| Pixel Arrangement |
R.G.B Vertical Stripe |
|
| Polarizer SurfaceTreatment |
Anti-Glare |
|
| Display Colors |
16.7M |
|

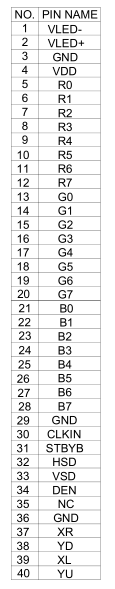

| Interface |
24-bitRGB interface |
|
| With or Without Touch Panel |
With |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
58 |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
1. General Description

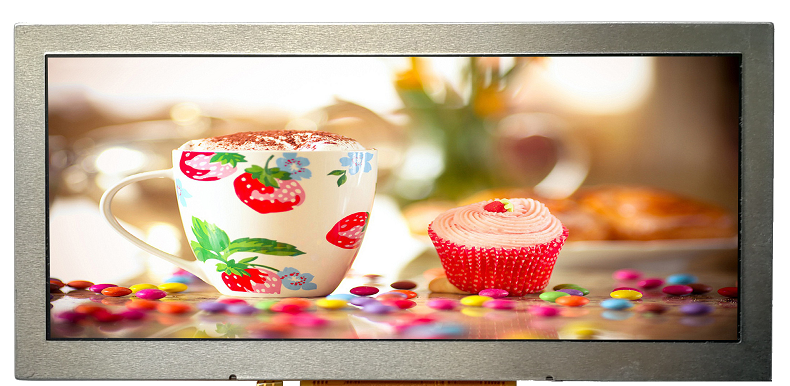

The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics, a touch panel and a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
4.6” |
|
| LCD type |
TN TFT |
|
| Display Mode |
Normally White/Transmissive |
|
| Resolution |
800 RGB x320 |
Pixels |
| View Direction |
12 O’clock |
Best Image |
| Gray Scale Inversion Direction |
6 O’clock |
|
| Module Outline |
120.7 (H) x57.08(V) x4.35(T) (Note1 ) |
mm |
| Active Area |
108 (H) x 43.2(V) |
mm |
| Pixel Size |
135 (H) x135(V) |
um |
| Pixel Arrangement |
R.G.B Vertical Stripe |
|
| Polarizer SurfaceTreatment |
Anti-Glare |
|
| Display Colors |
16.7M |
|
| Interface |
24-bitRGB interface |
|
| With or Without Touch Panel |
With |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
58 |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
VDD |
-0.5 |
5.0 |
V |
| Storage temperature |
TSTG |
-30 |
+80 |
ºC |
| Operating temperature |
TOP |
-20 |
+70 |
ºC |
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
VDD |
2.3 |
3.3 |
3.6 |
V |
| Logic Low input voltage |
VIL |
GND |
- |
0.3*VDD |
V |
| Logic High input voltage |
VIH |
0.7*VDD |
- |
VDD |
V |
(Panel+LSI)
Power Consumption |
Black Mode
(60Hz) |
|
TBD |
|
mW |
Standby
Mode |
|
TBD |
|
mW |
| Item |
Min. |
Typ. |
Max. |
Unit |
| LCD driver IC’s spec range of VGH |
-0.3 |
- |
42 |
V |
| LCD driver IC’s spec range of VGL |
-20 |
- |
+0.3 |
V |
| LCD driver IC’s spec range of VCOM |
2.0 |
- |
5.0 |
V |
| FPC circuit VGH |
15.65 |
17.65 |
19.65 |
V |
| FPC circuit VGL |
-8.95 |
-6.95 |
-4.95 |
V |
| FPC circuit VCOM |
2.35 |
2.85 |
3.35 |
V |
5. Backlight Characteristic
5.1. BacklightCharacteristics
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=20mA/LED |
- |
19.2 |
- |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
- |
20*3 |
- |
mA |
| Power dissipation |
PD |
|
- |
1152 |
- |
mW |
| Uniformity |
Avg |
|
75 |
80 |
- |
% |
| Drive method |
Constant current |
| LEDConfiguration |
18White LEDs (6 LEDs in string and 3 groups in parallel) |
