1.General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICsand a backlight unit.

 2.Module Parameter

Features	Details	Unit
Display Size(Diagonal)	7.0”
LCD type	IPS TFT
Display Mode	Transmissive/Normally black
Resolution	1024RGB x600	Pixels
View Direction	FULL VIEW	Best Image

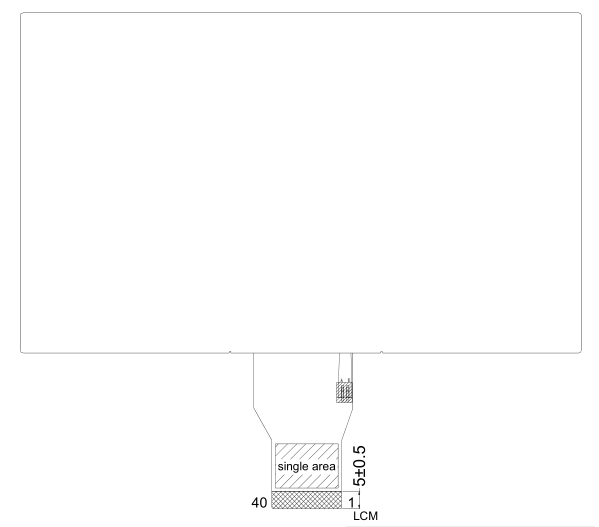

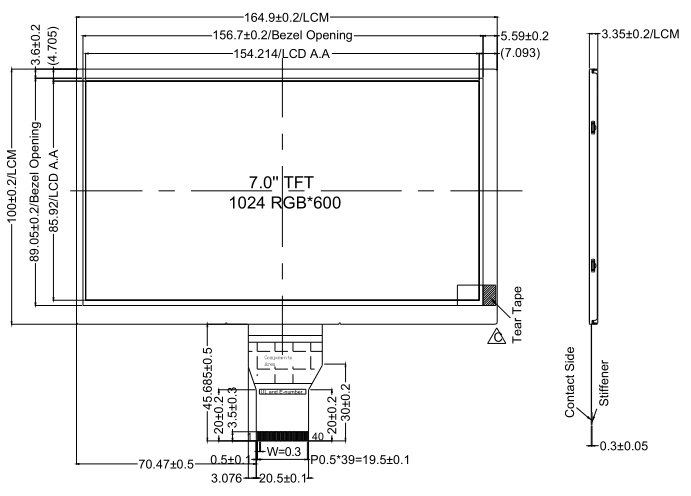

Module Outline	164.9(H) x100(V) x3.35(T)  (Note1 )	mm
Active Area	154.21(H) x 85.92(V)	mm
Pixel Pitch	150.6(H) x 143.2(V)	um
Pixel Arrangement	RGB vertical Stripe
Polarizer Surface Treatment	Glare
Display Colors	16.7 M
Interface	LVDS Interface
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	110	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
 3. Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VDD	-0.5	5.0	V
Storage temperature	TSTG	-30	+80	ºC
Operating temperature	TOP	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4. DC Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VDD	2.3	3.3	3.6	V
	AVDD	-	9.6	-	V
	VGH	-	18	-	V
	VGL	-	-6	-	V
	VCOM	-	(Note 1)	-	V
Differential input high threshold voltage	RxVTH	-	-	0.1	V
Differential input low threshold voltage	RxVTL	-0.1	-	-	V
Input voltage range (singled-end)	RxVIN	0	-	2.4	V

Note 1: VCOM must be optimized according to each LCM. Be sure to use VR and OP buffer on VCOM output. Please adjust VCOM to make the flicker level be minimum for getting excellent image.
  5. Backlight Characteristic

5.1. Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=20mA/LED	8.4	9.6	10.2	V
Forward Current	IF	Ta=25ºC, VF=3.2V/LED	-	160	-	mA
Power dissipation	PD			1536		mW
Uniformity	Avg		70	-	-	%
LED working life(25℃)	-		-	20,000	-	Hrs
Drive method	Constant current

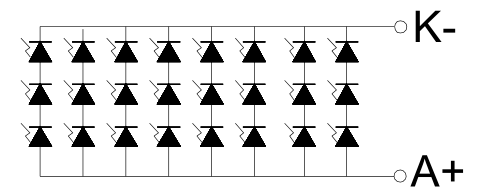

LEDConfiguration	24 White LEDs (3 LEDs in string and 8 groups in parallel)

Note1：LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, I_F=20mA
