1. General Description
       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.

2. Module Parameter

Features	Details	Unit
Display Size(Diagonal)	5.0”
LCD type	TN TFT
Display Mode	Normally White/Transmissive
Resolution	800 RGB x480	Pixels
View Direction	12 O’clock	Best Image
Gray Scale Inversion Direction	6 O’clock

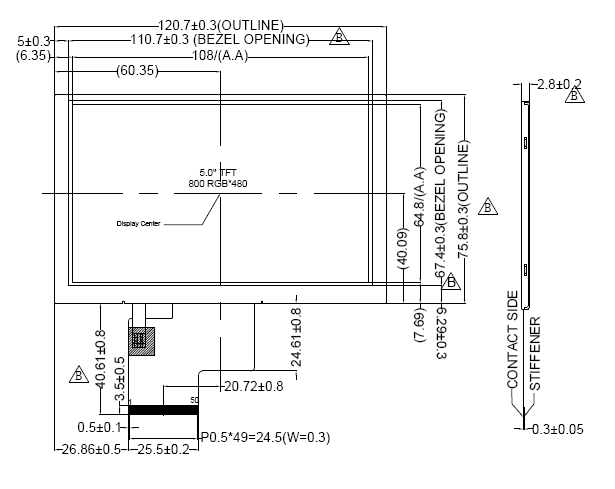

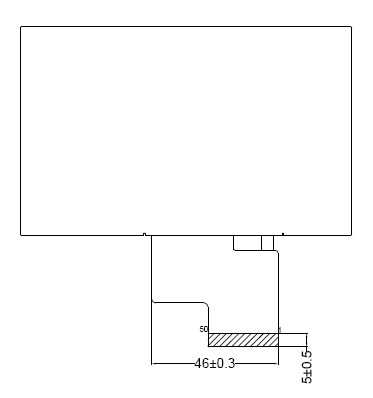

Module Outline	120.7 (H) x75.8(V) x2.8(T)  (Note1 )	mm
Active Area	108 (H) x 64.8(V)	mm
Pixel Size	135 (H) x135(V)	um
Pixel Arrangement	R.G.B Vertical Stripe
Polarizer SurfaceTreatment	Anti-Glare
Display Colors	16.7M
Interface	24-bitRGB interface
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	55	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
 3.  Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	DVDD	-0.3	5.0	V
	AVDD	-0.5	13.5	V
	VGH	-0.3	42	V
	VGL	-20	0.3	V
Storage temperature	TSTG	-30	+80	ºC
Operating temperature	TOP	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4. DC Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VDD	3.0	3.3	3.6	V
	AVDD	10.2	10.4	10.6	V
	VGH	15.3	16.0	16.7	V
	VGL	-6.7	-6.0	-5.3	V
Digital Supply Current(Black Pattern)	IAVDD	-	25	-	mA
	IVGH	-	470	-	uA
	IVGL	-	-490	-	uA
Input signal voltage	VCOM	3.09	4.09	5.09	V
Logic Low input voltage	VIL	0	-	0.3*DVDD	V
Logic High input voltage	VIH	0.7*DVDD	-	DVDD	V

Note 1: Be sure to apply DVDD and VGL to the LCD first, and then apply VGH.
Note 2: DVDD setting should match the signals output voltage (refer to Note 3) of customer’s system board.
Note 3: DCLK,HS,VS,RESET,U/D,L/R,DE,R0~R7,G0~G7,B0~B7,MODE,DITHB.
Note 4: Typical VCOM is only a reference value. It must be optimized according to each LCM. Please use VR and base on below application circuit.

5. Backlight Characteristics

5.1. BacklightCharacteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
BacklightVoltage	VLED	Ta=25ºC,IF=20mA/LED	17	21.7	22	V
BacklightCurrent	ILED	Ta=25ºC, VF=3.1V/LED	-	40	-	mA
Power dissipation	PD		-	868	-	mW
Uniformity	Avg		70	75	-	%
Drive method	Constant current
LEDConfiguration	12White LEDs(6 LEDs in one string and 2 groups in parallel)
