T035240320-A1WMN-001 (3.5 inch 240*320 dots Mono TFT)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices

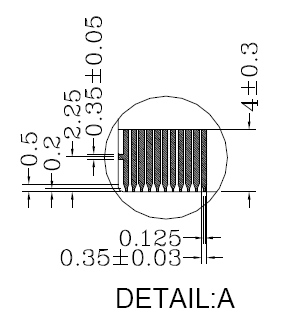

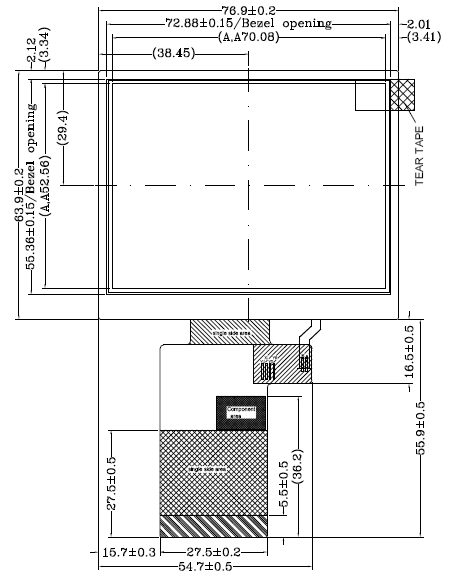

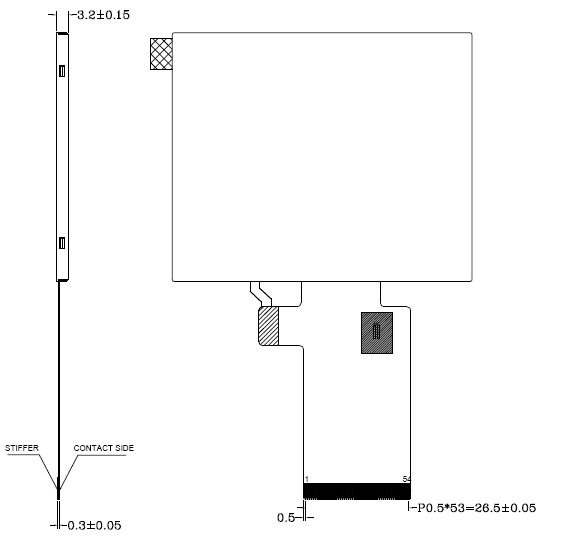

  • Dimensions
  • photo
  • Reviews

Module Parameter

Features Details Unit
Display Size(Diagonal) 3.5”
Display Mode Transmissive/ Normally Black/ VA
Resolution 240x320 Pixels
View Direction WIDE VIEW Best Image
Module Outline 61.3(H) x82.7(V) x 2.7(T)  (Note1 ) mm
Active Area 53.28 (H) x71.04(V) mm
Pixel Pitch 222(H) x222(V) um
Pixel Arrangement Mono Stripe
Interface 8-bit 8080 Interface
Driver IC ST7511 -
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight 30 g
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.

1. General Description
    The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics and a backlight unit.

2. Module Parameter

Features Details Unit
Display Size(Diagonal) 3.5”
Display Mode Transmissive/ Normally Black/ VA
Resolution 240x320 Pixels
View Direction WIDE VIEW Best Image
Module Outline 61.3(H) x82.7(V) x 2.7(T)  (Note1 ) mm
Active Area 53.28 (H) x71.04(V) mm
Pixel Pitch 222(H) x222(V) um
Pixel Arrangement Mono Stripe
Interface 8-bit 8080 Interface
Driver IC ST7511 -
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight 30 g
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
 3. Absolute Maximum Ratings
 VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage VDD 2.7 5.5 V
Storage temperature Tstg -30 +80 ºC
Operating temperature Top -20 +70 ºC
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4. DC Characteristics
Item Symbol Min. Typ. Max. Unit
Supply Voltage VDD 3.0 3.3 5.0 V
Logic Low input voltage VIL GND - 0.2*VDD V
Logic High input voltage VIH 0.8*VDD - VDD V
Logic Low output voltage VOL GND - 0.2*VDD V
Logic High output voltage VOH 0.8*VDD - VDD V
Current Consumption
All White
Logic ICC+IIN - 20 50 mA
Analog

 5. Backlight Characteristic

5.1.   Backlight Characteristic

Item Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF Ta=25ºC,IF=20mA/LED - 25.6 - V
Forward Current IF Ta=25ºC, VF=3.2V/LED - 20 - mA
Power dissipation PD - - 512 - mW
Uniformity Avg - 75 80 - %
LED working life(25℃) -   - 30,000 - Hrs
Drive method Constant current
LEDConfiguration 8 White LEDsin series
Note1:LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA
