Module Parameter

Features	Details	Unit
Display Size(Diagonal)	9.0”
LCD type	TN TFT
Display Mode	Transmissive/normally white
Resolution	1024x(RGB)x105	Pixels
View Direction	12 O’CLOCK	Best Image
Gray scale inversion direction	6 O’CLOCK

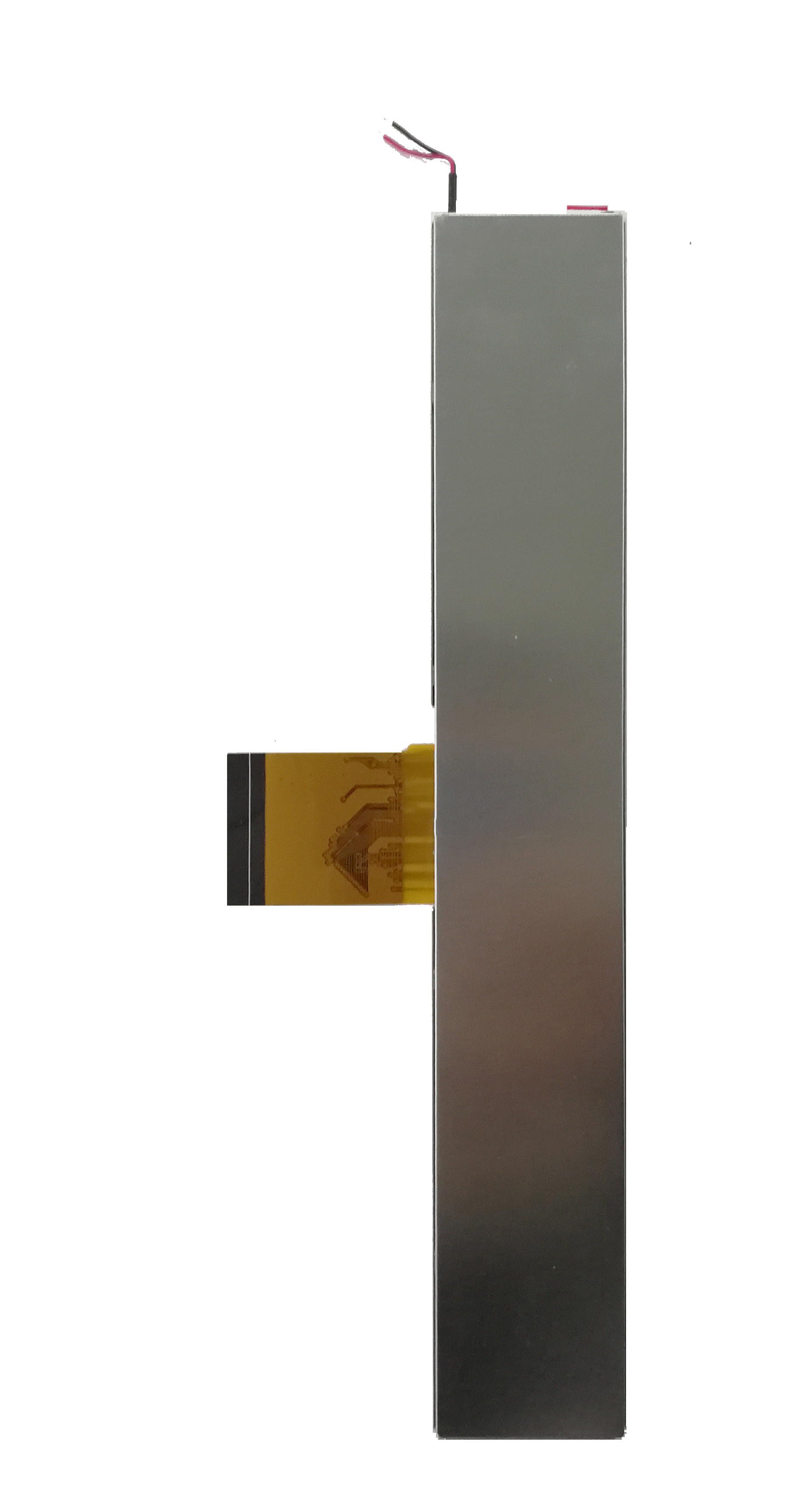

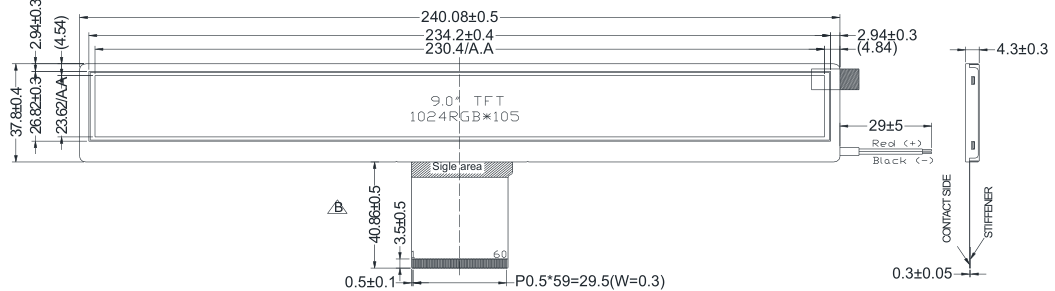

Module Outline	240.08 (H) x37.8 (V) x 4.3 (T) (Note1 )	mm
Active Area	230.4 (H) x23.62(V)	mm
Pixel Size	225 (H)x 225 (V)	um
Pixel Arrangement	R.G.B. Vertical Stripe
Polarizer Surface Treatment	Anti-Glare
Display Colors	16.7M
Interface	24 bit RGB Interface
Driver IC	ILI6150 & ILI5120
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	80	g

Note 1: Exclusive hooks, posts, FFC/FPC tail, PCB etc.

1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.

2. Module Parameter

Features	Details	Unit
Display Size(Diagonal)	9.0”
LCD type	TN TFT
Display Mode	Transmissive/normally white
Resolution	1024x(RGB)x105	Pixels
View Direction	12 O’CLOCK	Best Image
Gray scale inversion direction	6 O’CLOCK
Module Outline	240.08 (H) x37.8 (V) x 4.3 (T) (Note1 )	mm
Active Area	230.4 (H) x23.62(V)	mm
Pixel Size	225 (H)x 225 (V)	um
Pixel Arrangement	R.G.B. Vertical Stripe
Polarizer Surface Treatment	Anti-Glare
Display Colors	16.7M
Interface	24 bit RGB Interface
Driver IC	ILI6150 & ILI5120
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	80	g

Note 1: Exclusive hooks, posts, FFC/FPC tail, PCB etc.
3. Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VDD	-0.5	5.0	V
Storage temperature	Tstg	-30	+80	ºC
Operating temperature	Top	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VDD	2.3	3.3	3.6	V
	AVDD	-	(12)	-	V
	VGH	-	(18)	-	V
	VGL	-	(-7)	-	V
	VCOM	-	(6.0)	-	V
Logic Low input voltage	V_IL	0	-	0.3*VDD	V
Logic High input voltage	V_IH	0.7*VDD	-	VDD	V
Logic Lowoutput voltage	V_O_L	-	-	0GND+0.4	V
Logic High output voltage	V_OH	VDD-0.4	-	-	V
Current ConsumptionAll Black	ICC₊IIN	-	280	-	mA

5. Backlight Characteristic

5.1. Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,I_F=20mA/LED	23.2	25.6	26.4	V
Forward Current	IF	Ta=25ºC, V_F=3.2V/LED	-	60	-	mA
Power dissipation	PD		-	1536	-	mW
Uniformity	Avg		80	-	-	%
Drive method	Constant current
LEDConfiguration	24White LEDs(8 LEDs in one string and 3 groups in parallel)
