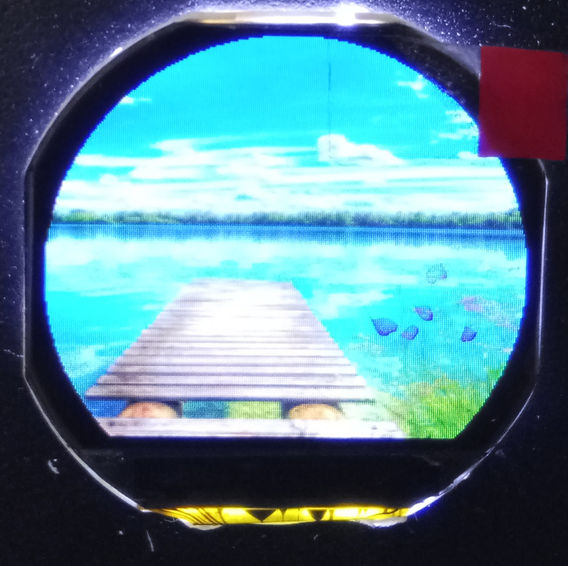

T012240204-A1WMN-001 (1.2 inch 240*204 dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices
  • Dimensions
  • photo
  • Reviews

Module Parameter

Features Details Unit
Display Size(Diagonal) 1.2”
LCD type IPS TFT
Display Mode Transmissive/Normal black
Resolution 240RGB x204 Pixels
View Direction FULL VIEW Best Image

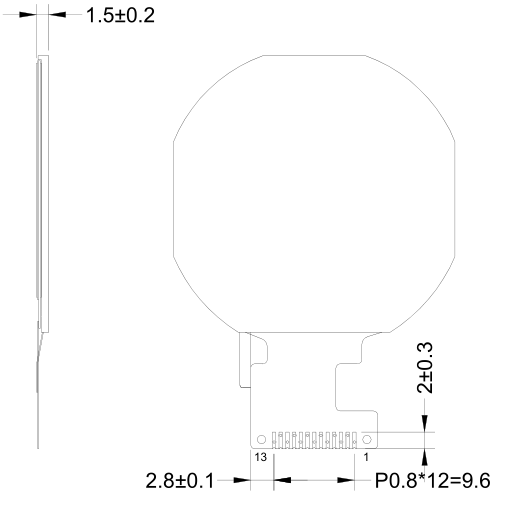

Module Outline 33.27(H) x33.02(V) x 1.5(T) (Note1 ) mm
Active Area 30.94(H) x 26.32(V) mm
Pixel Size 129(H) x129(V) um
Pixel Arrangement RGB vertical stripe
Display Colors 262K
Interface 4-wire SPI Interface
Driver IC ST7789V -
With or without touch panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.



1.      General Description

       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver IC and a backlight unit.


2.      Module Parameter

Features Details Unit
Display Size(Diagonal) 1.2”
LCD type IPS TFT
Display Mode Transmissive/Normal black
Resolution 240RGB x204 Pixels
View Direction FULL VIEW Best Image

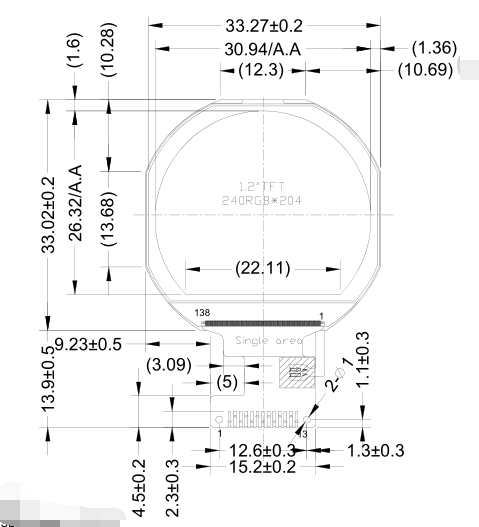

Module Outline 33.27(H) x33.02(V) x 1.5(T) (Note1 ) mm
Active Area 30.94(H) x 26.32(V) mm
Pixel Size 129(H) x129(V) um
Pixel Arrangement RGB vertical stripe
Display Colors 262K
Interface 4-wire SPI Interface
Driver IC ST7789V -
With or without touch panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight TBD g
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.



3.      Absolute Maximum Ratings

VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage VCC -0.3 4.6 V
Supply Voltage(Logic) IOVCC -0.3 4.6 V
Storage temperature Tstg -30 +80 ºC
Operating temperature Top -20 +70 ºC
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.


4.      DC Characteristics

Item Symbol Min. Typ. Max. Unit
Supply Voltage VCC 2.4 2.8 3.3 V
IOVCC 1.65 1.8 3.3 V
Logic Low input voltage VIL GND - 0.3*IOVCC V
Logic High input voltage VIH 0.7* IOVCC - IOVCC V
Logic Low output voltage VOL GND - 0.2* IOVCC V
Logic High output voltage VOH 0.8* IOVCC - IOVCC V
Current Consumption
Normal white
ICC - TBD - mA





5.      Backlight Characteristic

5.1.     BacklightCharacteristics

Item Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF Ta=25ºC,IF=20mA/LED 2.8 3.2 3.4 V
Forward Current IF Ta=25ºC, VF=3.2V/LED - 40 - mA
Power dissipation Pd   - 128 - mW
Uniformity Avg   - 80 - %
Drive method Constant current
LEDConfiguration 2 White LEDs in parallel
