1.      General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICsand a backlight unit.

 2. Module Parameter

Features	Details	Unit
Display Size(Diagonal)	9.0”
LCD type	TN TFT
Display Mode	Transmissive/Normally white
Resolution	1024RGB x600	Pixels
View Direction	10:30 o’clock	Best Image
Gray scale inversion direction	4:30 o’clock

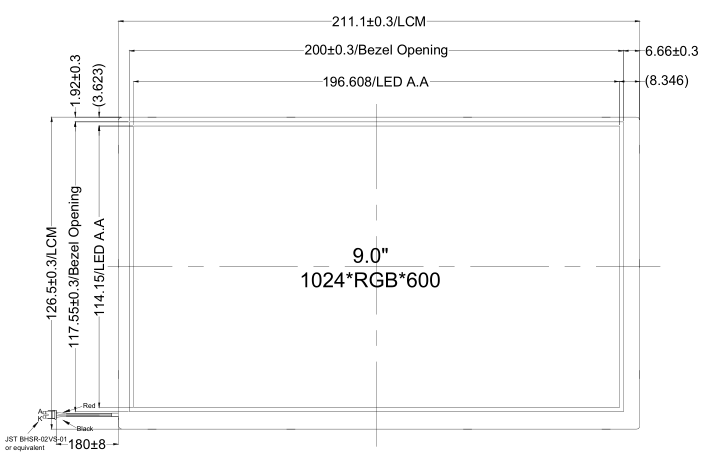

Module Outline	211.1(H) x126.5(V) x5.6(T) (Note1 )	mm
Active Area	196.608(H) x 114.15 (V)	mm
Pixel Pitch	192(H) x 190.25 (V)	um
Pixel Arrangement	Stripe RGB
Polarizer Surface Treatment	Anti-glare
Display Colors	16.7 M
Interface	LVDS Interface
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
 3. Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	DVDD	-0.5	3.96	V
	AVDD	-0.5	14.85
Storage temperature	TSTG	-30	+80	ºC
Operating temperature	TOP	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4. DC Characteristics

Item		Symbol	Min.	Typ.	Max.	Unit	Remark
Supply Voltage		DVDD	2.3	-	3.6	V
		AVDD	(9)	(9.2)	(9.4)	V
		VGH	17	18	19	V
		VGL	-7	-6	-5	V
		VCOM	3.21	3.41	3.61	V	NOTE 1
Differential input threshold voltage	High	RxVTH	-	-	0.1	V
	Low	RxVTL	-0.1	-	-	V
Input voltage range(singled-end)		RxVIN	0	-	DVDD-1.2+ |Vid|/2	V
Differential input voltage		|Vid|	0.2	-	0.6	V

Note 1: Typ. VCOM is only a reference value, it must be optimized according to each LCM. Be sure to use VR
 5. Backlight Characteristic

5.1.   Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=20mA/LED	8.4	9.6	10.2	V
Forward Current	IF	Ta=25ºC, VF=3.2V/LED	-	180	-	mA
Power dissipation	PD			1728		mW
Uniformity	Avg		70	-	-	%
Drive method	Constant current
LEDConfiguration	27 White LEDs (3 LEDs in string and 9 groups in parallel)
