Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
9.0” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1280RGB x720 |
Pixels |
| View Direction |
FULL View |
Best Image |
| Module Outline |
214.7(H) x122.8(V) x6.4(T) (Note1 ) |
mm |
| Active Area |
201.6(H) x108(V) |
mm |
| Pixel Pitch |
157.5(H) x150(V) |
um |
| Pixel Arrangement |
RGB 2domain stripe |
|
| Display Colors |
16.7M |
|
| Interface |
LVDS Interface |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-40～85 |
ºC |
| Weight |
(277) |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
9.0” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1280RGB x720 |
Pixels |
| View Direction |
FULL View |
Best Image |

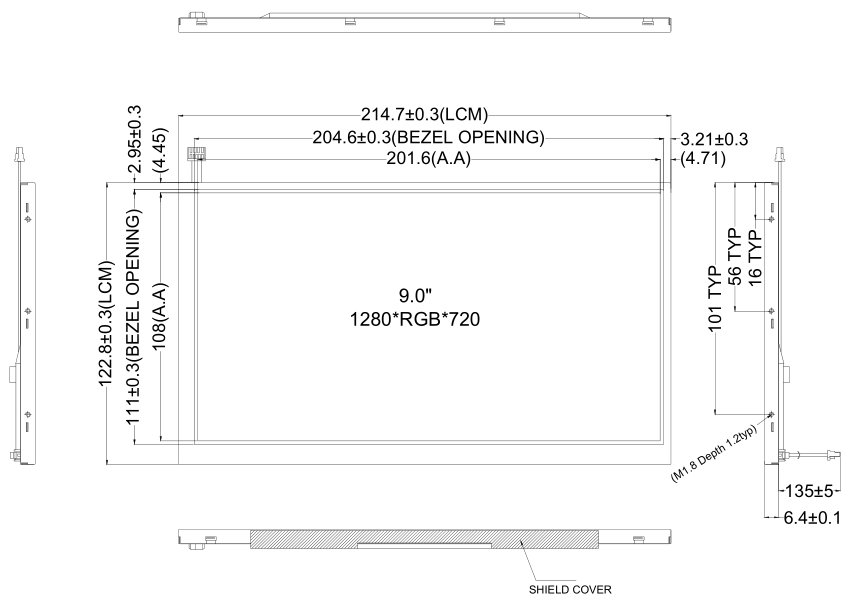

| Module Outline |
214.7(H) x122.8(V) x6.4(T) (Note1 ) |
mm |
| Active Area |
201.6(H) x108(V) |
mm |
| Pixel Pitch |
157.5(H) x150(V) |
um |
| Pixel Arrangement |
RGB 2domain stripe |
|
| Display Colors |
16.7M |
|
| Interface |
LVDS Interface |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-40～85 |
ºC |
| Weight |
(277) |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Digital Supply Voltage |
VCC |
-0.3 |
4.0 |
V |
| Storage temperature |
TSTG |
-40 |
85 |
ºC |
| Operating temperature |
TOP |
-20 |
70 |
ºC |
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
VDD |
3 |
3.3 |
3.6 |
V |
| Differential input high threshold voltage |
VLVTH |
(100) |
- |
(300) |
mV |
| Differential input low threshold voltage |
VLVTL |
(-300) |
- |
(-100) |
mV |
urrent Consumption
All White |
Logic |
ICC+IIN |
- |
- |
200 |
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=52mA/LED |
22.4 |
25.6 |
27.2 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
|
156 |
|
mA |
| Power dissipation |
PD |
- |
3.5 |
4.0 |
4.25 |
W |
| Uniformity |
Avg |
- |
70 |
- |
- |
% |
| Drive method |
Constant current |

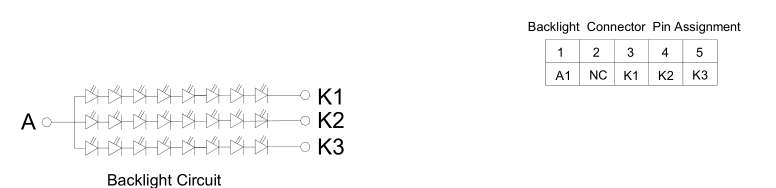

| LEDConfiguration |
24 White LEDs( 8 LEDsin one stringand 3groups in parallel) |
