Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
10.1” |
|
| LCD type |
IPSTFT |
|
| Display Mode |
Transmissive/ Normally Black |
|
| Resolution |
1280RGB x800 |
Pixels |
| View Direction |
FULL VIEWING |
Best Image |

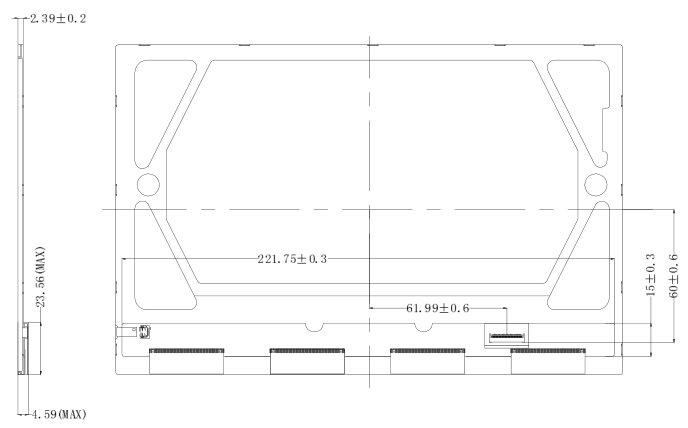

| Module Outline |
229.46 (H) x149.1(V) x2.5(T) (Note1 ) |
mm |
| Active Area |
216.96 (H) x 135.6(V) |
mm |
| Pixel Size |
169.5 (H) x169.5(V) |
um |
| Pixel Arrangement |
RGB Vertical Stripe |
|
| Surface treatment |
Hard coating(3H) |
|
| Display Colors |
16.7M |
|
| Interface |
8 bits-LVDS interface |
|
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
182 |
g |
Note 1: Exclusive hooks, posts , FFC/FPC tail etc.
1.General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
2.Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
10.1” |
|
| LCD type |
IPSTFT |
|
| Display Mode |
Transmissive/ Normally Black |
|
| Resolution |
1280RGB x800 |
Pixels |
| View Direction |
FULL VIEWING |
Best Image |
| Module Outline |
229.46 (H) x149.1(V) x2.5(T) (Note1 ) |
mm |
| Active Area |
216.96 (H) x 135.6(V) |
mm |
| Pixel Size |
169.5 (H) x169.5(V) |
um |
| Pixel Arrangement |
RGB Vertical Stripe |
|
| Surface treatment |
Hard coating(3H) |
|
| Display Colors |
16.7M |
|
| Interface |
8 bits-LVDS interface |
|
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-30～80 |
ºC |
| Weight |
182 |
g |
Note 1: Exclusive hooks, posts , FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
VDD |
-0.3 |
3.9 |
V |
| Storage temperature |
TSTG |
-30 |
+80 |
ºC |
| Operating temperature |
TOP |
-20 |
+70 |
ºC |
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4.DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage/current |
VDD |
3.0 |
3.3 |
3.6 |
V |
| Ivdd |
- |
(130) |
- |
mA |
| AVDD |
8.0 |
8.2 |
8.4 |
V |
| Iavdd |
- |
(55) |
- |
mA |
| VGH |
21.7 |
22 |
22.3 |
V |
| Ivgh |
- |
(310) |
- |
uA |
| VGL |
-7.3 |
-7 |
-6.7 |
V |
| Ivgl |
- |
(130) |
- |
uA |
| VCOM |
3.0 |
3.3 |
3.6 |
V |
| Ivcom |
- |
(16) |
- |
mA |
| Input logic high voltage |
VIH |
0.8*VDD |
- |
VDD |
V |
| Input logic low voltage |
VIL |
0 |
- |
0.2*VDD |
V |
Note: Typical VCOM is only a reference value, it must be optimized according to each LCM. Be sure to use VR.
5.Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=20mA/LED |
8.4 |
9 |
11 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.0V/LED |
|
260 |
|
mA |
| Power dissipation |
PD |
|
|
2340 |
|
W |
| Uniformity |
Avg |
|
70 |
80 |
- |
% |
| LED working life(25℃) |
- |
|
20000 |
30000 |
- |
Hrs |
| Drive method |
Constant current |

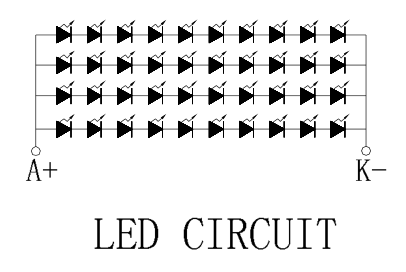

| LEDConfiguration |
39White LEDs(3 LEDs in one string and 13 groups in parallel) |
Note：LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA.
