Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
11.45” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1280RGB x720 |
Pixels |
| View Direction |
FULL View |
Best Image |

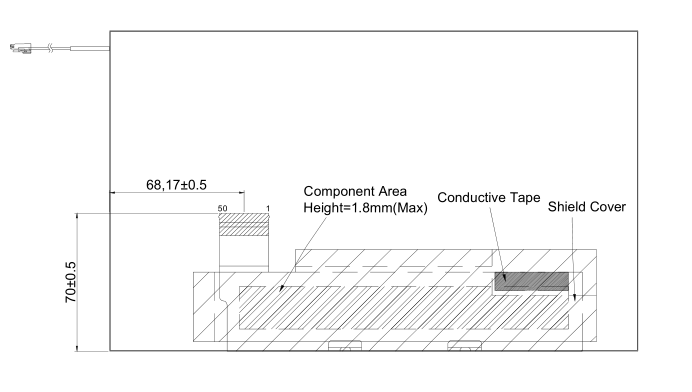

| Module Outline |
268(H) x162.5(V) x5.7(T) (Note1 ) |
mm |
| Active Area |
253.44(H) x142.56(V) |
mm |
| Pixel Pitch |
198(H) x198(V) |
um |
| Pixel Arrangement |
RGB 2domain stripe |
|
| Display Colors |
16.7M |
|
| Interface |
LVDS Interface |
|
| Driver IC |
HX8292-A & HX8695-E |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-40～85 |
ºC |
| Weight |
(444) |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc. .
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
11.45” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1280RGB x720 |
Pixels |
| View Direction |
FULL View |
Best Image |
| Module Outline |
268(H) x162.5(V) x5.7(T) (Note1 ) |
mm |
| Active Area |
253.44(H) x142.56(V) |
mm |
| Pixel Pitch |
198(H) x198(V) |
um |
| Pixel Arrangement |
RGB 2domain stripe |
|
| Display Colors |
16.7M |
|
| Interface |
LVDS Interface |
|
| Driver IC |
HX8292-A & HX8695-E |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
-20～70 |
ºC |
| Storage Temperature |
-40～85 |
ºC |
| Weight |
(444) |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Digital Supply Voltage |
VCC |
-0.1 |
3.96 |
V |
| Storage temperature |
TSTG |
-40 |
85 |
ºC |
| Operating temperature |
TOP |
-20 |
70 |
ºC |
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
VDD |
3 |
3.3 |
3.6 |
V |
| AVDD |
11.5 |
11.55 |
11.6 |
V |
| VGH |
16.9 |
18 |
19 |
V |
| VGL |
-8 |
-9 |
-10 |
V |
| Differential input high threshold voltage |
VLVTH |
100 |
- |
300 |
mV |
| Differential input low threshold voltage |
VLVTL |
-300 |
- |
-100 |
mV |
urrent Consumption
All White |
Logic |
ICC+IIN |
- |
42 |
90 |
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=60mA/LED |
22.4 |
25.6 |
27.2 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
|
240 |
|
mA |
| Power dissipation |
PD |
- |
|
6.15 |
|
W |
| Uniformity |
Avg |
- |
70 |
- |
- |
% |
| Drive method |
Constant current |

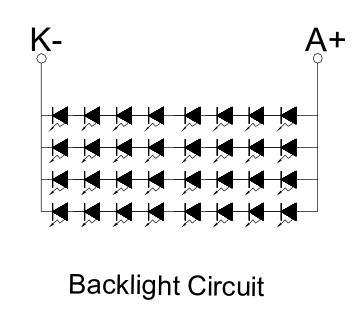

| LEDConfiguration |
32 White LEDs( 8 LEDsin one stringand 4groups in parallel) |
