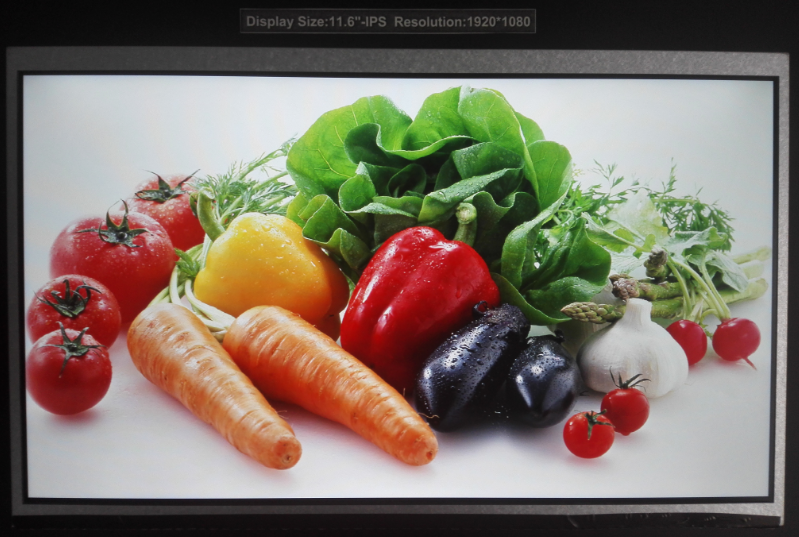

Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
11.6” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1920RGB x1080 |
Pixels |
| View Direction |
FULL View |
Best Image |
| Module Outline |
267.9(H) x168.2(V) x2.8(T) (Note1 ) |
mm |
| Active Area |
256.32(H) x144.18(V) |
mm |
| Pixel Pitch |
133.5(H) x133.5(V) |
um |
| Pixel Arrangement |
RGB Vertical stripe |
|
| Surface treatment |
Antiglare |
|
| Display Colors |
16M |
|
| Interface |
EPD Interface |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
-10～60 |
ºC |
| Storage Temperature |
-20～70 |
ºC |
| Weight |
TBD |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
2.Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
11.6” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1920RGB x1080 |
Pixels |
| View Direction |
FULL View |
Best Image |
| Module Outline |
267.9(H) x168.2(V) x2.8(T) (Note1 ) |
mm |
| Active Area |
256.32(H) x144.18(V) |
mm |
| Pixel Pitch |
133.5(H) x133.5(V) |
um |
| Pixel Arrangement |
RGB Vertical stripe |
|
| Surface treatment |
Antiglare |
|
| Display Colors |
16M |
|
| Interface |
EPD Interface |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
-10～60 |
ºC |
| Storage Temperature |
-20～70 |
ºC |
| Weight |
TBD |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Digital Supply Voltage |
LCD_VDD |
-0.3 |
4.0 |
V |
| Storage temperature |
TSTG |
-20 |
70 |
ºC |
| Operating temperature |
TOP |
-10 |
60 |
ºC |
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
LCD_VDD |
3 |
3.3 |
3.6 |
V |
HPD High level output voltage
|
VOHHPD |
|
LCD_VDD-0.1 |
|
V |
HPD Low level output voltage
|
VOLHPD |
|
0 |
|
V |
urrent Consumption
All White |
Logic |
ICC+IIN |
- |
(212) |
(364) |
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight driving electrical Characteristic
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
| Supply Voltage |
VBL |
7 |
12 |
21 |
V |
|
| Current dissipation |
IBL |
- |
(227) |
- |
mA |
VBL=12V |
| Modulated light signal voltage |
VPWMH |
1.85 |
- |
VDD |
V |
BL_PWM_DIM |
| VPWML |
0 |
- |
0.7 |
V |
| Brightness control duty ratio |
Duty |
1 |
- |
100 |
% |
|
| Brightness control pulse width |
fPWM |
200 |
- |
2000 |
Hz |
|
| LED-BL ON/OFF high voltage |
VCNTH |
1.8 |
3.3 |
3.6 |
V |
Note1 |
| LED-BL ON/OFF low voltage |
VCNTL |
0 |
- |
0.5 |
V |
Note1 |
Note1：BL_ENABLE : high=BL turn on , low or open=BL turn off
