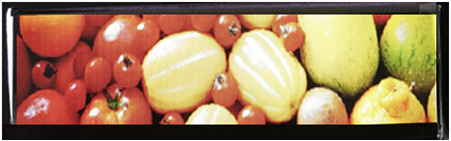

1. General Description
       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.

 2. Module Parameter

Features	Details	Unit
Display Size(Diagonal)	12.3”
Display Mode	Transmissive /Normally Black
Resolution	1920(H)RGB × 720(V)	Pixels
View Direction	FULL VIEW	Best Image
Module Outline	307.9(H) × 130.27(V) × 7.6(T)  (Note1 )	mm
Active Area	292.032(H) × 109.512(V)	mm
Pixel Pitch	152.1(H) × 152.1(V)	um
Pixel Arrangement	RGB 2domain stripe
Display Colors	16.7M
Interface	LVDS
With or without the touch panel	Without
Operating Temperature	-30～85	ºC
Storage Temperature	-40～90	ºC
Weight	520±50	g

Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
 3.  Absolute Maximum Ratings
                                                                      V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Power Supply Voltage	VDD	-0.3	3.96	V
Storage temperature	TSTG	-40	90	ºC
Operating temperature	TOP	-30	85	ºC

Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
 4. DC Characteristics

Item		Symbol	Min.	Typ.	Max.	Unit
Supply Voltage		VDD	3.0	3.3	3.6	V
TFT Gate ON Voltage		VGH	-		-	V
TFT Gate OFF Voltage		VGL	-		-	V
Current Consumption All White	Logic	ICC+IIN		420	550	mA
	Analog


 5. Backlight Characteristic

5.1.   Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC, IF=80mA/LED	2.7*9	3.1*9	3.4*9	V
Forward Current	IF	Ta=25ºC, VF=3.1V/LED	-	320	-	mA
Power dissipation	PD	-	7800	8900	9800	mW
Uniformity	Avg	-	75	-	-	%
LED life time(25℃)	-		50000			hrs
Drive method	Constant current
LEDConfiguration	36 White LEDs( 9 LEDsin one stringand 4groups in parallel)

Note1：LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, I_F=80mA
