1.General Description

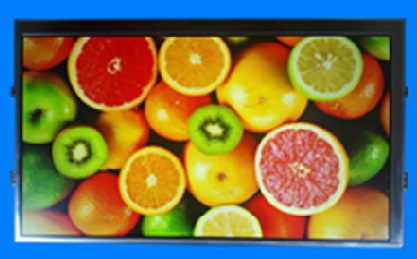

       The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs, and a backlight unit.

2.Module Parameter

Features	Details	Unit
Display Size(Diagonal)	12.8”
Display Mode	Transmissive/Normally Black
Resolution	1280RGB x720	Pixels
View Direction	FULL VIEW	Best Image

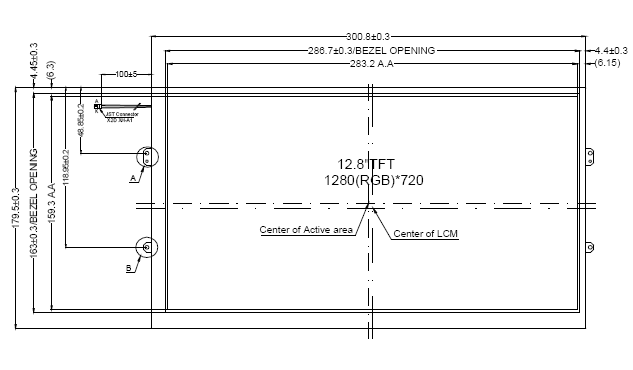

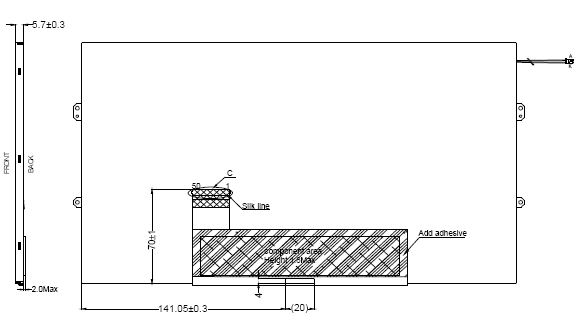

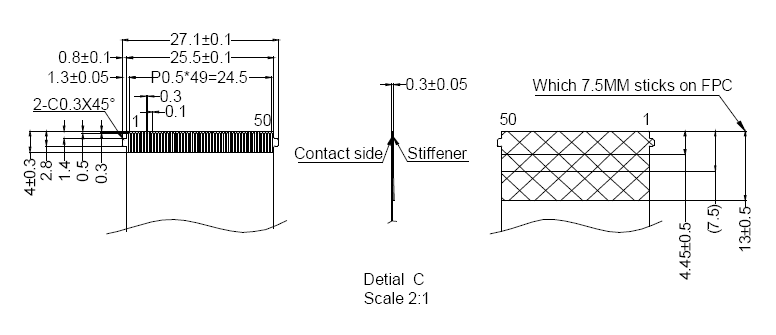

Module Outline	300.8(H) x179.5(V) x5.7(T) (Note1 )	mm
Active Area	283.2(H) x159.3(V)	mm
Pixel Pitch	221.25(H) x221.25(V)	um
Pixel Arrangement	RGB 2 domain Stripe
Polarizer Surface Treatment	Anti-Glare
Display Colors	16.7 M
Interface	6bits/8bits LVDS Interface
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-40～85	ºC
Weight	TBD	g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
 3.Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	-0.3	3.6	V
Storage temperature	TSTG	-40	+85	ºC
Operating temperature	TOP	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
    4.DC Characteristics

Item		Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	Logic	VCC	3	3.3	3.6	V
	Analog	AVDD	-	11.5	-	V
Gate On Voltage		VGH	-	25	-	V
Gate Off Voltage		VGL	-	-9	-	V
Common Voltage		VCOM	-	4.8	-	V

Note 1: Typ. VCOM is only a reference value, it must be optimized according to each LCM. Be sure to use VR
 5.Backlight Characteristic

5.1.Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=50mA/LED	11.6	12.4	13.2	V
Forward Current	IF	Ta=25ºC, VF=3.1/LED	-	500	-	mA
Power dissipation	PD		-	6200	-	mW
Uniformity	Avg		70	75	-	%
Drive method	Constant current
LEDConfiguration	40 White LEDs (4 LEDs in string and 10 groups in parallel)
