Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
13.3” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1920RGB x1080 |
Pixels |
| View Direction |
FULL View |
Best Image |
| Module Outline |
307.6(H) x183(V) x5.5(T) (Note1 ) |
mm |
| Active Area |
293.76(H) x165.24(V) |
mm |
| Pixel Pitch |
153(H) x153(V) |
um |
| Pixel Arrangement |
RGB Vertical stripe |
|
| Surface treatment |
Antiglare |
|
| Display Colors |
16M |
|
| Interface |
EPD Interface |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
0～50 |
ºC |
| Storage Temperature |
-10～60 |
ºC |
| Weight |
TBD |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs and a backlight unit.
2.Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
13.3” |
|
| Display Mode |
Transmissive/Normally black |
|
| Resolution |
1920RGB x1080 |
Pixels |
| View Direction |
FULL View |
Best Image |

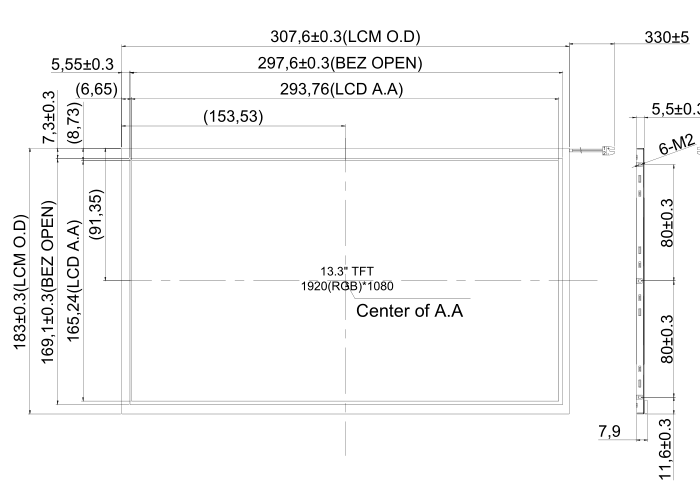

| Module Outline |
307.6(H) x183(V) x5.5(T) (Note1 ) |
mm |
| Active Area |
293.76(H) x165.24(V) |
mm |
| Pixel Pitch |
153(H) x153(V) |
um |
| Pixel Arrangement |
RGB Vertical stripe |
|
| Surface treatment |
Antiglare |
|
| Display Colors |
16M |
|
| Interface |
EPD Interface |
|
| With or without the touch panel |
Without |
|
| Operating Temperature |
0～50 |
ºC |
| Storage Temperature |
-10～60 |
ºC |
| Weight |
TBD |
g |
Note 1: Inclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Digital Supply Voltage |
VCC |
-0.3 |
4.0 |
V |
| Storage temperature |
TSTG |
-10 |
60 |
ºC |
| Operating temperature |
TOP |
0 |
50 |
ºC |
Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Supply Voltage |
VCCS |
3 |
3.3 |
3.6 |
V |
urrent Consumption
All White |
Logic |
ICC+IIN |
- |
TBD |
- |
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=40mA/LED |
- |
9.6 |
11 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=3.2V/LED |
|
680 |
850 |
mA |
| Power dissipation |
PD |
- |
|
6528 |
|
W |
| Uniformity |
Avg |
- |
70 |
- |
- |
% |
| Drive method |
Constant current |
| LEDConfiguration |
51 White LEDs( 3 LEDsin one stringand 17groups in parallel) |
