Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
15.6” |
|
| LCD type |
IPS TFT |
|
| Display Mode |
Transmissive/Normally Black |
|
| Resolution |
1920RGB x1080 |
Pixels |
| View Direction |
FULL VIEW |
Best Image |
| Module Outline |
359.5(H) x217.5(V) x3.2(T) (Note1 ) |
mm |
| Active Area |
344.16(H) x193.59(V) |
mm |
| Pixel Size |
179.25(H) x179.25(V) |
um |
| Display Colors |
16.7 M |
|
| Interface |
eDP interface |
|
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
0～50 |
ºC |
| Storage Temperature |
-20～60 |
ºC |
| Weight |
TBD |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc. .
1. General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver ICs, and a backlight unit.
2. Module Parameter
| Features |
Details |
Unit |
| Display Size(Diagonal) |
15.6” |
|
| LCD type |
IPS TFT |
|
| Display Mode |
Transmissive/Normally Black |
|
| Resolution |
1920RGB x1080 |
Pixels |
| View Direction |
FULL VIEW |
Best Image |

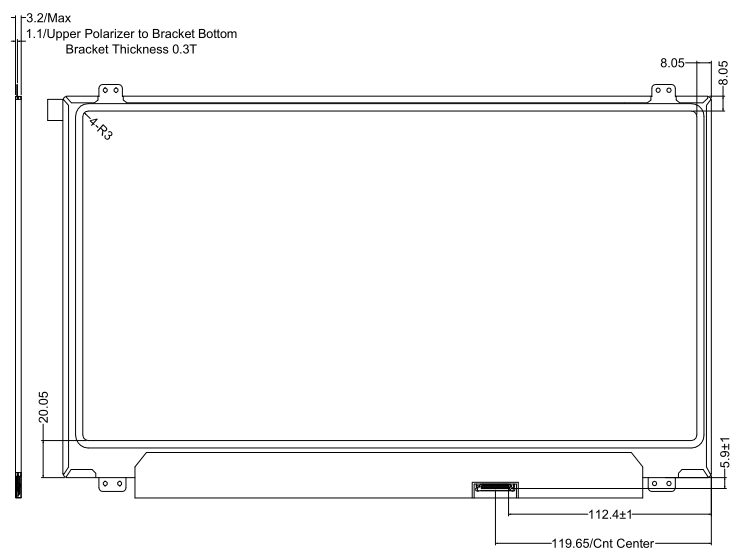

| Module Outline |
359.5(H) x217.5(V) x3.2(T) (Note1 ) |
mm |
| Active Area |
344.16(H) x193.59(V) |
mm |
| Pixel Size |
179.25(H) x179.25(V) |
um |
| Display Colors |
16.7 M |
|

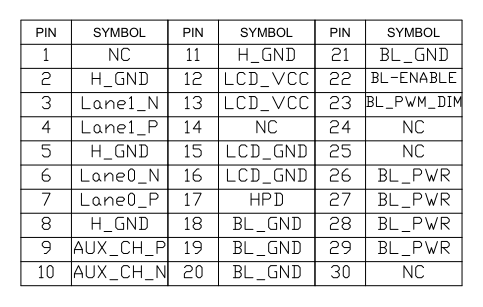

| Interface |
eDP interface |
|
| With or Without Touch Panel |
Without |
|
| Operating Temperature |
0～50 |
ºC |
| Storage Temperature |
-20～60 |
ºC |
| Weight |
TBD |
g |
Note 1: Exclusive hooks, posts, FFC/FPC tail etc.
3. Absolute Maximum Ratings
V
SS=0V, Ta=25ºC
| Item |
Symbol |
Min. |
Max. |
Unit |
| Supply Voltage |
LCD_VCC |
-0.3 |
4.0 |
V |
| Storage temperature |
TSTG |
-20 |
+60 |
ºC |
| Operating temperature |
TOP |
0 |
+50 |
ºC |
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
4. DC Characteristics
| Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
| Digital Interface Supply Voltage |
LCD_VCC |
3.0 |
3.3 |
3.6 |
V |
Current Consumption
Normally White |
Logic |
ICC+IIN |
- |
(180) |
(290) |
mA |
| Analog |
5. Backlight Characteristic
5.1. Backlight Characteristic
| Item |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage |
VF |
Ta=25ºC,IF=180mA |
7.0 |
12.0 |
21.0 |
V |
| Forward Current |
IF |
Ta=25ºC, VF=12V |
- |
(180) |
- |
mA |
| Power dissipation |
PD |
|
- |
TBD |
- |
mW |
| LED working life(25℃) |
- |
|
- |
10,000 |
- |
Hrs |
| LEDConfiguration |
TBD |
Note: LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=180mA.
