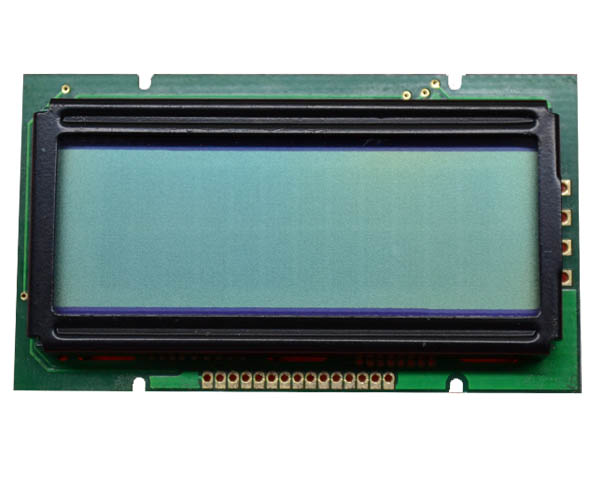

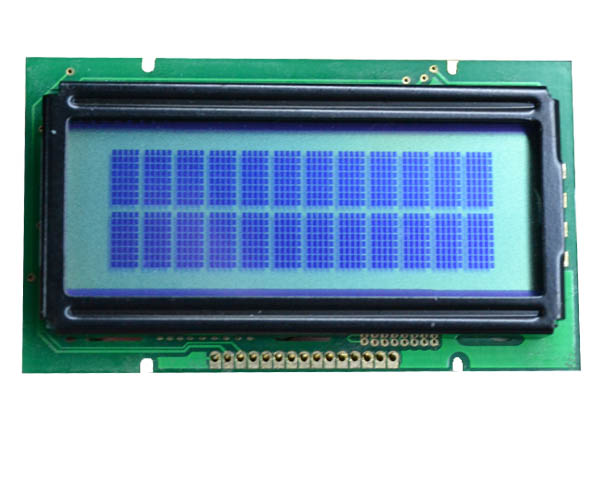

The features of LCD are showed as follows
* Display mode : STN/ Yellow-Green,Transflective/Positive
* ControllerIC : AIP31066(English-Japanese)
* Display format :12X2Characters
* Interface Input Data : 8 Bit
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 6 O’clock
* Backlight : LED/Yellow-Green
*Sample NO. :C1202A0SBX6B-A0
For reference only. For design purposes, please use the specifications in the datasheet.

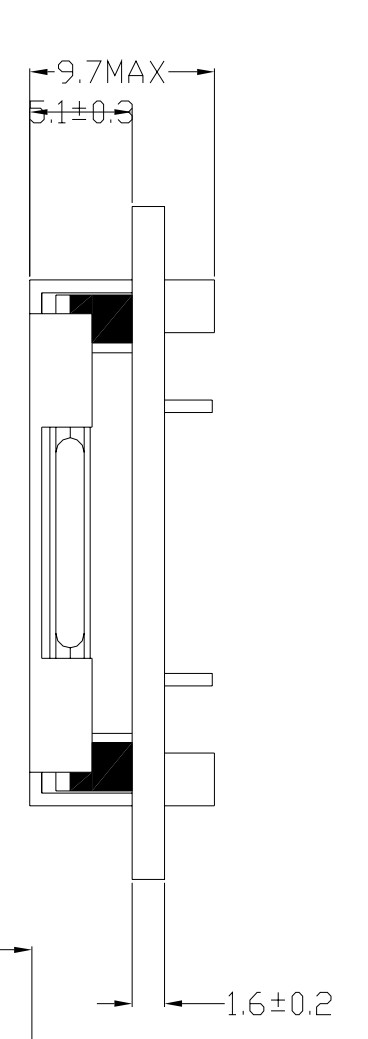

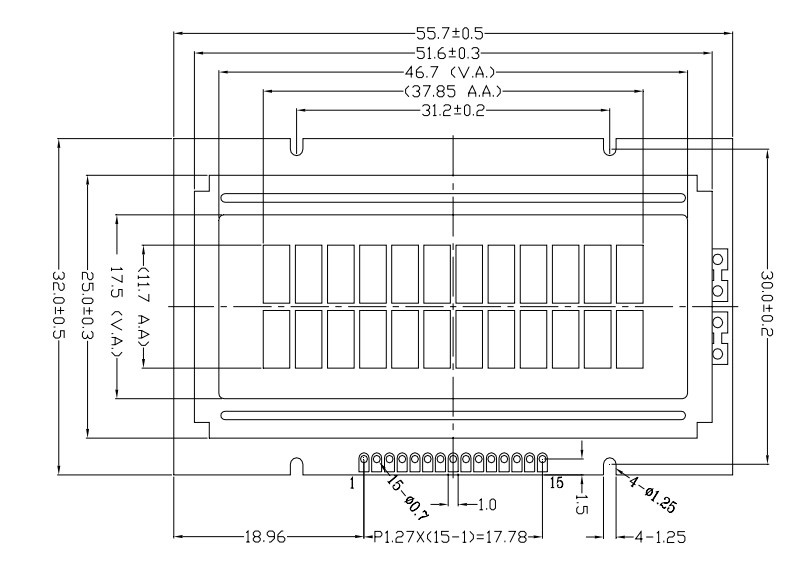

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
55.7 |
32 |
9.7 |
46.7 |
17.5 |
37.85 |
11.7 |
| inches |
2.19 |
1.26 |
0.38 |
1.84 |
0.69 |
1.49 |
0.46 |
| |

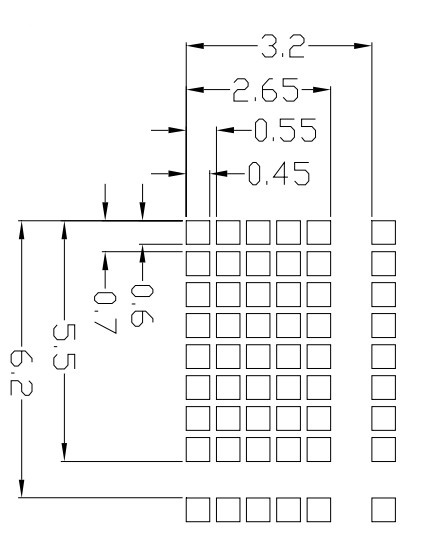

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
2.65 |
5.5 |
3.2 |
6.2 |
0.45 |
0.6 |
0.55 |
0.7 |
| inches |
0.10 |
0.22 |
0.13 |
0.24 |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Technology |
Display Addressing |
Glass Type/Glass Color |
Polarizer |
View Direction |
| LCD |
passive |
STN/Yellow-Green |
Transflective |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow~Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Logic(V) |
0~7.0 |
Logic supply Voltage(V) |
4.5~5.5 |
| Supply Voltage For LCD Drive(V) |
0~5.0 |
LCD Drive(V) |
3.7~4.3 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
1.8 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
