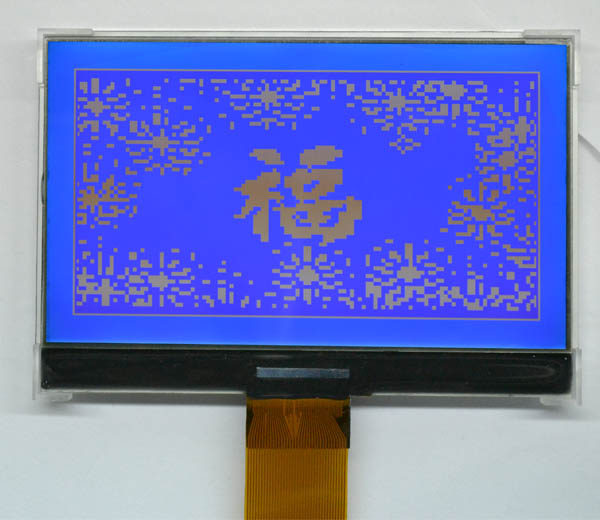

The features of LCD are showed as follows
* Display mode : STN/Blue/Transmissive/Negative
* Controller IC : ST7529(COG)
* Interface Input Data : 8080 serial ，4-line，6800 serial，3-line
* Display format : 240X 128Dots
* Driving Method : 1/144Duty, 1/12Bias
* Viewing Direction : 6 O’clock
* Backlight : LEDside/white
*Sample NO. : G2412C2SGW6G-01/20110127
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots |
240*128 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
98.7 |
67.7 |
5.7 |
92 |
53 |
83.97 |
44.78 |
| inches |
3.89 |
2.67 |
0.22 |
3.62 |
2.09 |
3.31 |
1.76 |
| |

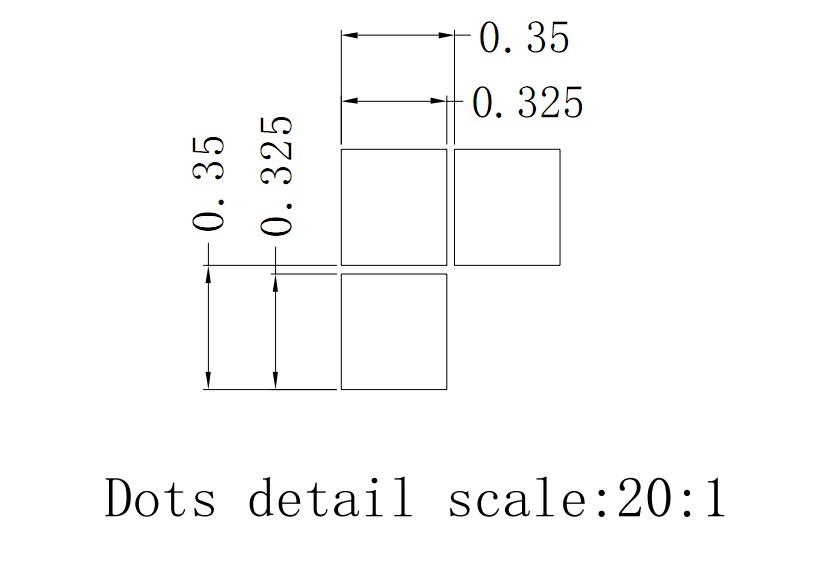

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.325 |
0.325 |
0.35 |
0.35 |
| inches |
0.013 |
0.013 |
0.014 |
0.014 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.5~4.0 |
Logic Supply Voltage（V） |
3.0 |
| Supply Voltage For LCD Drive(V) |
-0.5~20 |
LCD Drive（V） |
16.6 |
| Input Voltage(V) |
-0.5~VDD+0.5 |
Current Consumption(mA) |
2.5 |
| Backlight |
| Forward Current(mA) |
120 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
200 |
| Power Dissipation(mW) |
372 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics
| Interface |
8080 serial ，4-line，6800 serial，3-line |
