G2409A0SBX6G (240*96 Dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices
  • Dimensions
  • photo
  • Reviews

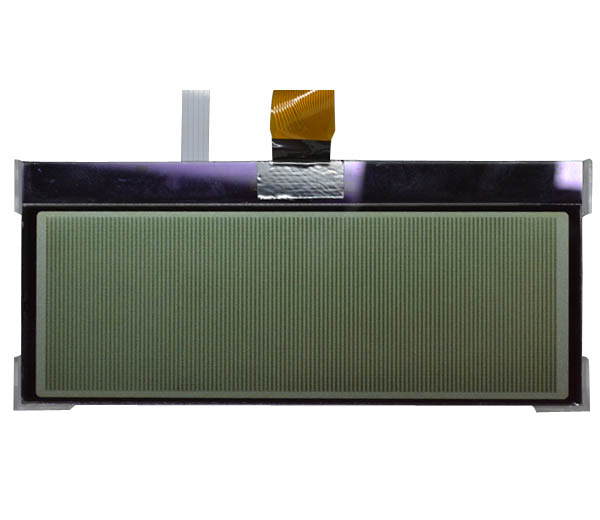

The features of LCD are as follows
* Display mode                        :STN/Yellow-Green/Transflective/Positive
* IC                                              : UC1608XGBE
* Interface Input Data             : 8 – Bits,4-Bits,SPI-3,SPI-4
* Driving Method                      : 1/96Duty, 1/11Bias
* Viewing Direction                  : 6 O’clock
* Backlight                                :LED /Super Y-G
*Sample NO                            :G2409A0SBX6G-B2_01/20101023

For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics



Column Dots x Row Dots 240*96



  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 107 46.8 10.3 100 35 95.98 32.62
inches 4.21 1.84 0.41 3.94 1.38 3.78 1.28



  Dot Size Dot Pitch
  width height width height
millimeters 0.38 0.32 0.4 0.34
inches 0.01 0.01 0.02 0.01

Optical Characteristics



Display Addressing GlassType/Glass Color Polarizer View Direction
Passive STN/Yellow-Green Transflective 6:00



Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.3~4.0 Logic Supply Voltage(V) 3
Supply Voltage For LCD Drive(V) -0.3~17 LCD Drive(V) 12.8
Input Voltage(V) -0.4~VDD+0.5 Current Consumption(mA) 0.79



Backlight
Forward Current(mA) 30 Forward Voltage(V) 4.3
Reverse Voltage(V) 5 Average Luminous Intensity(cd/m2) 25
Power Dissipation(mW) 132 Peak emission wavelength(nm) 572

Environmental



  Operating Temperatures Storage Temperatures
  min max min max
Celsius -20° 70° -30° 80°
Farenheit -4° 158° -22° 176°



Humidity
  min max
Non-condensing 0 90%

Electronics



Interface 8 – Bits,4-Bits,SPI-3,SPI-4
