The features of LCD are as follows
* Display mode : STN/Yellow-green/Transflective/Positive
* ControllerIC : T6963C
*Driver IC :SDN8080G
* Interface Input Data : 8-Bit
* Driving Method : 1/128Duty, 1/12Bias
* Viewing Direction : 6 O’clock
* Backlight : LED Unit (Yellow-Green)
*Sample NO. :G2412A6SBY6B-A0_01/20110331
For reference only. For design purposes, please use the specifications in the datasheet.

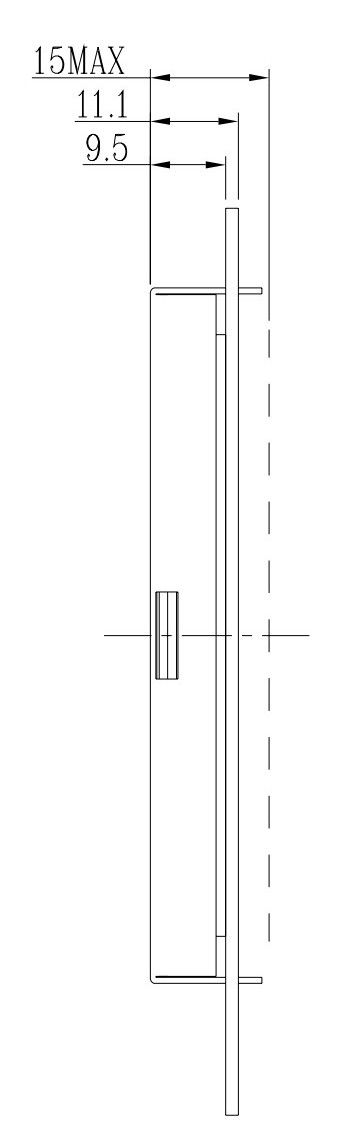

Physical Characteristics
| Column Dots x Row Dots |
240*128 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
144 |
104 |
15 |
114 |
64 |
107.95 |
57.55 |
| inches |
5.67 |
4.09 |
0.59 |
4.49 |
2.52 |
4.25 |
2.27 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.4 |
0.4 |
0.45 |
0.45 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Transflective |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5.5 |
| Supply Voltage For LCD Drive(V) |
6~28 |
LCD Drive（V） |
19.5 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
54 |
| Backlight |
| Forward Current(mA) |
720 |
Forward Voltage(V) |
4.2 |
| Reverse Voltage(V) |
10 |
Average Luminous Intensity(cd/m2) |
100 |
| Power Dissipation(mW) |
7200 |
Peak emission wavelength(nm) |
571 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
