C1601A4SKW1B (16*1 Characters)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Document Download
  • Product Description
  • Tech Specs
  • Notices

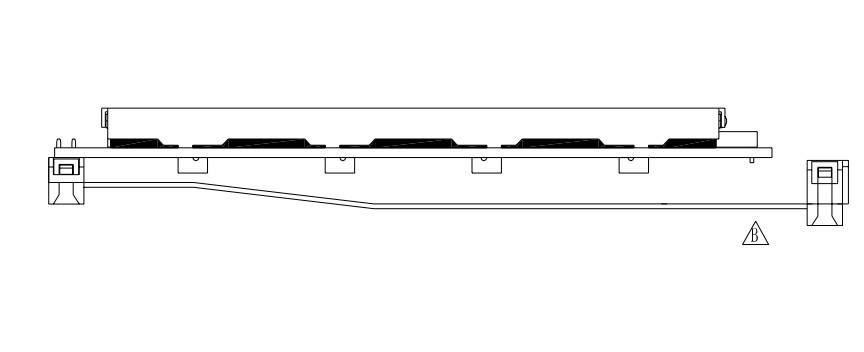

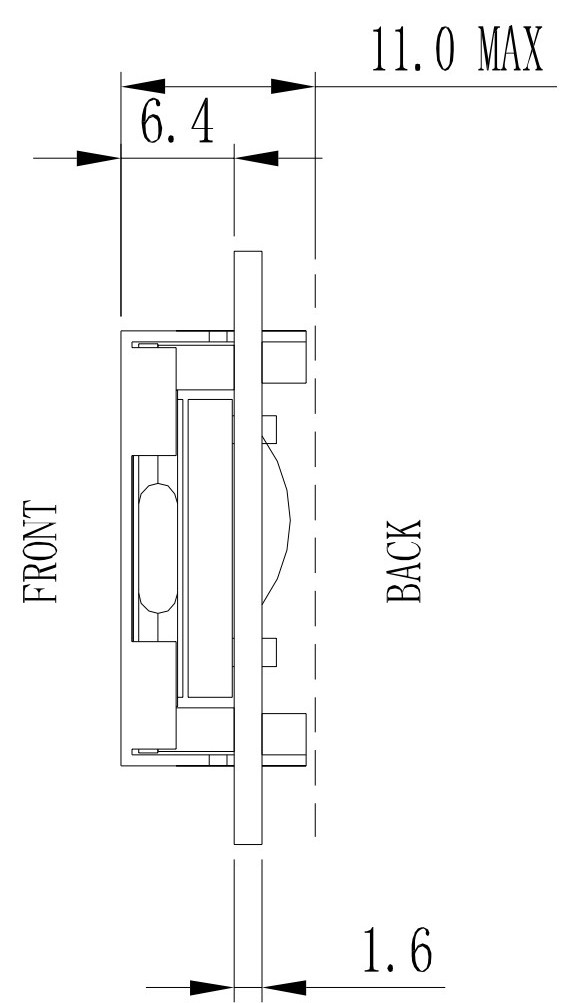

  • Dimensions

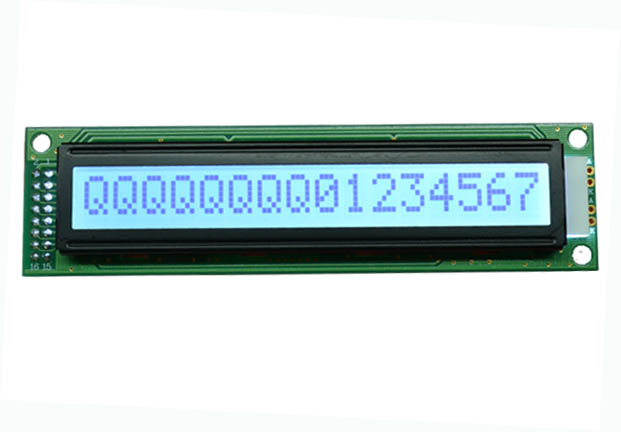

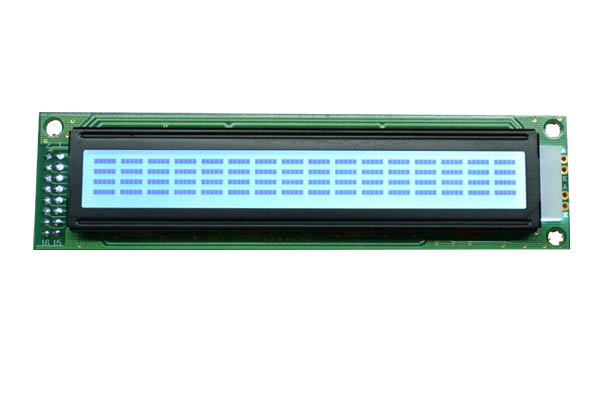

  • photo
  • Reviews

* Display mode              : STN/Grey/Transflective/Positive
* Controller IC                : ST7066U-5H-V1
* Display format              : 16X1Characters
* Interface                       : 4 Bit or 8 BitMPU
* Driving Method            : 1/16Duty, 1/5Bias
* Viewing Direction         : 6O’clock
* Backlight                    : LED/ White



For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics

Characters x Lines 16*1

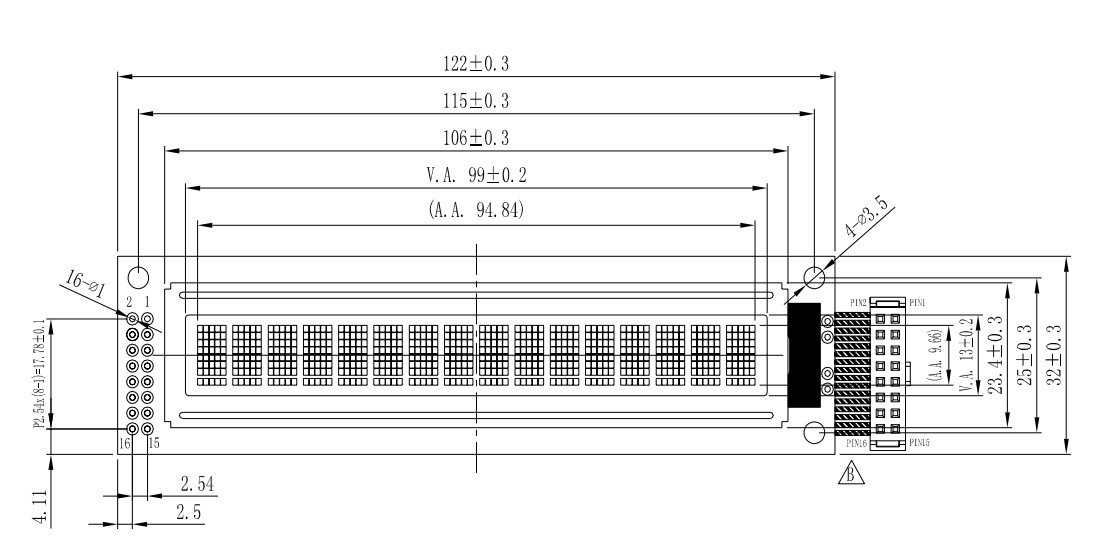

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 122 32 11 99 13 94.84 9.66
inches  4.8 1.26  0.43  3.9  0.51  3.73  0.38

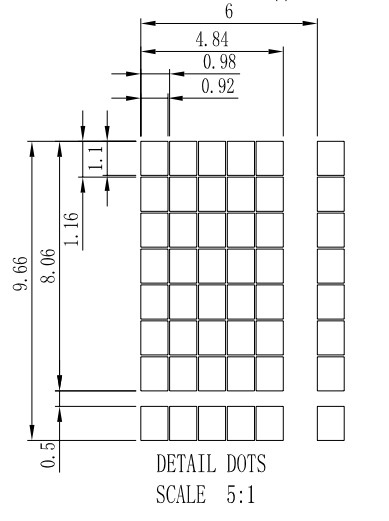

  Character Size Dot Size Dot Pitch
  width height width height width height
millimeters 4.48 9.66 0.92 1.1 0.98 1.16
inches  0.18  0.38 0.04  0.04  0.04  0.05

Optical Characteristics
Display Technology Display Addressing GlassType/Glass Color Polarizer View Direction
LCD passive STN/Grey Transflective 6:00

Backlight Color Backlight Type Mode
Grey LED Positive

Absolute maximum ratings Electrical characteristics
Supply Voltage For Logic(V) -0.3~7 Logic supply Voltage(V) 3.0~3.6
Supply Voltage For LCD Drive(V) VDD-10~VDD+0.3 LCD Drive(V) 2.7~3.3
Input Voltage(V) -0.3~VDD+0.3 Current Consumption(mA) 0.55

Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius 50° -10° 60°
Farenheit 32° 122° 14° 140°

Humidity
  min max
Non-condensing 0 90%

Electronics

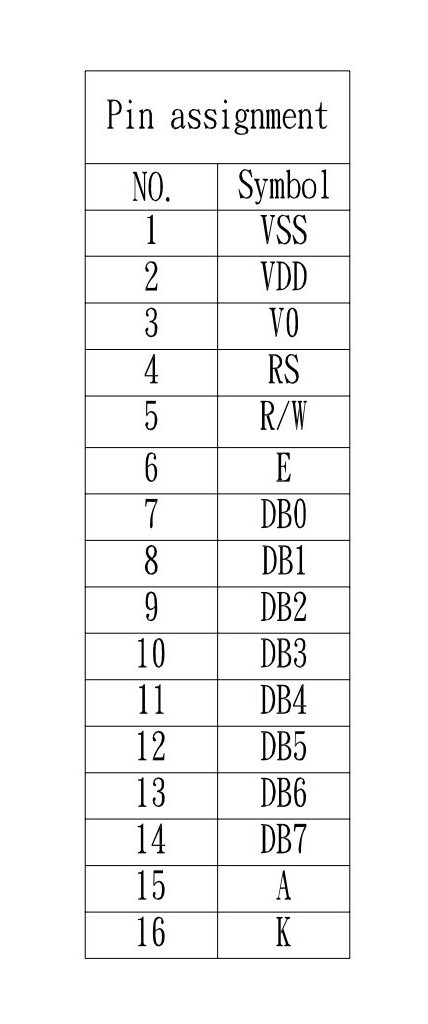

Interface 4 Bit or 8 Bit MPU
