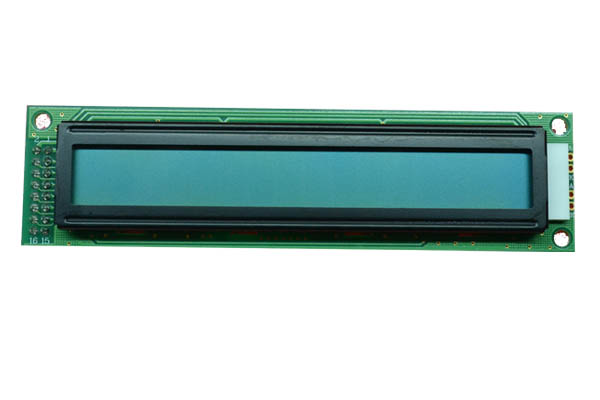

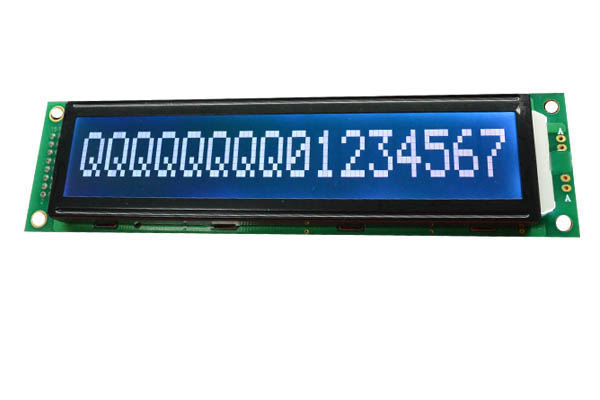

The features of LCD are showed as follows
* Display mode : STN/Yellow-Green/Transflective/Positive
* ControllerIC : AIP31066(English-Japanese)
* Display format :8X2Characters
* Interface Input Data : 4 bit or 8 bit MPU
* Driving Method : 1/16Duty, 1/4Bias
* Viewing Direction : 6 O’clock
* Backlight : LED Unit /Yellow-Green (bottom)
*Sample NO. : C0802A0SBY6B-A0_01/20110409
For reference only. For design purposes, please use the specifications in the datasheet.

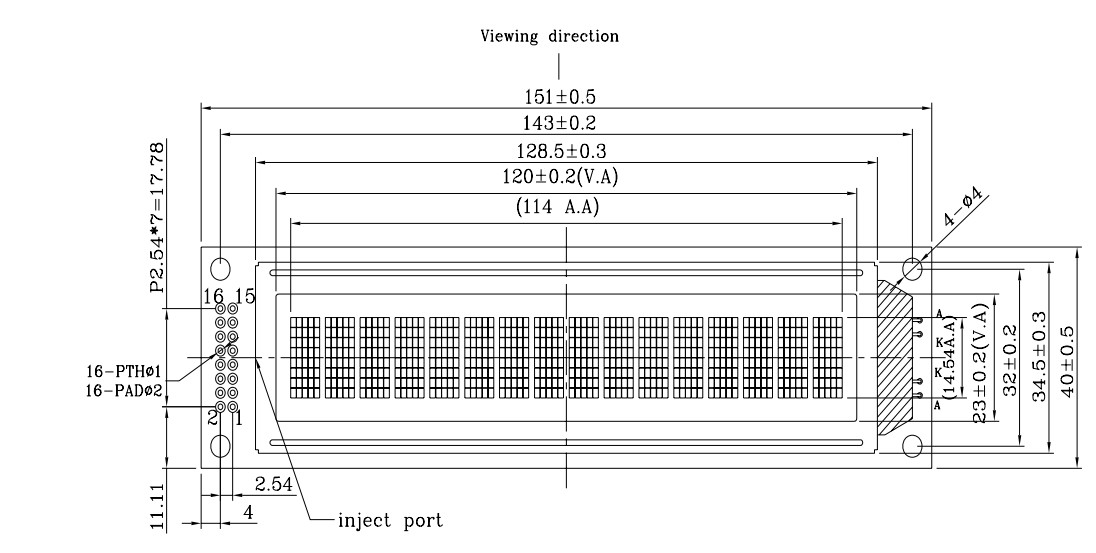

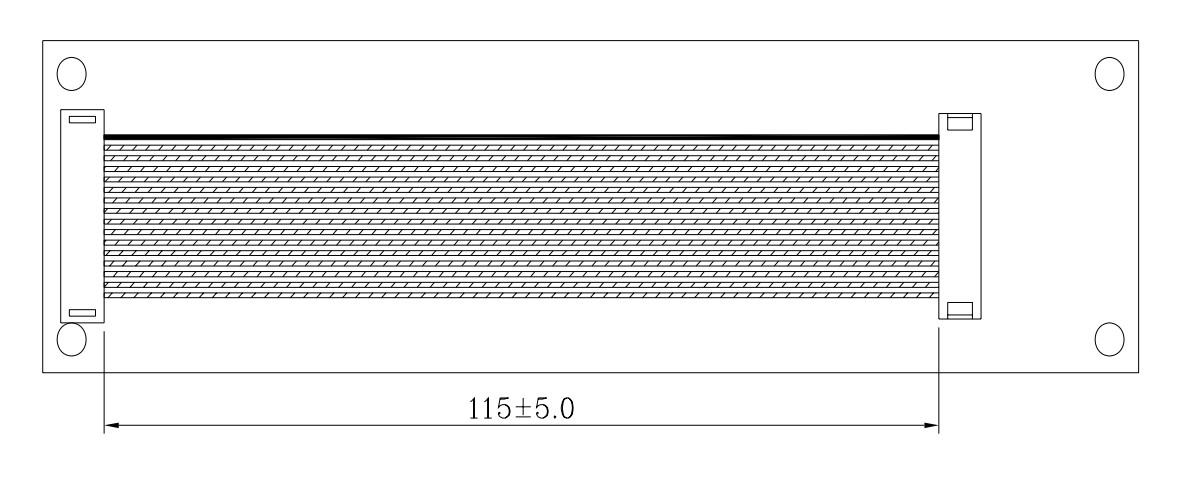

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

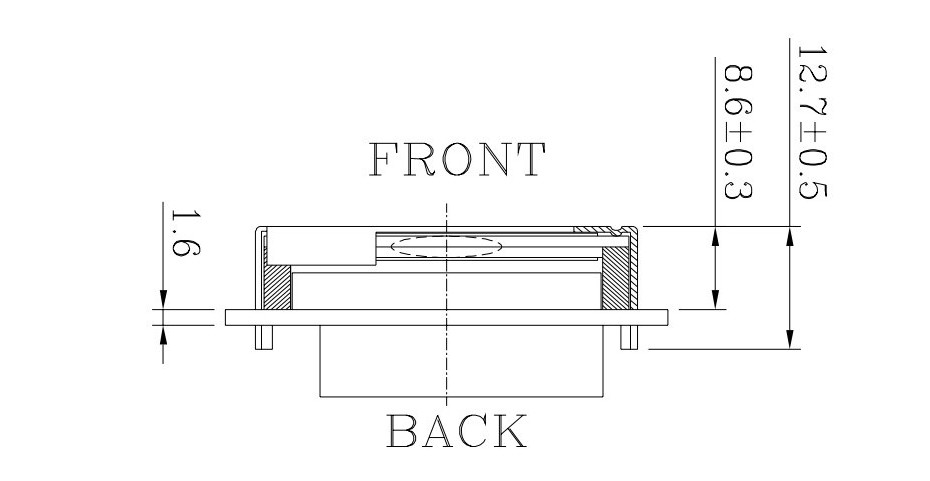

depth |
width |
height |
width |
height |
| millimeters |
151 |
40 |
12.7 |
120 |
23 |
114 |
14.54 |
| inches |
5.945 |
1.575 |
0.500 |
4.724 |
0.906 |
1.188 |
0.572 |
| |

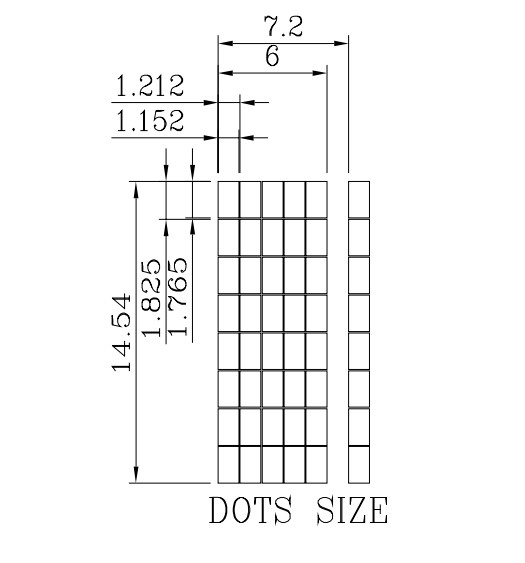

Character Size |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
| millimeters |
6 |
14.54 |
1.152 |
1.765 |
1.212 |
1.826 |
| inches |
0.236 |
0.572 |
0.045 |
0.572 |
0.048 |
0.072 |
Optical Characteristics
| Display Technology |
Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| LCD |
Passive |
FSTN/Blue |
Transflective |
12:00 |
| Backlight Color |
Backlight Type |
Mode |
| Blue |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Logic(V) |
-0.3~7.0 |
Logic supply Voltage（V） |
4.5～5.5 |
| SupplyVoltage For LCD Drive(V) |
VDD-15.0~ VDD+0.3 |
LCD Drive（V） |
4.0～4.65 |
| Input Voltage(V) |
-0.3~VDD +0.3 |
Current Consumption（mA） |
1.38 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
0° |
50° |
-10° |
60° |
| Farenheit |
32° |
122° |
14° |
140° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

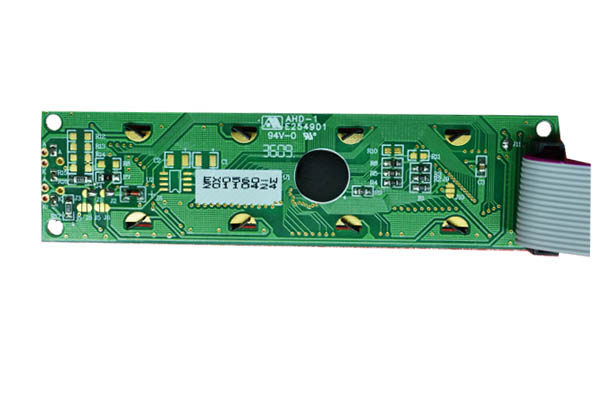

Electronics

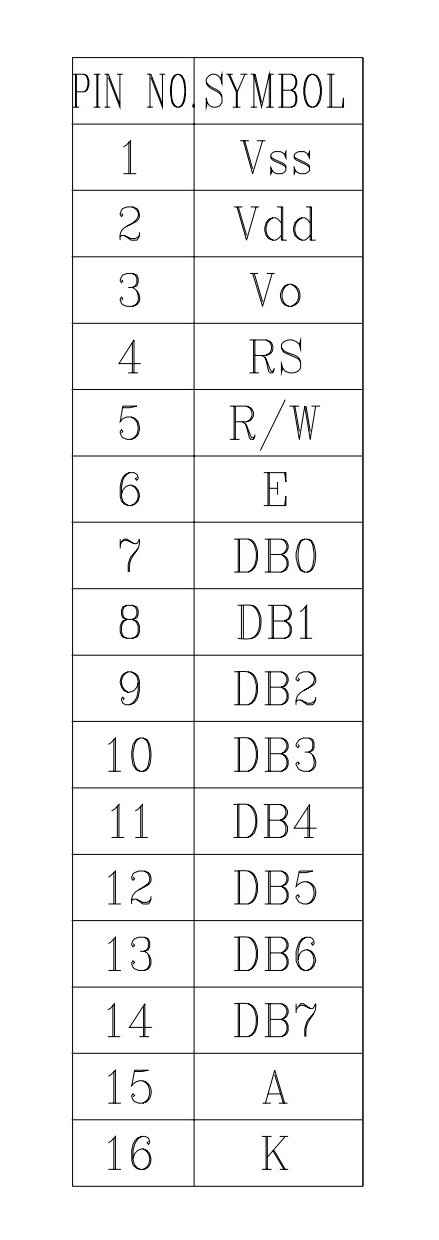

| Interface |
8 bit or 4 bit MPU |
