The features of LCD are as follows
* Display mode : STN/Yellow-Green/Transflective/Positive
* Drive IC :SPLC780D1-002(English And Russian)
* Display format :16*2Characters
* Interface Input Data : 8 Bit or 4Bit MPU
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 6O’clock
* Backlight : LED/Yellow-Green(bottom)
*Sample NO. :C1602A3SBY6B-A3_01/20110626
For reference only. For design purposes, please use the specifications in the datasheet.

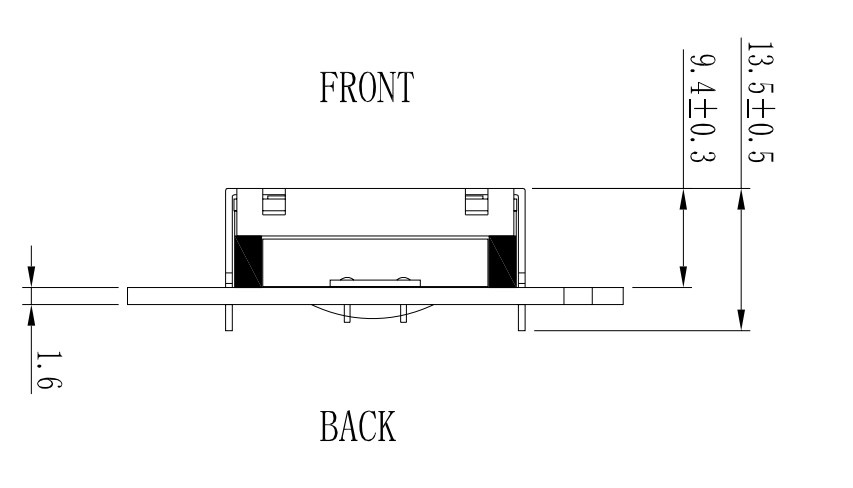

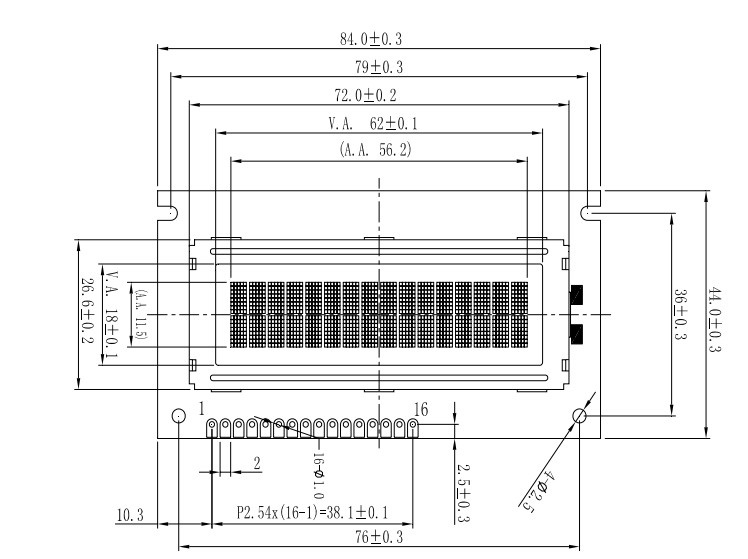

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
84 |
44 |
13.5 |
62 |
18 |
56.2 |
11.5 |
| inches |
3.31 |
1.73 |
0.53 |
2.44 |
0.71 |
2.21 |
0.45 |
| |

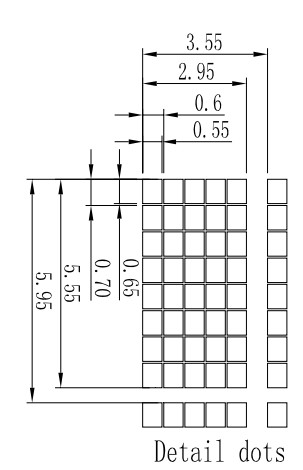

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
2.95 |
5.55 |
3.55 |
5.95 |
0.55 |
0.65 |
0.6 |
0.7 |
| inches |
0.12 |
0.22 |
0.14 |
0.23 |
0.02 |
0.03 |
0.02 |
0.03 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Transflective |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow-Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7 |
Logic Supply Voltage（V） |
4.5~5.5 |
| Supply Voltage For LCD Drive(V) |
VDD-10~ VDD+0.3 |
LCD Drive（V） |
4.2~4.8 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
1.98 |
| Backlight |
| Forward Current(mA) |
110 |
Forward Voltage(V) |
4.2 |
| Reverse Voltage(V) |
10 |
Average Luminous Intensity(cd/m2) |
60 |
| Power Dissipation(mW) |
1100 |
Peak emission wavelength(nm) |
570 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

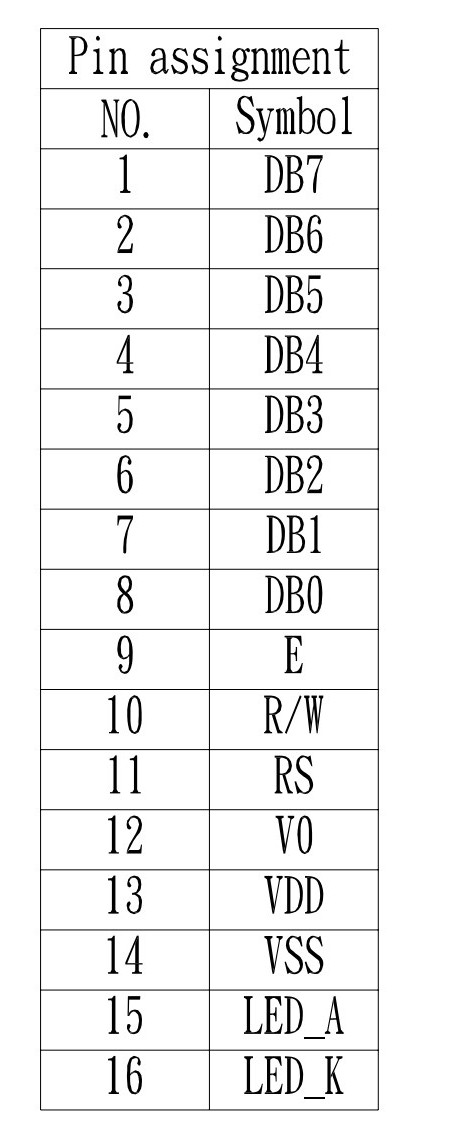

Electronics
| Interface |
8 Bit or 4Bit MPU |
