The features of LCD are as follows
* Display mode : STN/BLUE/Transmissive/Negative
* Drive IC :SPLC780D1-002(English And Russian)
* Display format :16*2Characters
* Interface Input Data : 8 Bit or 4Bit MPU
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 6 O’clock
* Backlight : LED/White
*Sample NO. :C1602A4SGW6B-A1_01/20110704
For reference only. For design purposes, please use the specifications in the datasheet.

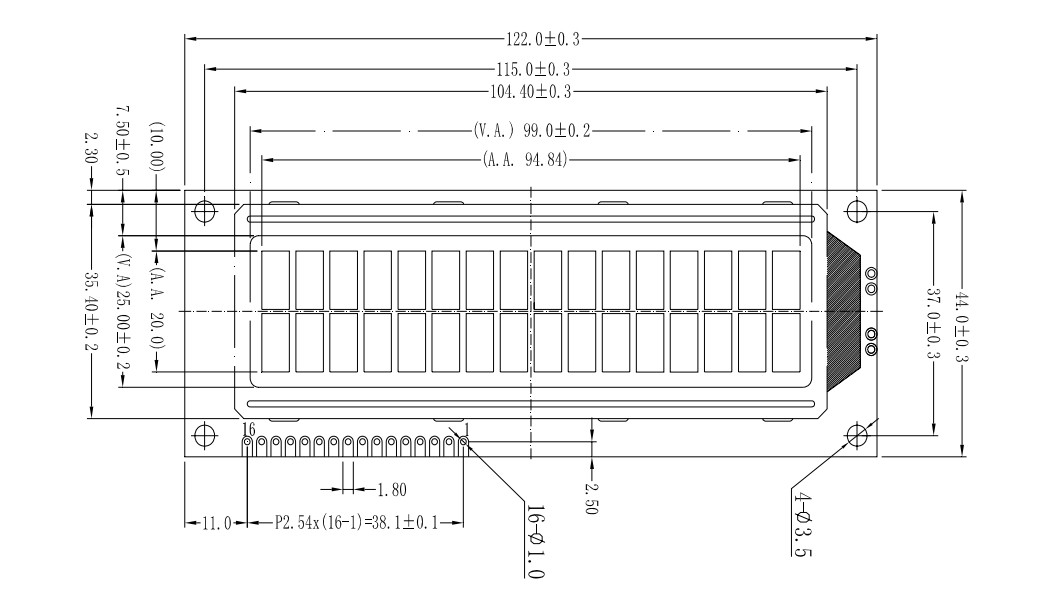

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
122 |
44 |
13.3 |
99 |
25 |
94.84 |
20 |
| inches |
4.8 |
1.73 |
0.52 |
3.9 |
0.98 |
3.73 |
0.79 |
| |

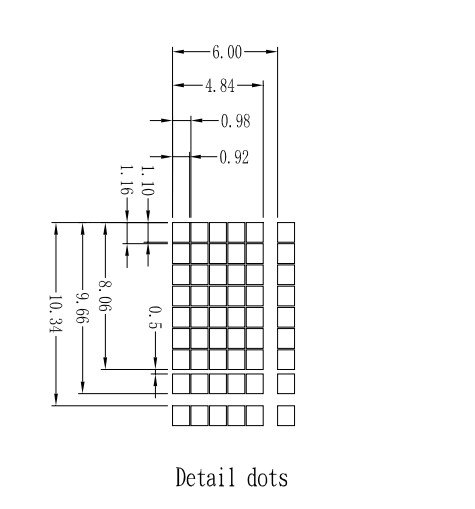

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
4.84 |
9.66 |
6 |
10.34 |
0.92 |
1.10 |
0.98 |
1.16 |
| inches |
0.19 |
0.38 |
0.24 |
0.41 |
0.04 |
0.04 |
0.04 |
0.05 |
Optical Characteristics
| Display Technology |
Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| LCD |
Passive |
STN/Blue |
Transmissive |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Blue |
LED |
Negative |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Logic(V) |
-0.3~7.0 |
Logic supply Voltage（V） |
4.5~5.5 |
| Supply Voltage For LCD Drive(V) |
VDD-10~VDD+0.3 |
LCD Drive（V） |
4.2~4.8 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
CurrentConsumptio（mA） |
1.98 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70 |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics
| Interface |
8 Bit or 4Bit MPU |
