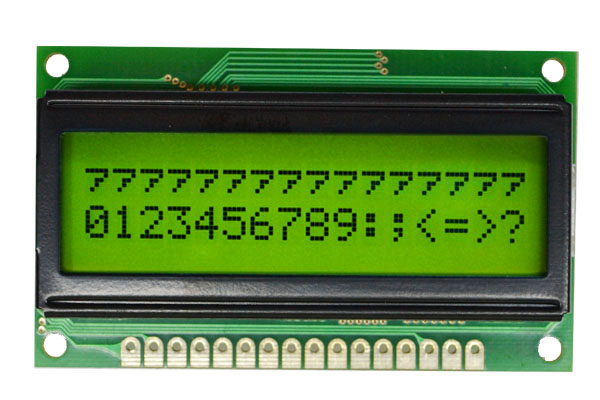

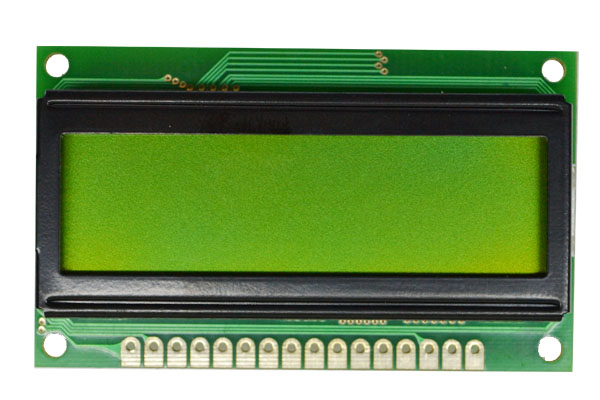

The features of LCD are as follows
* Display mode : STN/ Yellow-Green/Transflective/Positive
* ControllerIC :AIP31066(English-Japanese)
* Display format :16*2Characters
* Interface : 4-Bit or 8-Bit MPU
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 6 O’clock
* Backlight : LED / Yellow-Green
*Sample NO. :C1602C4SBY6B-A0
For reference only. For design purposes, please use the specifications in the datasheet.

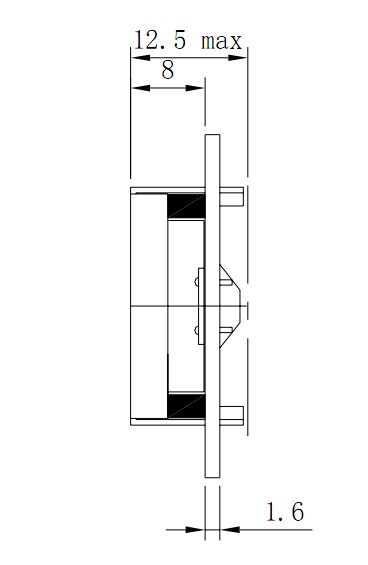

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
60 |
36 |
12.5 |
52 |
15 |
47.45 |
8.9 |
| inches |
2.36 |
1.42 |
0.49 |
2.05 |
0.59 |
1.87 |
0.35 |
| |

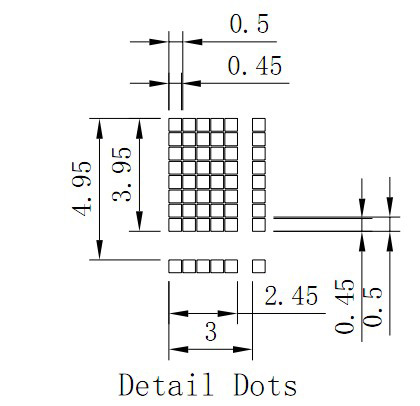

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
2.45 |
3.95 |
3.0 |
4.95 |
0.45 |
0.45 |
0.5 |
0.5 |
| inches |
0.1 |
0.16 |
0.12 |
0.19 |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Technology |
Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| LCD |
Passive |
STN/Yellow-Green |
Transflective |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow-Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Logic(V) |
-0.3~7.0 |
Logic supply Voltage（V） |
4.5~5.5 |
| Supply Voltage For LCD Drive(V) |
VDD-15~VDD+0.3 |
LCD Drive（V） |
3.85~4.45 |
| Input Voltage(V) |
-0.3~ VDD +0.3 |
Current Consumption（mA） |
1.35 |
| Backlight |
| Forward Current(mA) |
170 |
Forward Voltage(V) |
4.1 |
| Reverse Voltage(V) |
10 |
Average Luminous Intensity(cd/m2) |
220 |
| Power Dissipation(mW) |
697 |
Peak emission wavelength(nm) |
570 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics

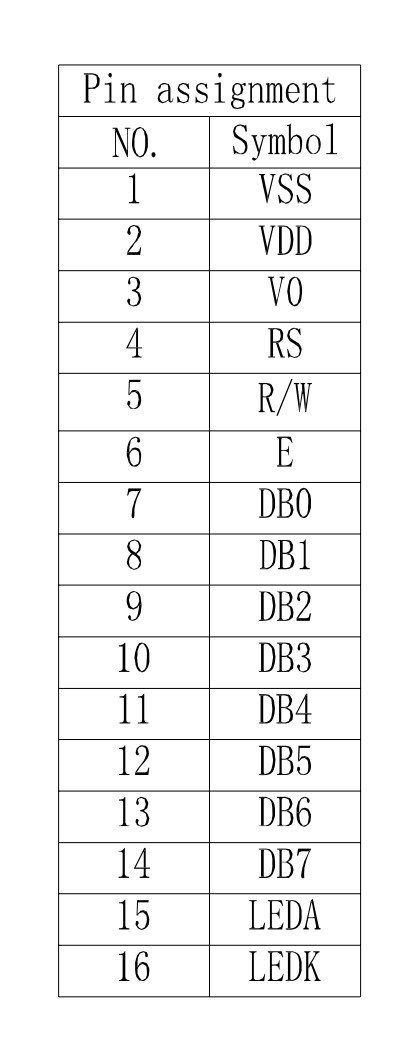

| Interface |
4-Bit or 8-Bit MPU |
