C1602D5FRN6G (16*2 Characters)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Document Download
  • Product Description
  • Tech Specs
  • Notices

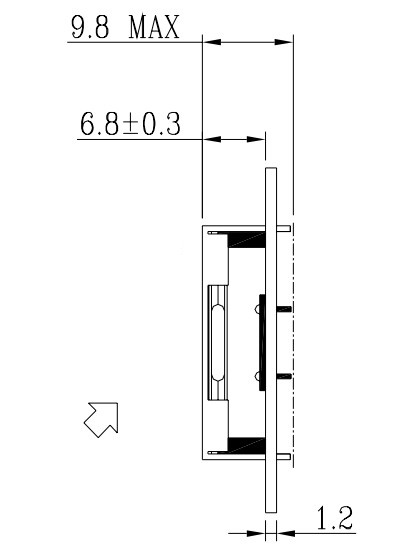

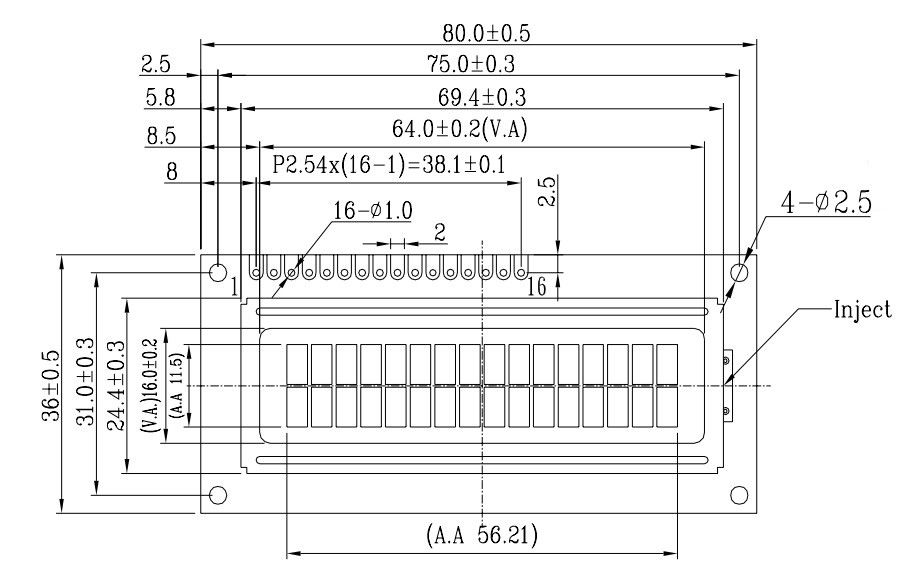

  • Dimensions
  • photo
  • Reviews

The features of LCD are as follows
* Display mode                 : FSTN/Reflective/Positive
* ControllerIC                    : ST7032i
* Display format                :16x2Characters
* Interface Input Data       :I2C
* Driving Method                : 1/16Duty, 1/5Bias
* Viewing Direction           : 12 O’clock
* Backlight                          : Without
* Sample NO.                    : C1602D5FRN6G-A0_01/20101215

For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics

Characters x Lines 16*2

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 54 26 2.85 50 16 46.7 10
inches          2.13 1.02 0.11 1.97 0.63 1.84 0.39

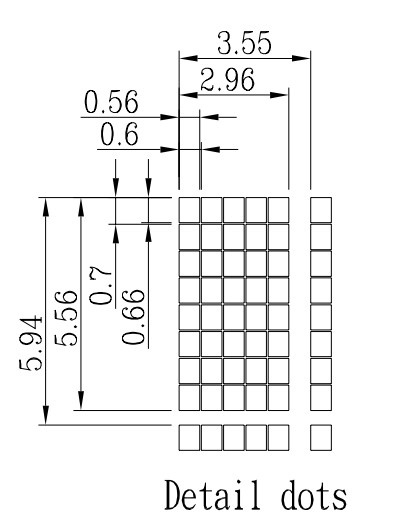

  Character Size Character Pitch Dot Size Dot Pitch
  width height width height width height width height
millimeters 2.45 4.75 2.95 6.25 0.45 0.55 0.5 0.6
inches 0.1 0.19 0.12 0.25 0.02 0.02 0.02 0.02

Optical Characteristics
Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.3~6.0 Logic Supply Voltage(V) 2.5~3.3
Supply Voltage For LCD Drive(V) 7.0-VSS~-0.3+VSS LCD Drive(V) 4.5~5.1
Input Voltage(V) -0.3~VDD+0.3 Current Consumption(mA) 0.26

Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius -20° 70° -30° 80°
Farenheit -4° 158° -22° 176°

Humidity
  min max
Non-condensing 0 90%

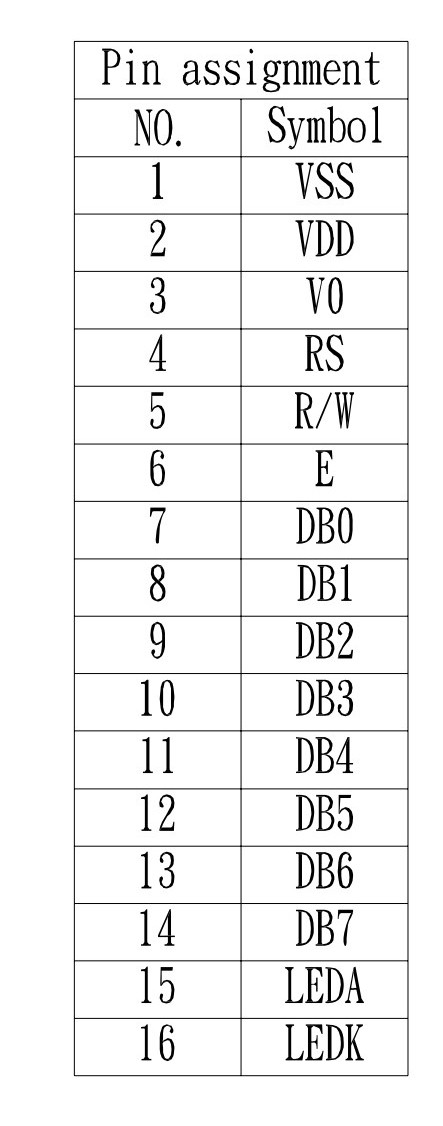

Electronics
Interface I2C
