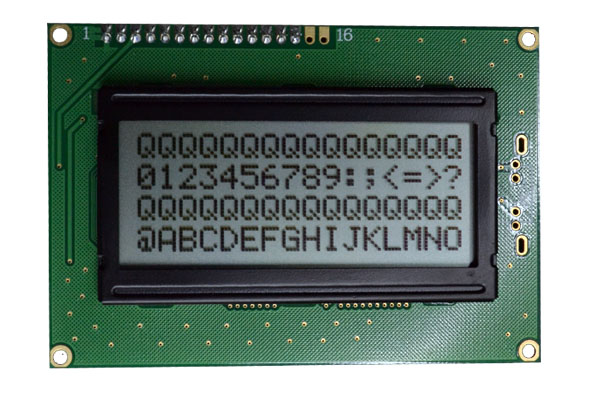

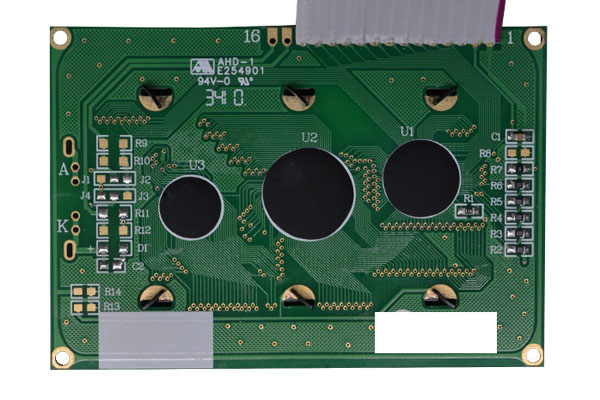

The features of LCD are showed as follows
*Displaymode :STN/Yellow-Green/Transflective/Positive/anti-UV
* Controller IC : AIP31066(English and Japanese)
* Display format : 16X4Characters
* Interface : 4 Bit or 8 BitMPU
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 12O’clock
* Backlight : LED /Yellow-Green
*Sample NO. : C1604A9SBY7B-B0_01/20100830
For reference only. For design purposes, please use the specifications in the datasheet.

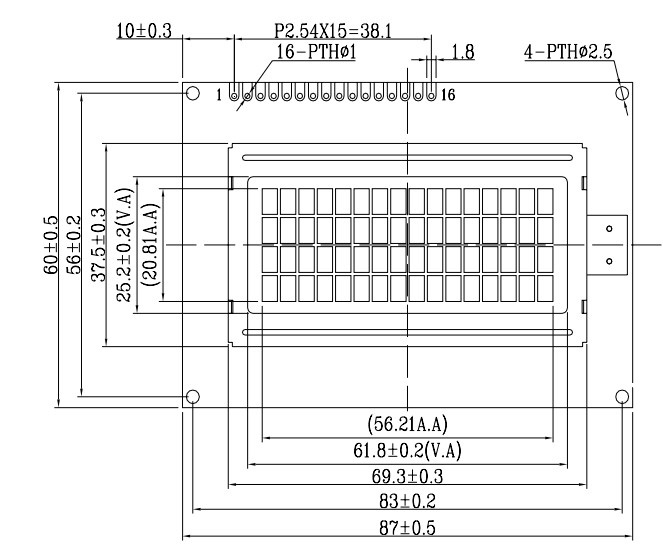

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

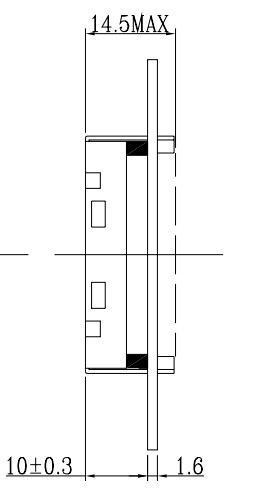

depth |
width |
height |
width |
height |
| millimeters |
87 |
60 |
14.5 |
61.8 |
25.2 |
56.21 |
20.81 |
| inches |
3.43 |
2.36 |
0.57 |
2.43 |
0.99 |
2.21 |
0.82 |
| |

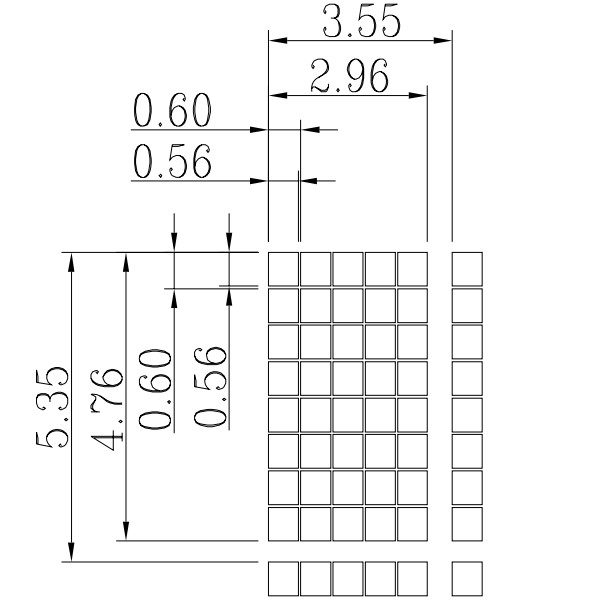

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
2.96 |
4.76 |
3.55 |
5.35 |
0.55 |
0.56 |
0.6 |
0.6 |
| inches |
0.12 |
0.19 |
0.14 |
0.21 |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Transflective |
12:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow-Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
VDD-10~ VDD+0.3 |
LCD Drive（V） |
4.3 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
1.47 |
| Backlight |
| Forward Current(mA) |
120 |
Forward Voltage(V) |
4.2 |
| Reverse Voltage(V) |
10 |
Average Luminous Intensity(cd/m2) |
110 |
| Power Dissipation(mW) |
1220 |
Peak emission wavelength(nm) |
572 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

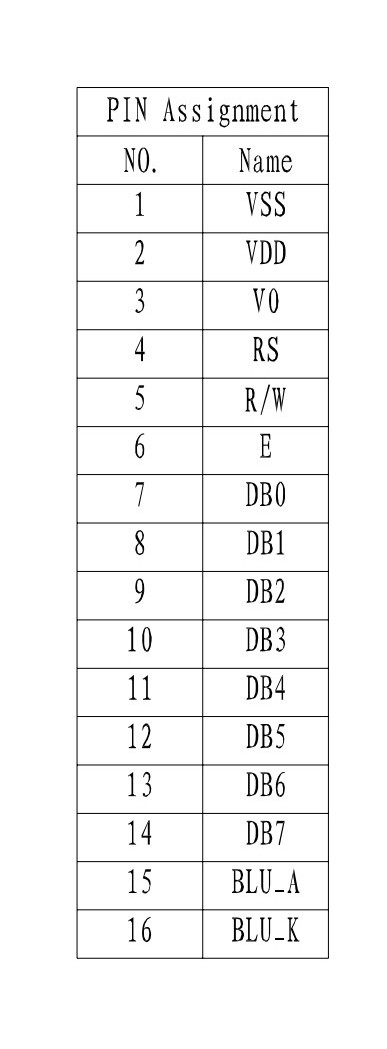

Electronics
| Interface |
4 Bit or 8 Bit MPU |
