The features of LCD are showed as follows
* Display mode :FSTN,Transflective,Positive
* Driver/ControllerIC :NT7605H-BDT01
* Display format :20X 2 Characters
* Interface Input Data :8-Bit
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 12O’clock
* Backlight : LED Unit (White)
*Sample NO. :C2002A8FSW7G-A0
For reference only. For design purposes, please use the specifications in the datasheet.

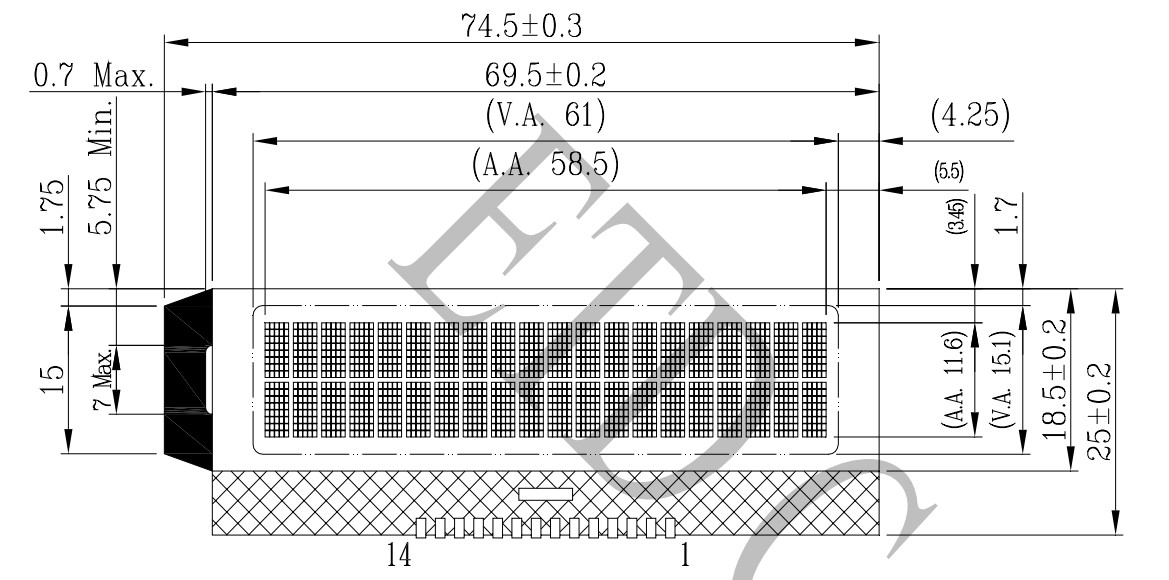

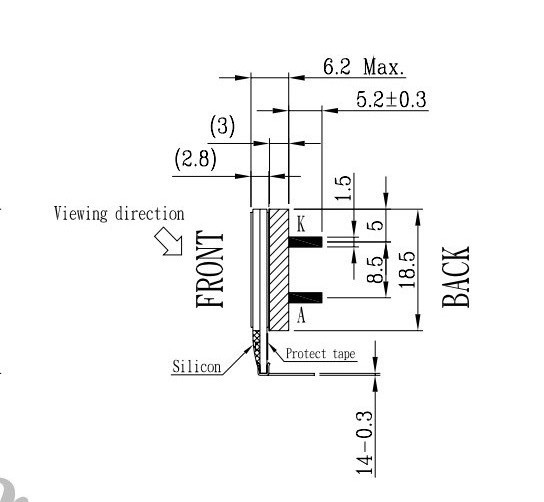

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
74.5 |
25 |
6.2 |
61 |
15.1 |
58.5 |
11.6 |
| inches |
2.93 |
0.98 |
0.24 |
2.4 |
0.59 |
2.3 |
0.46 |
| |

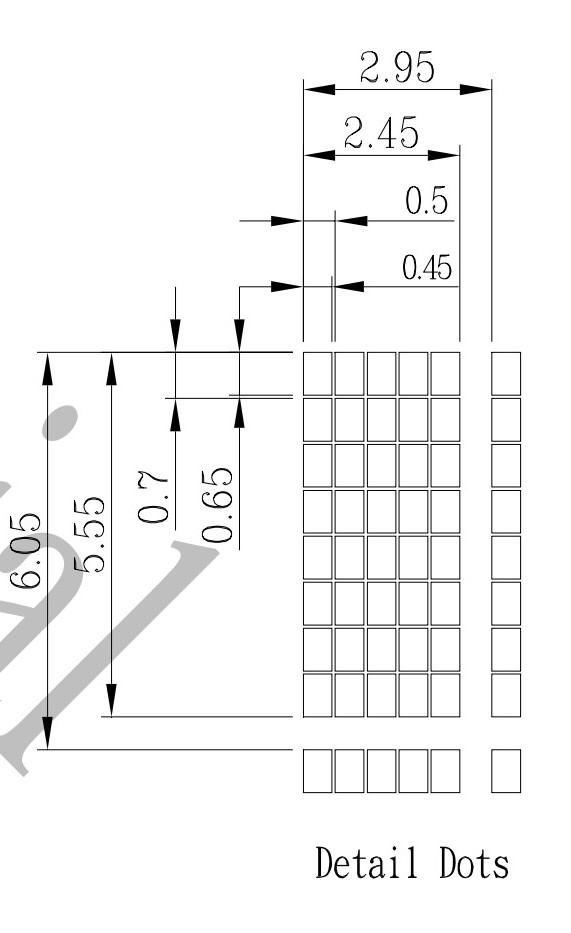

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
2.45 |
5.55 |
2.95 |
6.05 |
0.45 |
0.65 |
0.5 |
0.7 |
| inches |
0.1 |
0.22 |
0.12 |
0.24 |
0.02 |
0.03 |
0.02 |
0.03 |
Optical Characteristics
| Display Addressing |
GlassType |
Polarizer |
View Direction |
| Passive |
FSTN |
Transflective |
12：00 |
| Backlight Color |
Backlight Type |
Mode |
| White |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
GND~ VDD+0.3 |
LCD Drive（V） |
4.9 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
2.3 |
| Backlight |
| Forward Current(mA) |
40 |
Forward Voltage(V) |
3.2 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
200 |
| Power Dissipation(mW) |
140 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
