C2002B2SHN1G (20*2 Characters)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Document Download
  • Product Description
  • Tech Specs
  • Notices

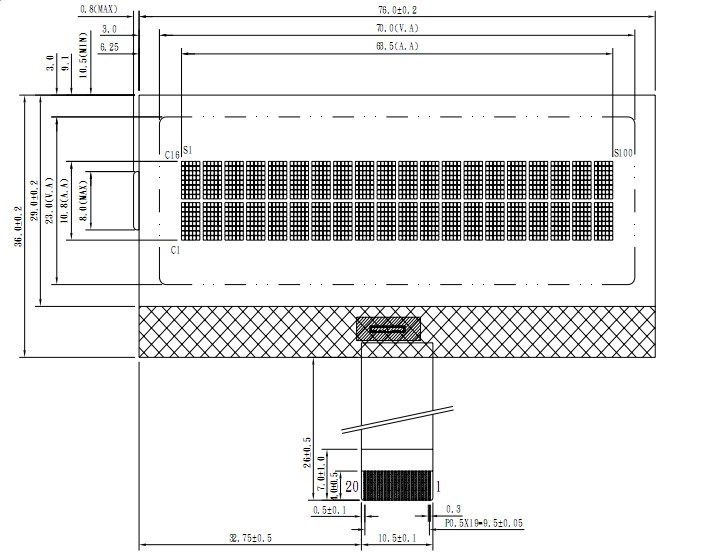

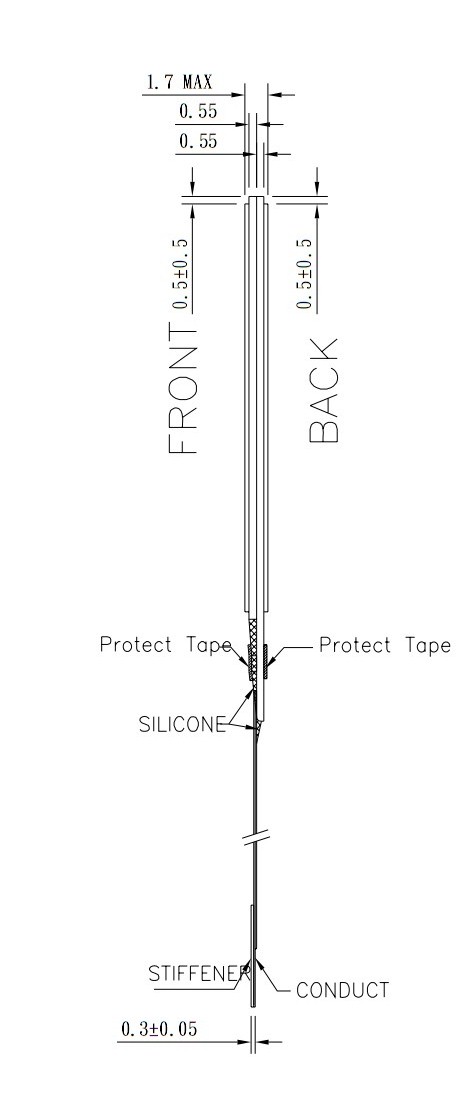

  • Dimensions

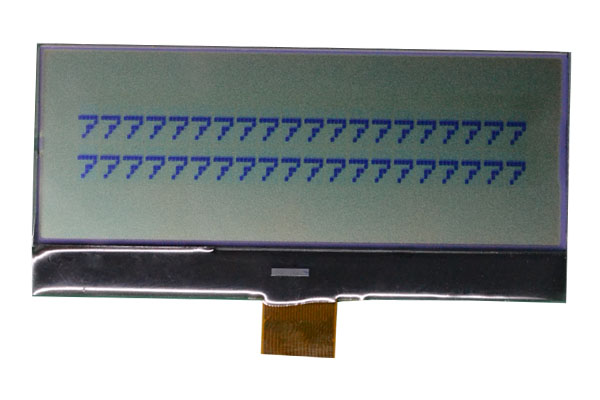

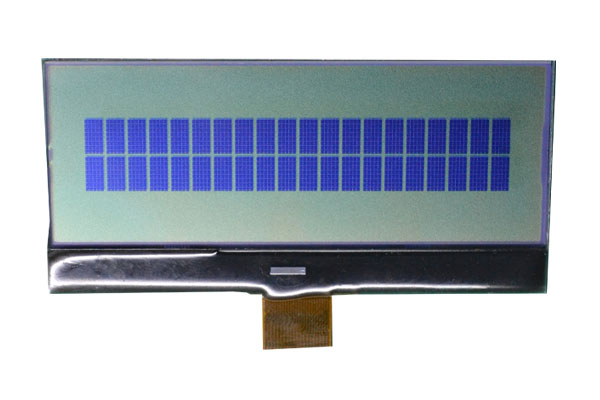

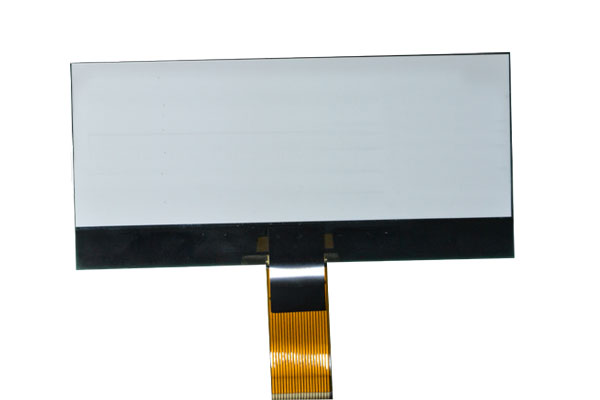

  • photo
  • Reviews

The features of LCD are showed as follows
* Display mode                 :STN/Gray/Reflective/Positive
* Driver/ControllerIC        :ST7036I
* Display format                :20 x 2Characters
* Interface Input Data       : I²Cmode
* Driving Method              : 1/16Duty, 1/5 Bias
 * Viewing Direction         : 6 O’clock
* Backlight                       : Without
*Sample NO.                   : C2002B2SHN1G-A0

For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics

Characters x Lines 20*2

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 76 36 1.7 70 23 63.5 10.8
inches 2.99 1.42 0.07 2.76 0.91 2.5 0.43

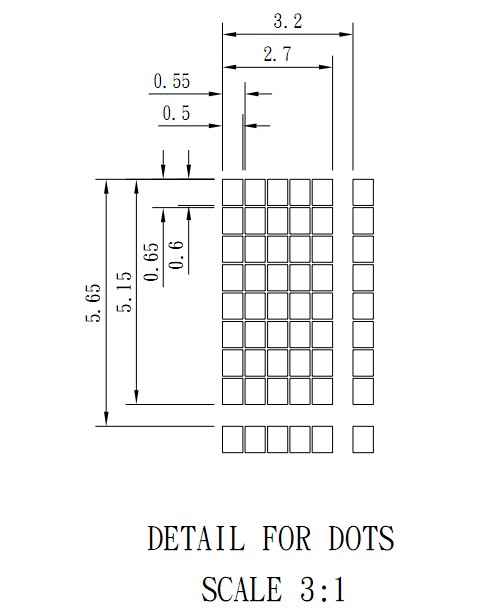

  Character Size Character Pitch Dot Size Dot Pitch
  width height width height width height width height
millimeters 2.7 51.5 3.2 5.65 0.5 0.6 0.55 0.65
inches 0.11 2.03 0.13 0.22 0.02 0.02 0.02 0.03

Optical Characteristics
Display Addressing GlassType/Glass Color Polarizer View Direction
Passive STN/Gray Reflective 6:00

Backlight Color Mode
Whithout Positive

Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.3~6.0

Logic Supply Voltage(V) 3
Supply Voltage For LCD Drive(V) -0.3~7.0 LCD Drive(V) 4.8
Input Voltage(V) -0.3~VDD+0.3 Current Consumption(mA) 0.18


Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius 50° -10° 60°
Farenheit 32° 122° 14° 140°

Humidity
  min max
Non-condensing 0 90%

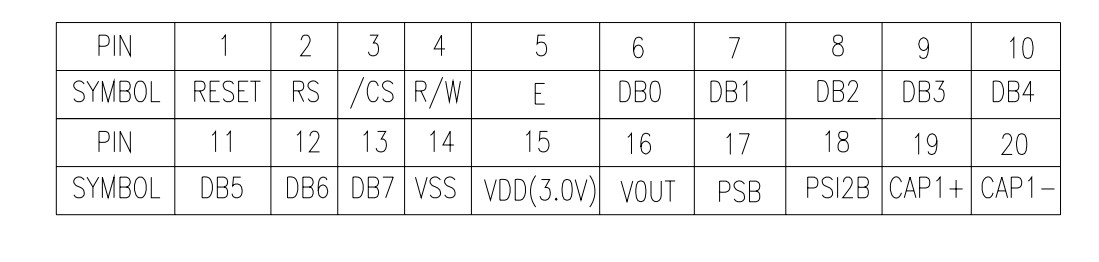

Electronics
Interface I²Cmode
