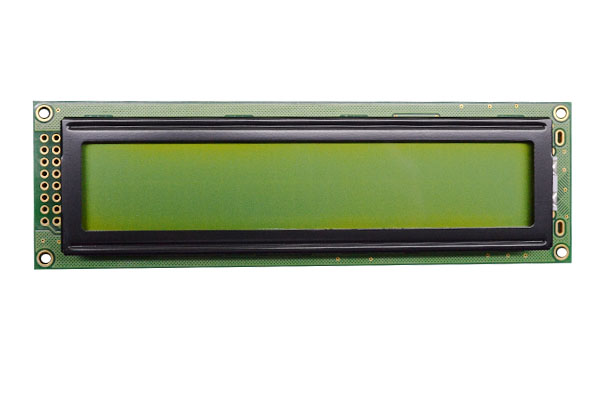

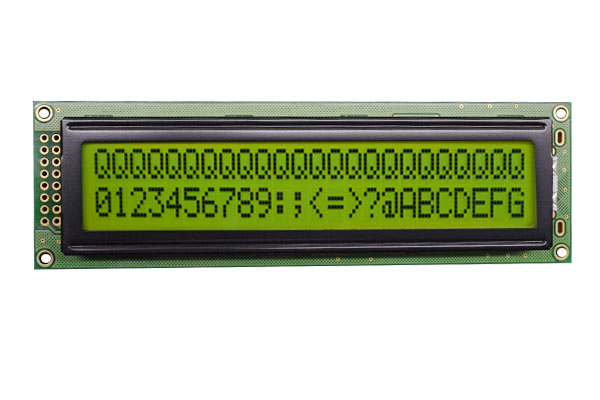

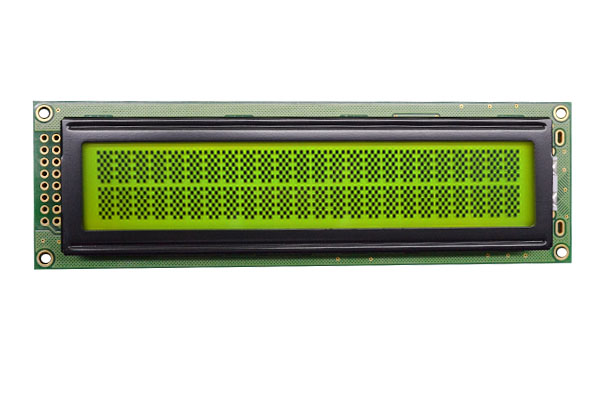

The features of LCD are as follows
* Display mode : STN/ Yellow-Green/Transflective/Positive
* ControllerIC :AIP31066(English-Japanese)
* Display format :24*2Characters
* Interface : 4-Bit or 8-Bit MPU
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 6 O’clock
* Backlight : LED /Yellow-Green
*Sample NO. : C2402A0SBY6B-A0_01/20101120
For reference only. For design purposes, please use the specifications in the datasheet.

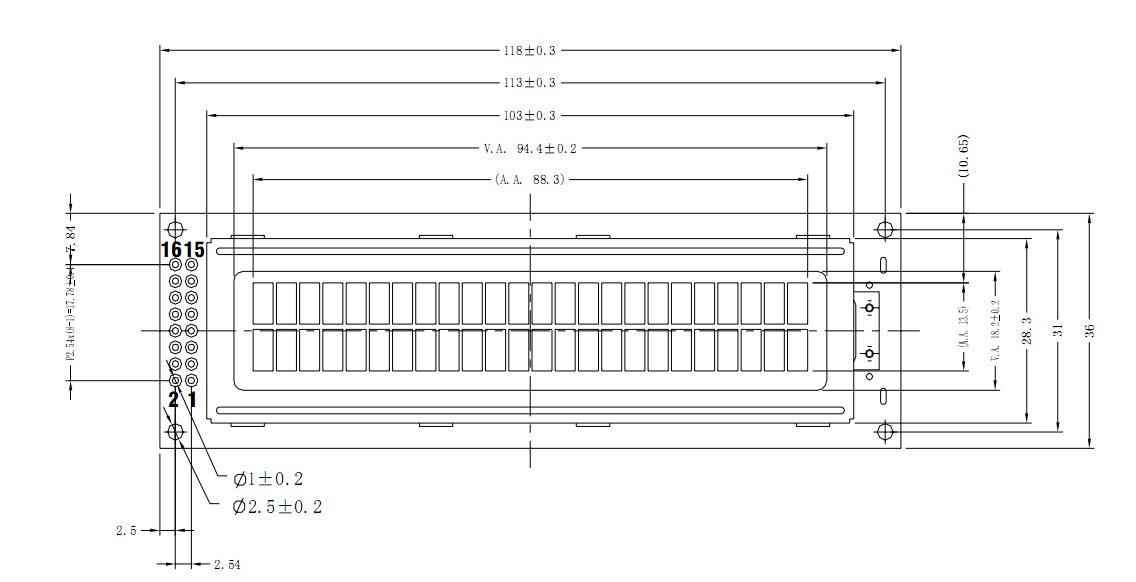

Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

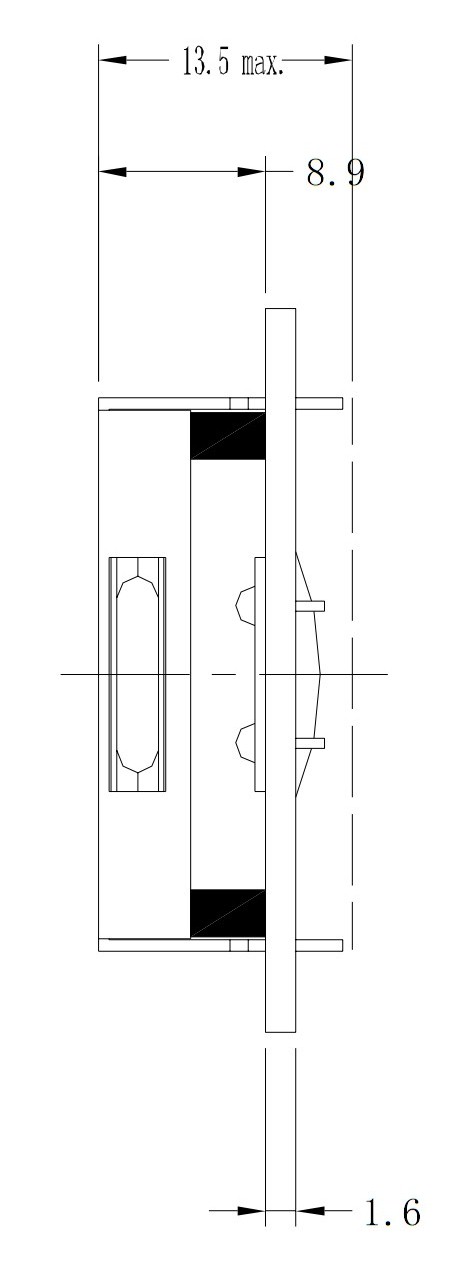

depth |
width |
height |
width |
height |
| millimeters |
118 |
36 |
13.5 |
94.4 |
18.2 |
88.3 |
13.5 |
| inches |
4.65 |
1.42 |
0.53 |
3.72 |
0.72 |
3.48 |
0.53 |
| |

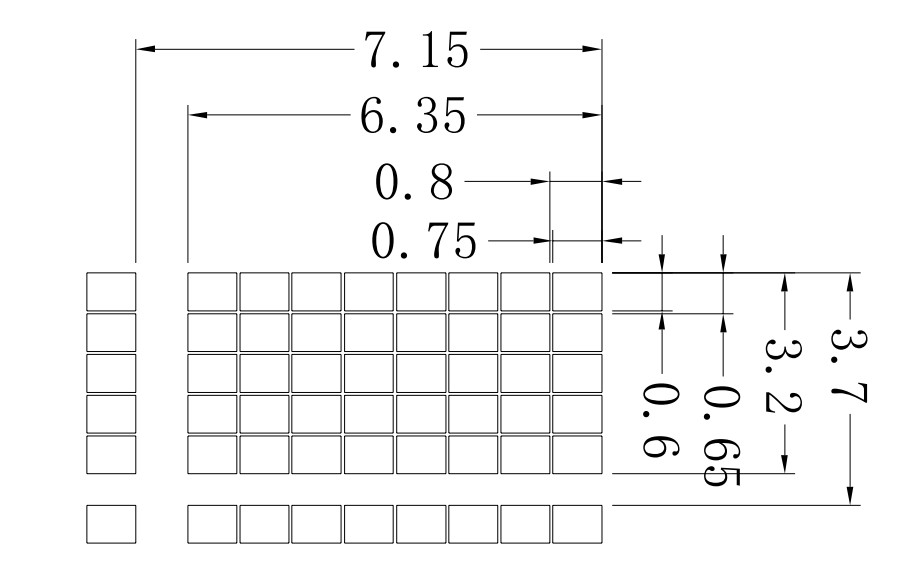

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
3.2 |
6.35 |
3.7 |
7.15 |
0.6 |
0.75 |
0.65 |
0.8 |
| inches |
0.13 |
0.25 |
0.15 |
0.28 |
0.02 |
0.03 |
0.03 |
0.03 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Transflective |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow-Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
VDD-15~VDD+0.3 |
LCD Drive（V） |
4.1 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
1.45 |
| Backlight |
| Forward Current(mA) |
150 |
Forward Voltage(V) |
4.1 |
| Reverse Voltage(V) |
8 |
Average Luminous Intensity(cd/m2) |
98 |
| Power Dissipation(mW) |
1500 |
Peak emission wavelength(nm) |
568 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics
| Interface |
4-Bit or 8-Bit MPU |
