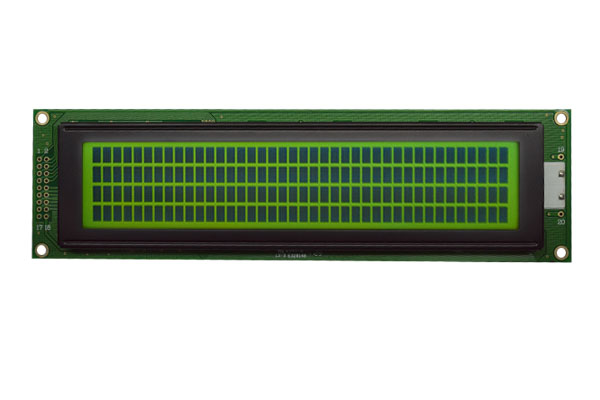

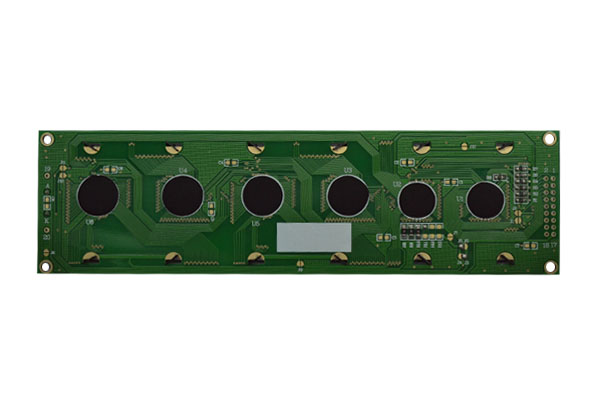

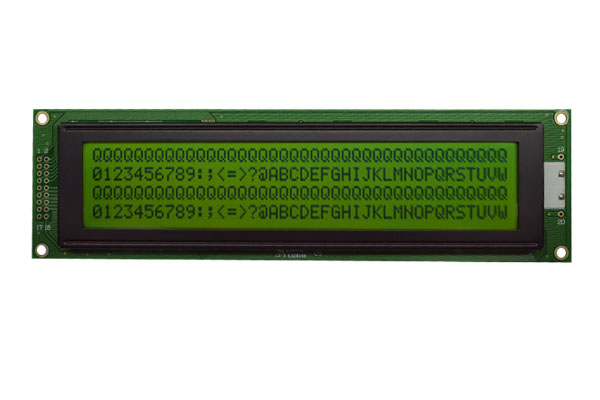

C4004A5SFY6B (40*4 Characters)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices

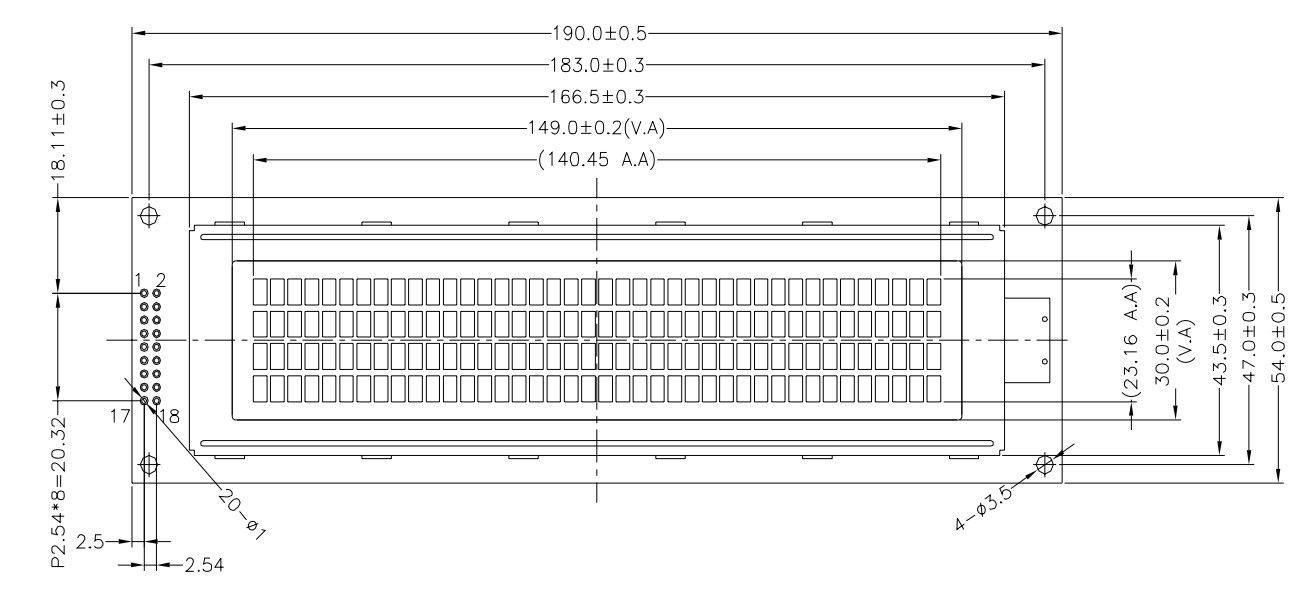

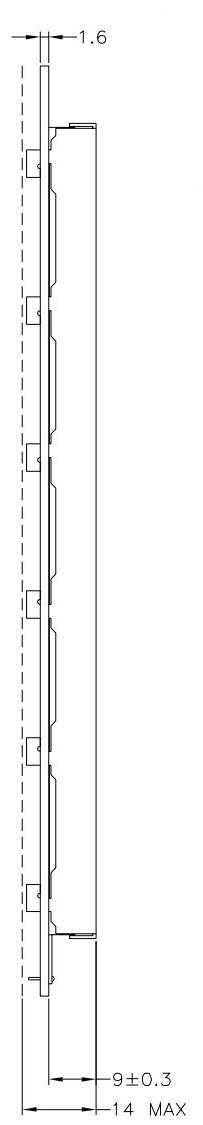

  • Dimensions
  • photo
  • Reviews

The features of LCD are showed as follows
* Display mode             :STN/Yellow-Green/Transflective/Positive/anit-UV
* ControllerIC                : SPLC780D1-001(English-Japanese)
* Display format            :40X4Characters
* Interface Input Data    : 8 bit or 4bit MPU
* Driving Method           : 1/16Duty, 1/5Bias
* Viewing Direction         : 6 O’clock
* Backlight                     : LED Unit /Yellow-Green/Bottom
*Sample NO.                   : C4004A5SFY6B-B0_01/20100724



For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics



Characters x Lines 40*4



  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 190 54 14 149 30 140.45 23.16
inches 7.48 2.13 0.55 5.87 1.18 5.53 0.91

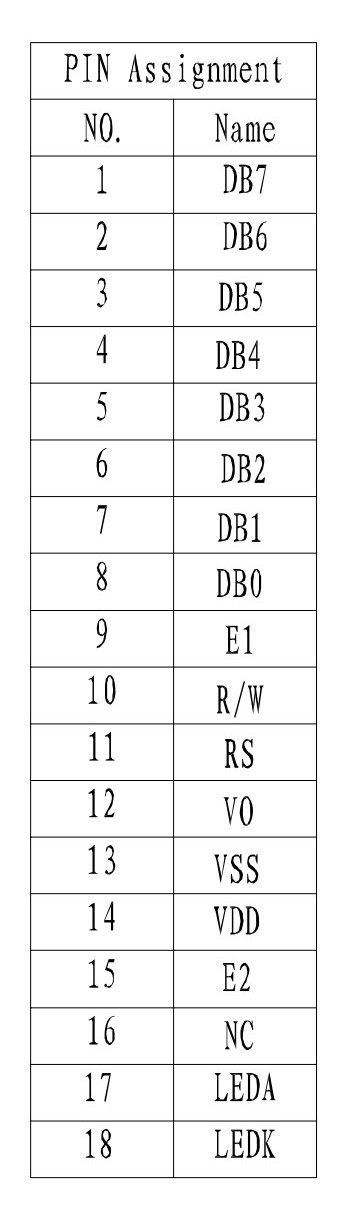

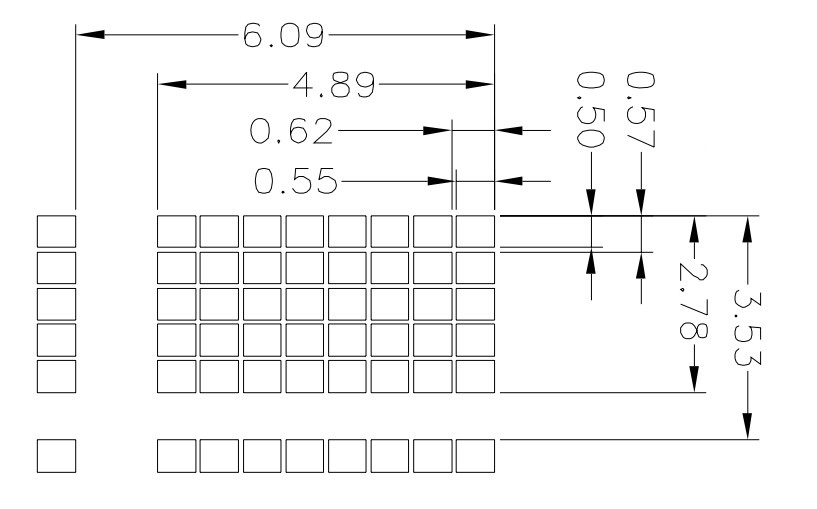

  Character Size Character Pitch Dot Size Dot Pitch
  width height width height width height width height
millimeters 2.78 4.89 3.53 6.09 0.5 0.55 0.57 0.62
inches 0.11 0.19 0.14 0.24 0.02 0.02 0.02 0.02

Optical Characteristics



Display Addressing GlassType/Glass Color Polarizer View Direction
Passive STN/Yellow-Green Transflective 6:00



Backlight Color Backlight Type Mode
Yellow-Green LED Positive



Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) 0.3~7.0 Logic Supply Voltage(V) 5
Supply Voltage For LCD Drive(V) VDD-10~VDD+0.3 LCD Drive(V) 4.57
Input Voltage(V) -0.3~VDD+0.3 Current Consumption(mA) 2.6



Backlight
Forward Current(mA) 500 Forward Voltage(V) 4.2
Reverse Voltage(V) 10 Peak wavelength(nm) 572
Power Dissipation(mW) 5000

Environmental



  Operating Temperatures Storage Temperatures
  min max min max
Celsius -20° 70° -30° 80°
Farenheit -4° 158° -22° 176°



Humidity
  min max
Non-condensing 0 90%

Electronics



Interface 8 Bit or 4Bit  MPU
