G1006A3SHN1G (100*64 Dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices

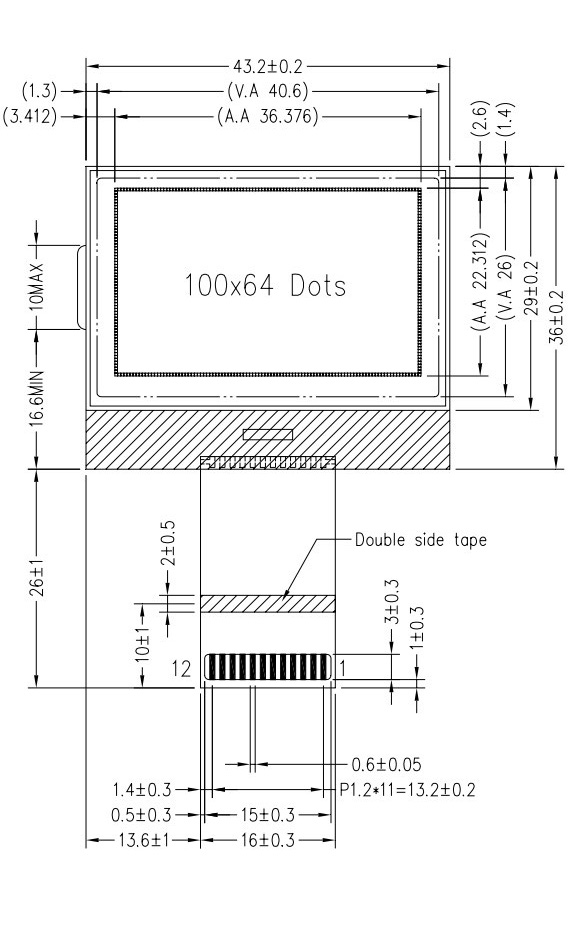

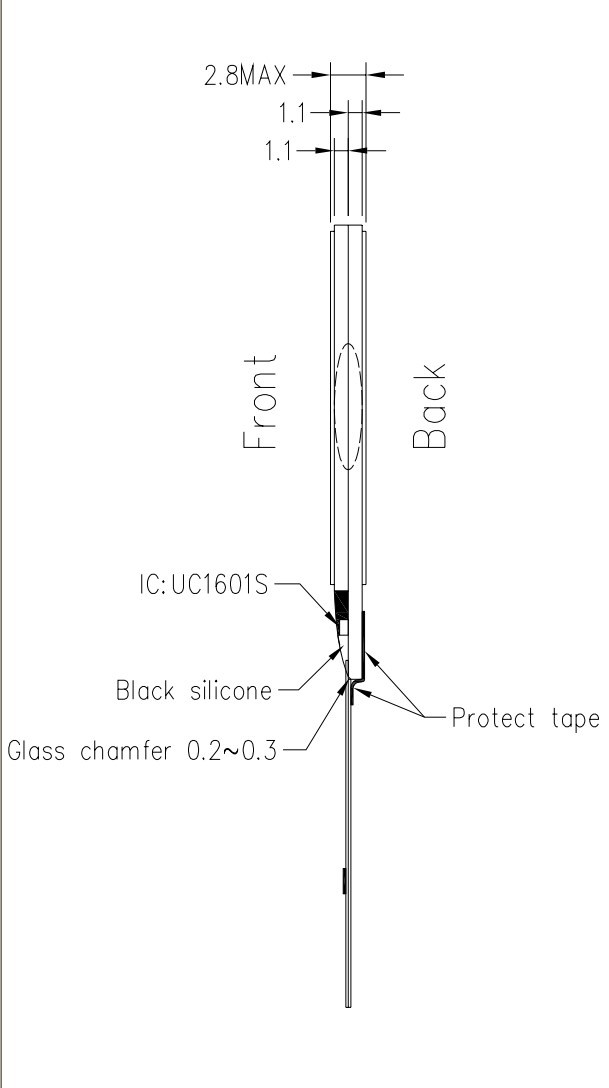

  • Dimensions

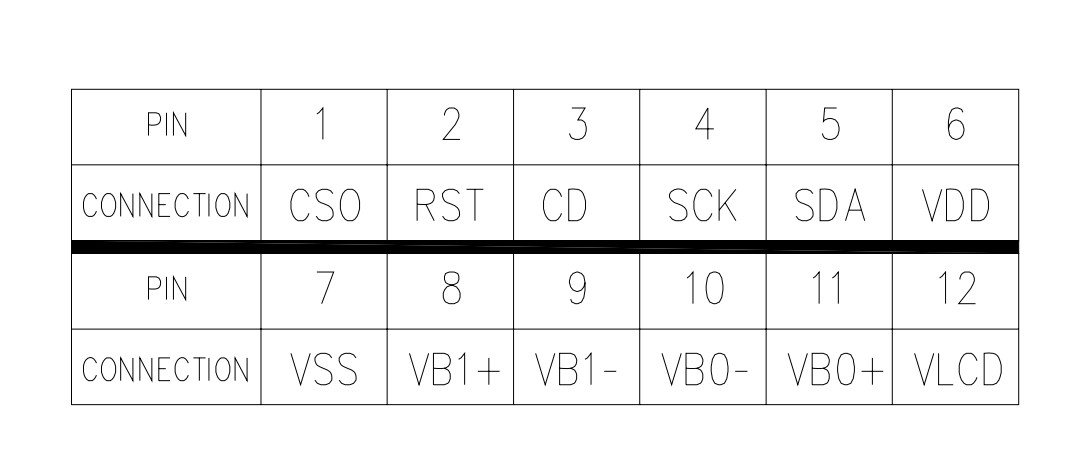

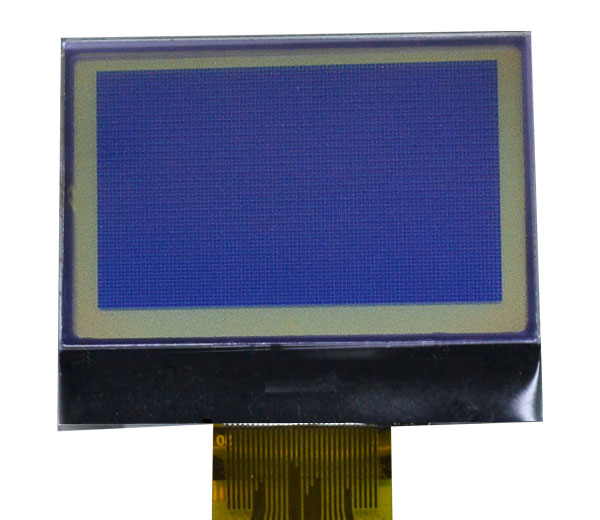

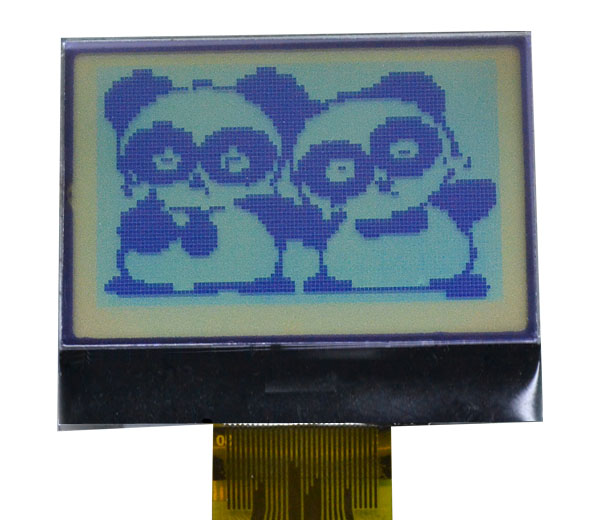

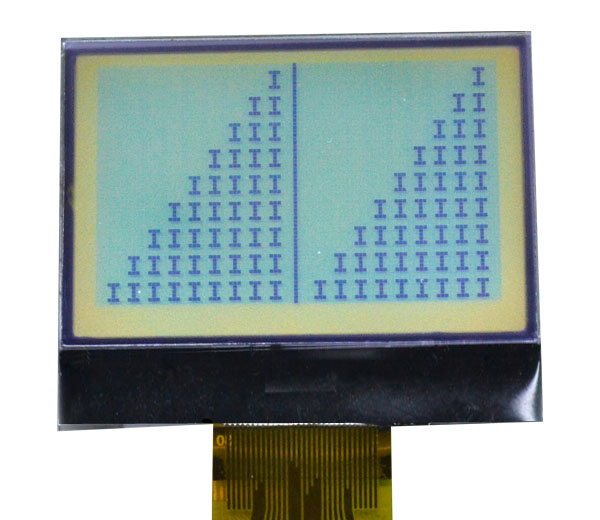

  • photo
  • Reviews

The features of LCD are as follows
* Display mode                      :STN/Gray,Reflective/Positive
* Drive IC                                 : UC1601S
* Display format                     : 100 X 64 Dots
* Interface Input Data            : 4-wire serial bus(S8)
* Driving Method                    : 1/65Duty, 1/9Bias
* Viewing Direction               : 6O’clock
* Backlight                             : Without


For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics

Column Dots x Row Dots 100*64

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 43.2 36 2.8 40.6 26 36.376 22.312
inches 1.701 1.417 0.110 1.598 1.024 1.432 0.878

  Dot Size Dot Pitch
  width height width height
millimeters 0.364 0.349 0.34 0.325
inches 0.014 0.014 0.013 0.013

Optical Characteristics
Display Addressing GlassType/Glass Color Polarizer View Direction
Passive STN/Gray Reflective 6:00

Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.3~4.0 Logic Supply Voltage(V) 3.0
Supply Voltage For LCD Drive(V) -0.3~13.2 LCD Drive(V) 9.0
Input Voltage(V) -0.4~VDD+0.3 Current Consumption(mA) 0.2

Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius 50° -10° 60°
Farenheit 30°° 122° 14° 158°

Humidity
  min max
Non-condensing 0 90%

Electronics
Interface 4-wire serial bus(S8)
