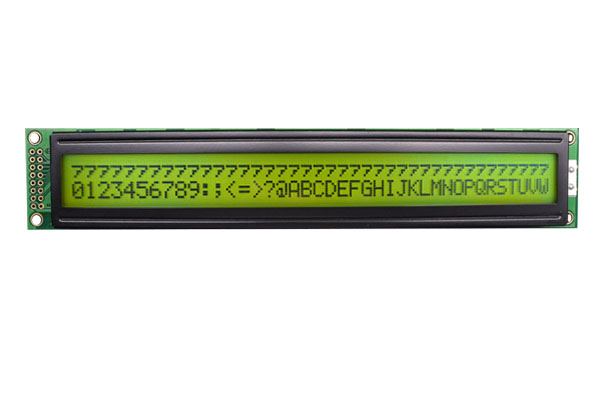

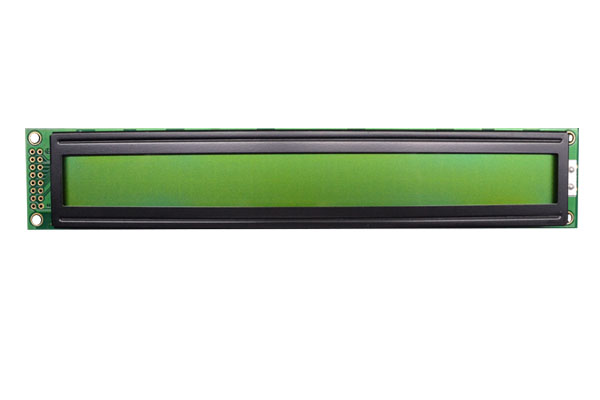

The features of LCD are showed as follows
* Display mode : STN/Yellow-Green, Transflective,Positive
* ControllerIC : SPLC780D1-001(English&Japanese)
* Display format :40X2Characters
* Interface Input Data : 8 Bit
* Driving Method : 1/16Duty, 1/5Bias
* Viewing Direction : 6 O’clock
* Backlight : LED Unit /Yellow-Green
*Sample NO. : C4002A1SBY6B-A0
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

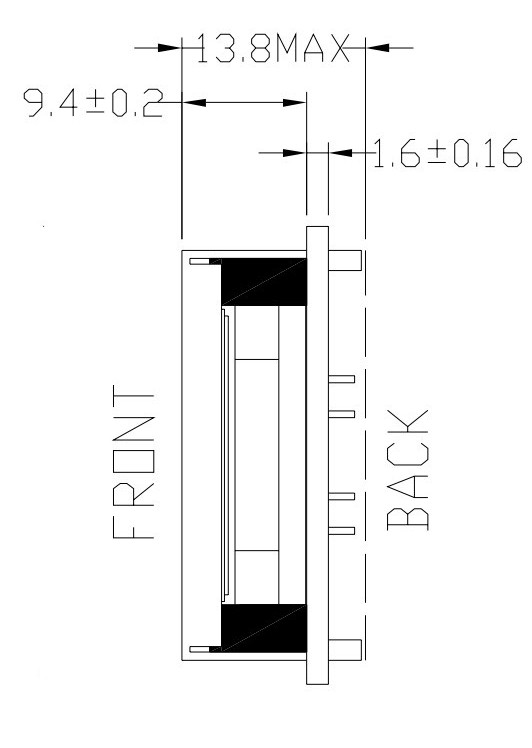

depth |
width |
height |
width |
height |
| millimeters |
182 |
33.5 |
13.8 |
154.3 |
15.8 |
147.5 |
11.5 |
| inches |
7.17 |
1.32 |
0.54 |
6.07 |
0.62 |
5.81 |
0.45 |
| |

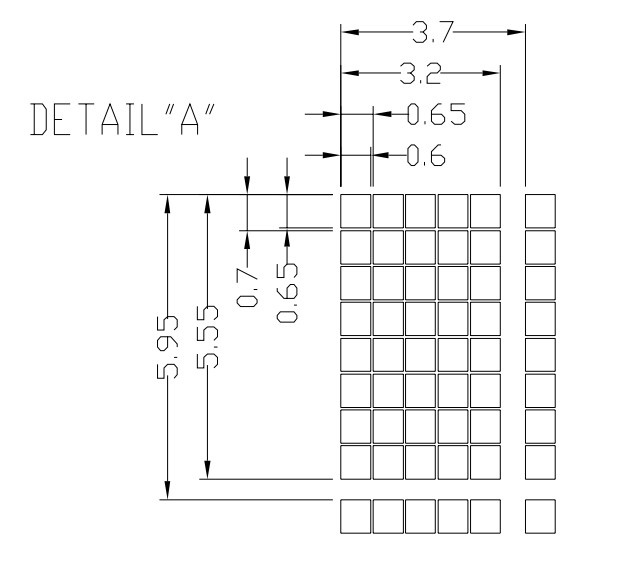

Character Size |
Character Pitch |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
width |
height |
width |
height |
| millimeters |
3.2 |
5.55 |
3.7 |
5.95 |
0.6 |
0.65 |
0.65 |
0.7 |
| inches |
0.13 |
0.22 |
0.15 |
0.23 |
0.02 |
0.03 |
0.03 |
0.03 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Yellow-Green |
Transflective |
6:00 |
| Backlight Color |
Backlight Type |
Mode |
| Yellow-Green |
LED |
Positive |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
0~7 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
0~5 |
LCD Drive（V） |
4.5 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
78.1 |
| Backlight |
| Forward Current(mA) |
360 |
Forward Voltage(V) |
4.2 |
| Reverse Voltage(V) |
10 |
Peak wavelength(nm) |
|
| Power Dissipation(mW) |
1512 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
