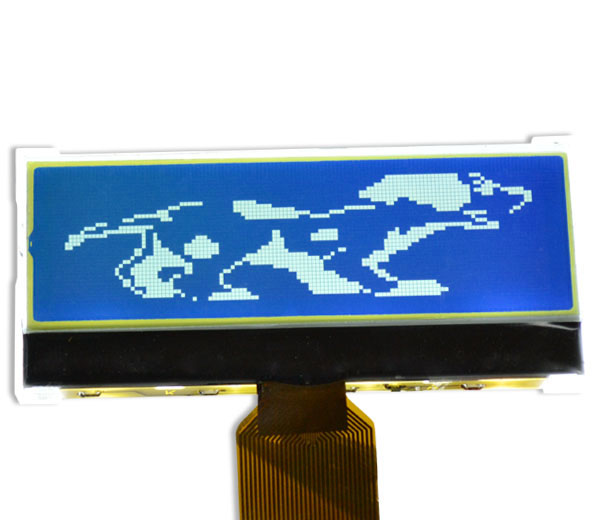

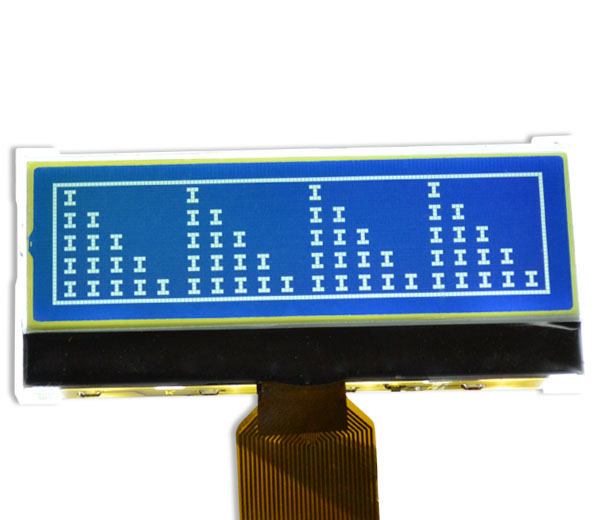

The features of LCD are as follows
* Display mode :STN/Blue/Transmissive/Negative
* IC : ST7565R
* Interface Input Data : 6800 or 8080 interface
* Driving Method :1/33 Duty,1/5Bias
* Viewing Direction : 12O’clock
* Backlight :LED/ White
*Sample NO : G1203A5SGW7G-A0_01/20110807
For reference only. For design purposes, please use the specifications in the datasheet.

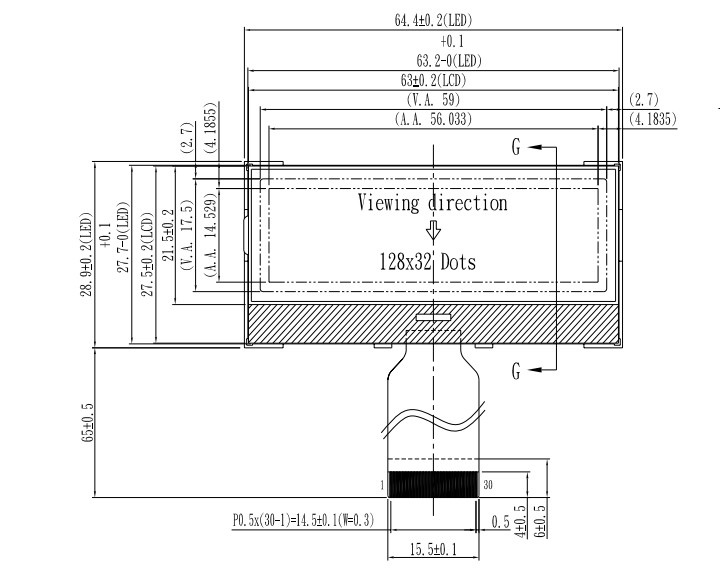

Physical Characteristics
| Column Dots x Row Dots |
128*32 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
64.4 |
28.9 |
5.7 |
59 |
17.5 |
56.033 |
14.529 |
| inches |
2.535 |
1.138 |
0.224 |
2.323 |
0.689 |
2.206 |
0.572 |
| |

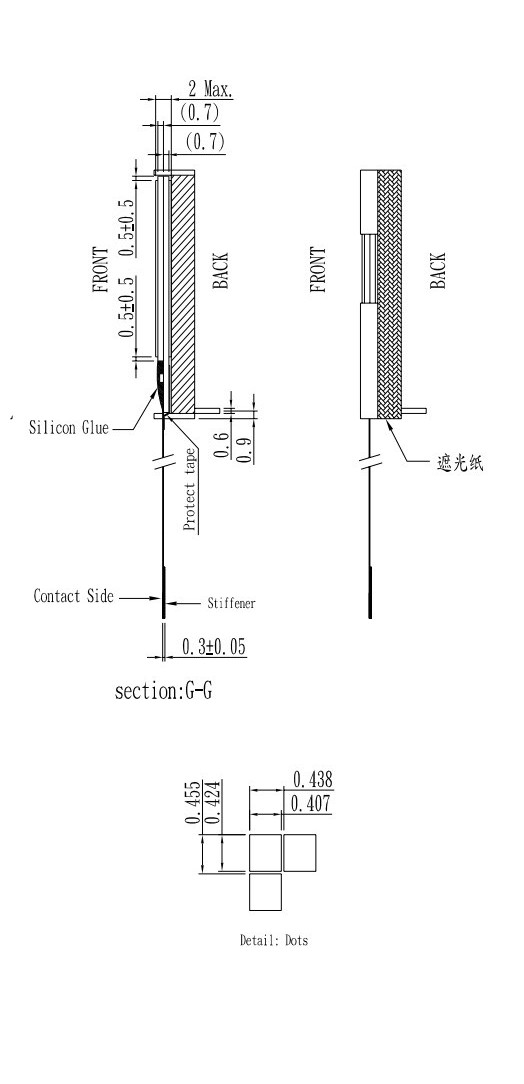

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.407 |
0.424 |
0.438 |
0.455 |
| inches |
0.016 |
0.017 |
0.017 |
0.018 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
12:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~3.6 |
Logic Supply Voltage（V） |
3.0 |
| Supply Voltage For LCD Drive(V) |
-0.3~13.5 |
LCD Drive（V） |
7.1 |
|
Current Consumption(mA) |
0.52 |

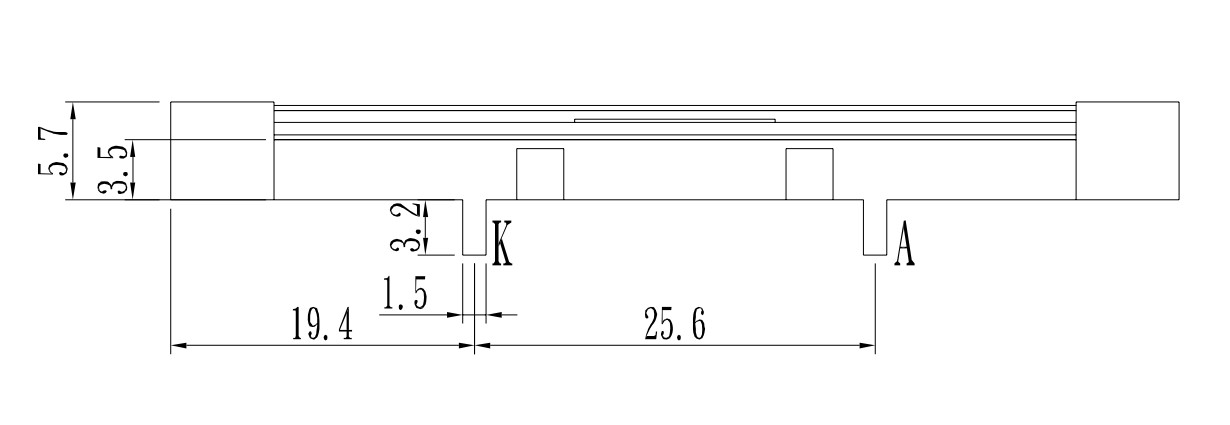

| Backlight |
| Forward Current(mA) |
30 |
Forward Voltage(V) |
12.4 |
| Reverse Voltage(V) |
20 |
Average Luminous Intensity(cd/m2) |
120 |
| Power Dissipation(mW) |
288 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |

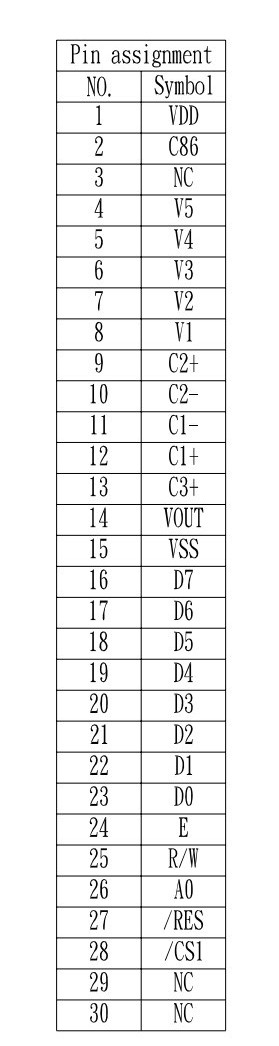

Electronics
| Interface |
6800 or 8080 interface |
