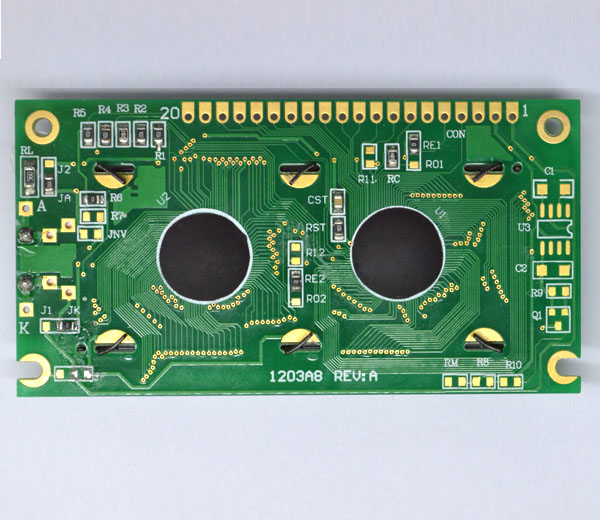

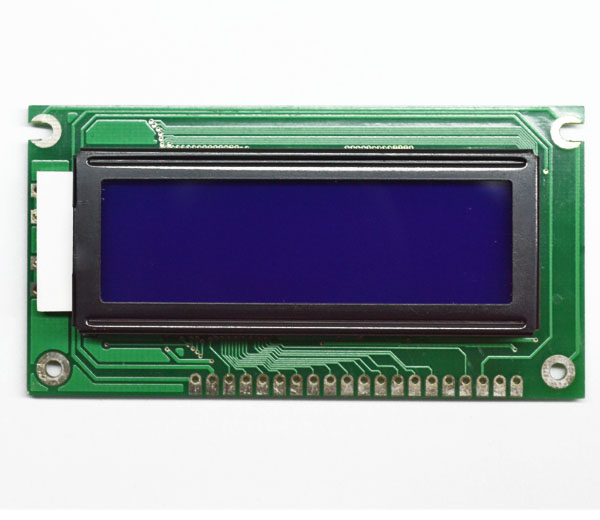

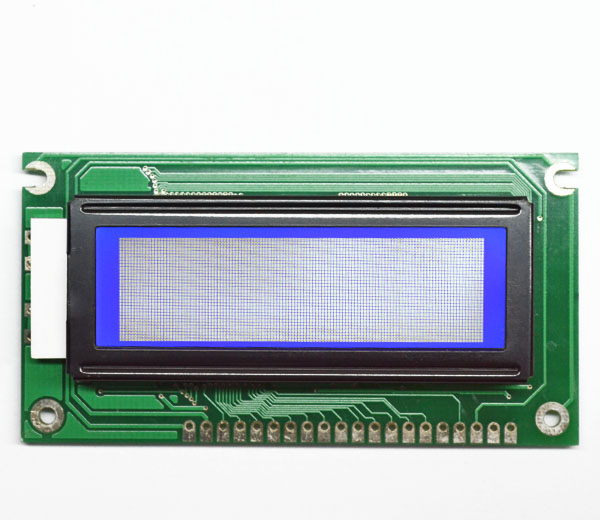

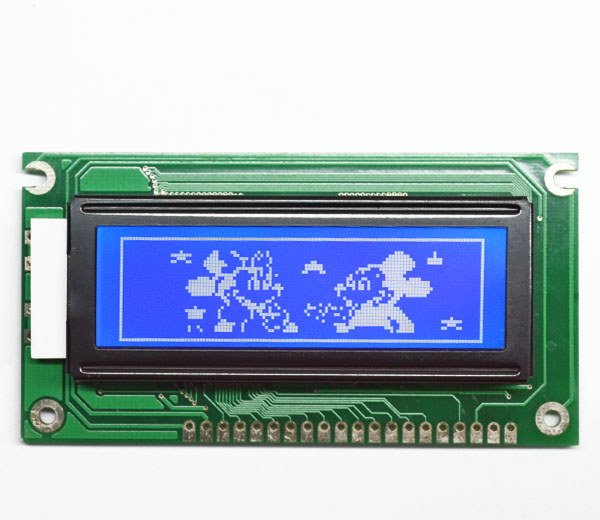

The features of LCD are as follows
* Display mode :STN/Blue/ Transmissive / Negative
* IC : SBN1661G-M18
* Interface Input Data :6800
* Driving Method :1/32 Duty,1/6Bias
* Viewing Direction : 6O’clock
* Backlight :LED/Side (White)
*Sample NO : G1203A8SGW6B-A0_01/20110104
For reference only. For design purposes, please use the specifications in the datasheet.

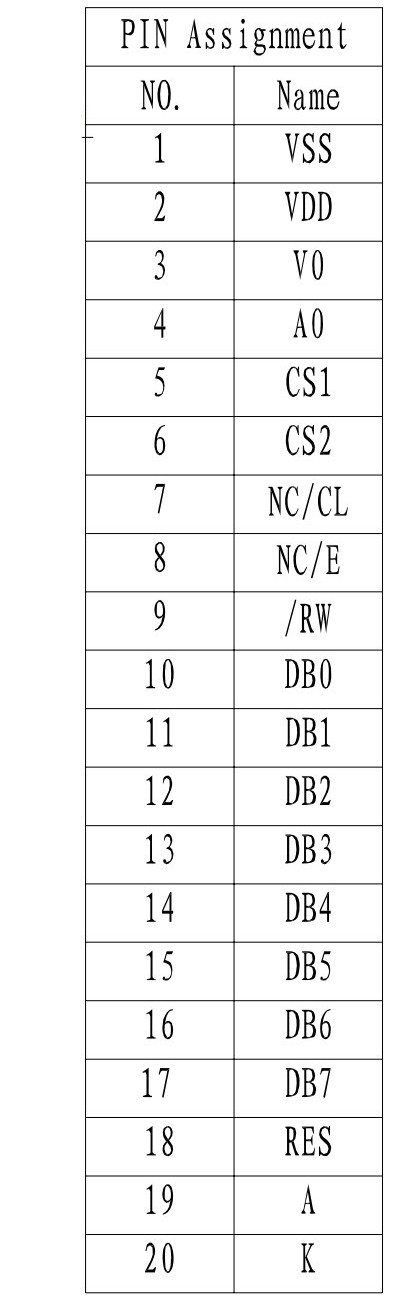

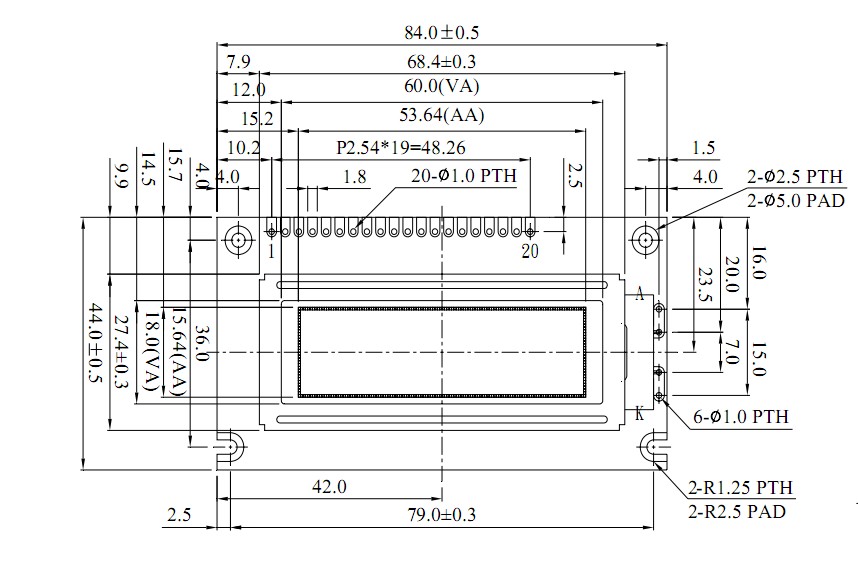

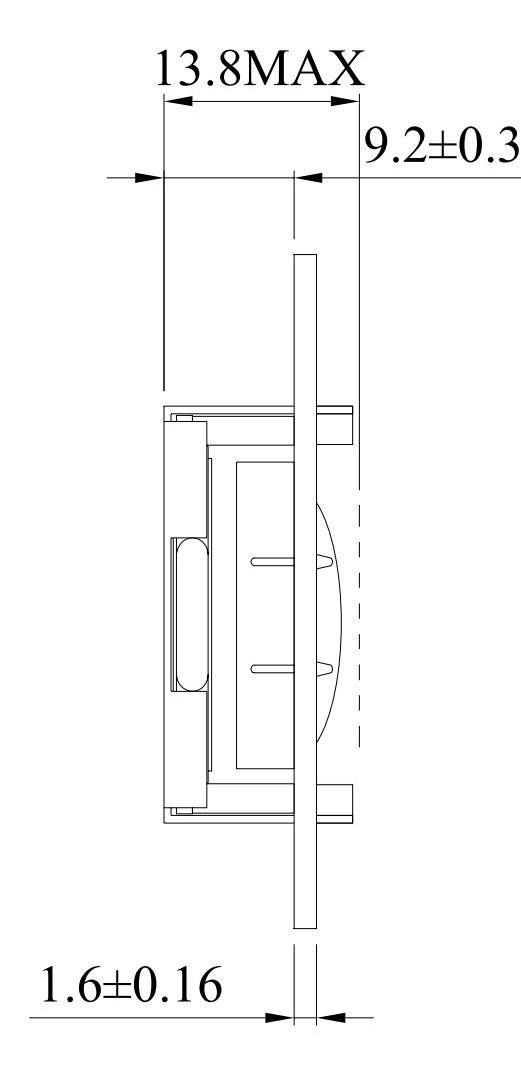

Physical Characteristics
| Column Dots x Row Dots |
122*32 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
84 |
44 |
13.8 |
60 |
18 |
53.64 |
15.64 |
| inches |
3.307 |
1.732 |
0.543 |
2.362 |
0.709 |
2.112 |
0.616 |
| |

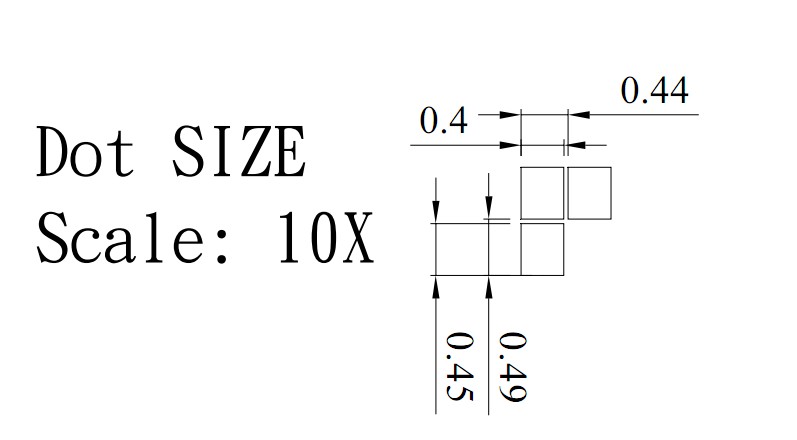

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.4 |
0.45 |
0.44 |
0.49 |
| inches |
0.016 |
0.018 |
0.017 |
0.019 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
6:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
3.5～13 |
LCD Drive（V） |
4.7 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
0.82 |
| Backlight |
| Forward Current(mA) |
30 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
400 |
| Power Dissipation(mW) |
96 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
Electronics
