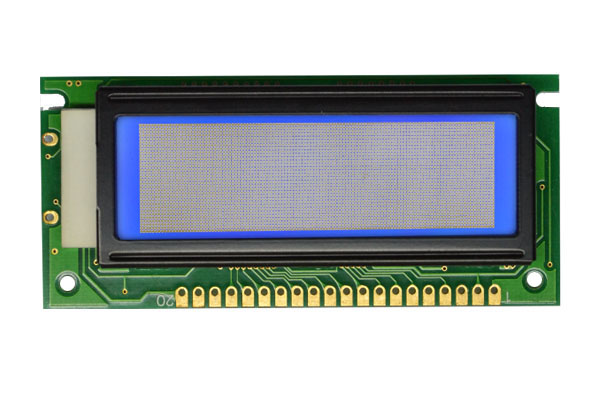

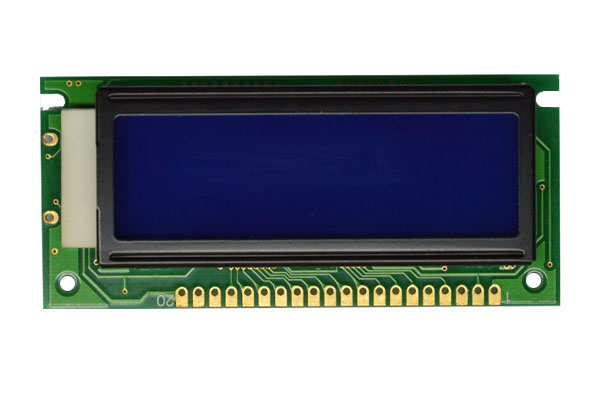

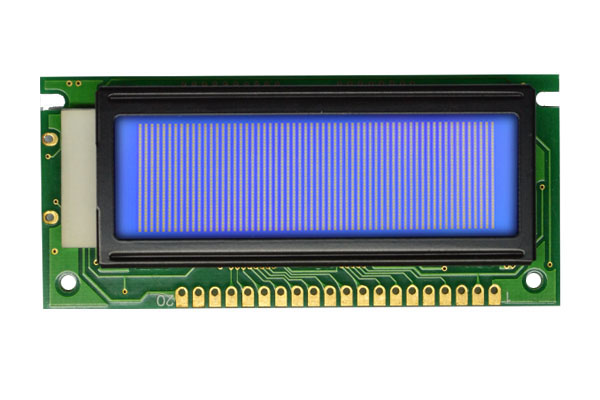

The features of LCD are as follows
* Display mode : STN/Blue/Transmissive/Negative
* Drive IC :SBN1661G-M18

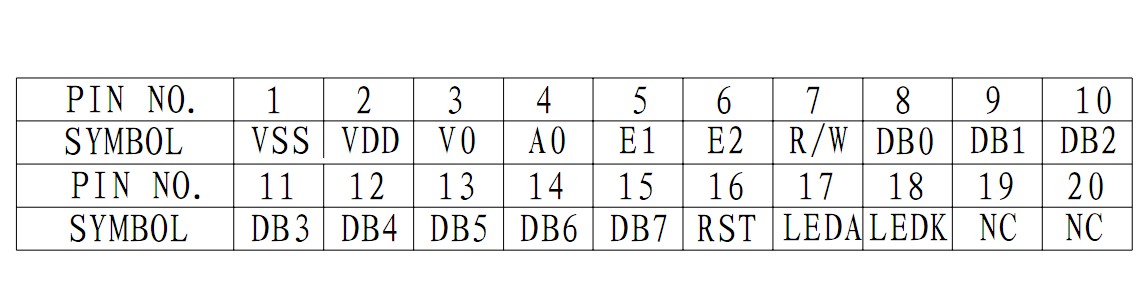

* Interface : 6800 interface
* Driving Method : 1/32 DUTY ,1/5 BIAS
* Viewing Direction : 12O’clock
* Backlight : LED Side/ White
*Sample NO. :G1203A9SGW7B-C0_01/20110514
For reference only. For design purposes, please use the specifications in the datasheet.

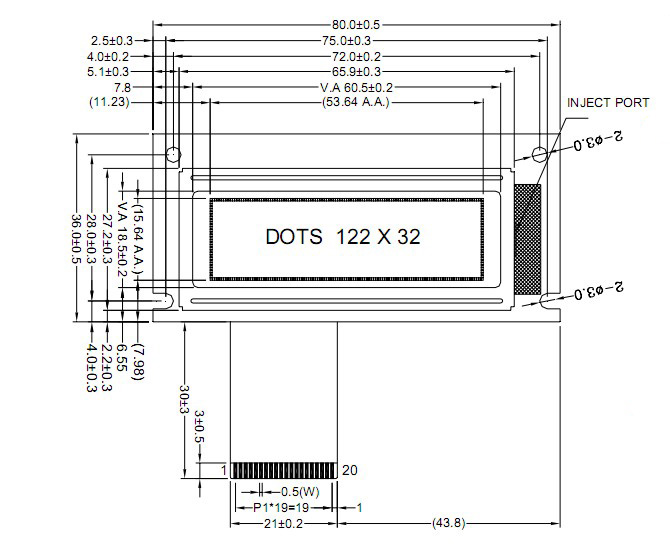

Physical Characteristics
| Column Dots x Row Dots |
122*32 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |

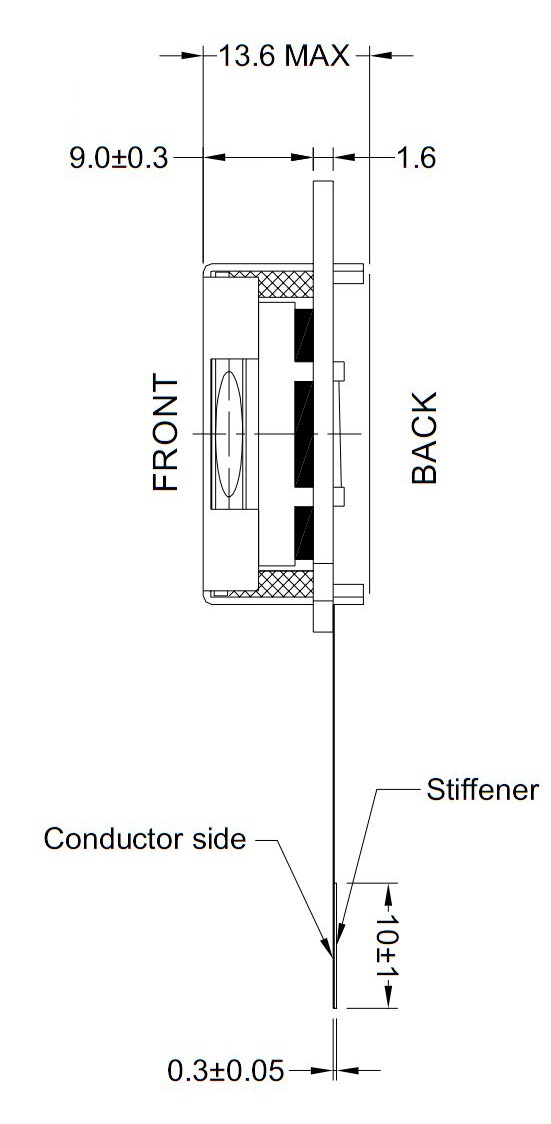

depth |
width |
height |
width |
height |
| millimeters |
80 |
36 |
13.6 |
60.5 |
18.5 |
53.64 |
15.64 |
| inches |
3.15 |
1.42 |
0.54 |
2.38 |
0.73 |
2.11 |
0.62 |
| |

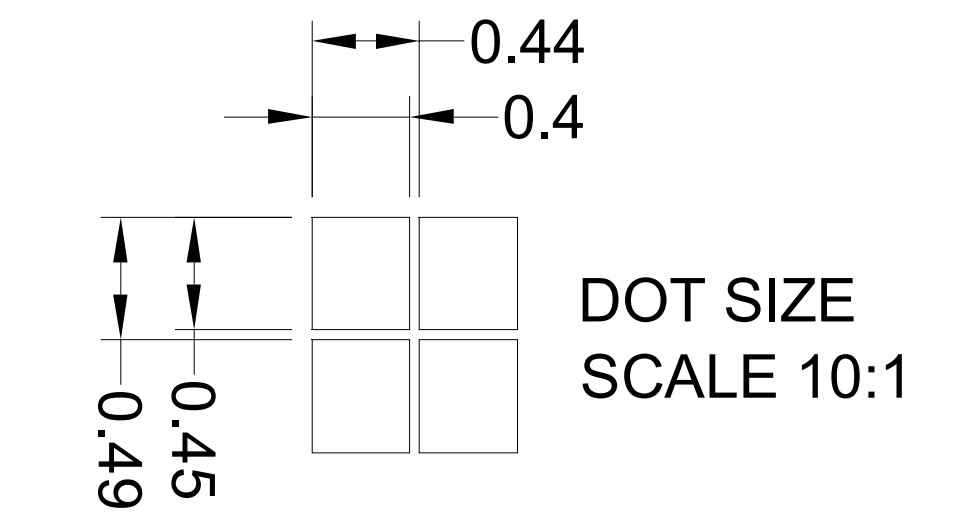

Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.4 |
0.45 |
0.44 |
0.49 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType/Glass Color |
Polarizer |
View Direction |
| Passive |
STN/Blue |
Transmissive |
12:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~7.0 |
Logic Supply Voltage（V） |
5 |
| Supply Voltage For LCD Drive(V) |
3.5~13.0 |
LCD Drive（V） |
4.1 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
1.0 |
| Backlight |
| Forward Current(mA) |
40 |
Forward Voltage(V) |
3.1 |
| Reverse Voltage(V) |
5 |
Average Luminous Intensity(cd/m2) |
150 |
| Power Dissipation(mW) |
140 |
|
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
