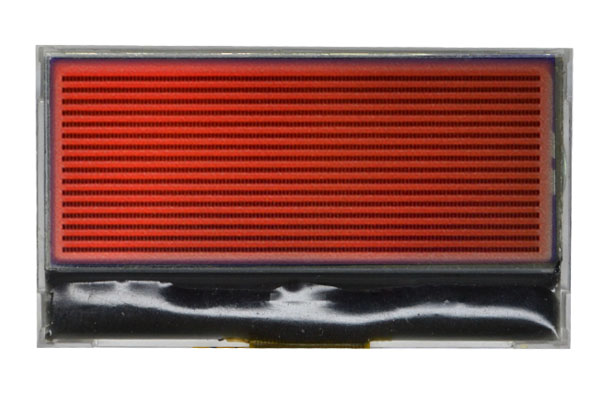

The features of LCD are as follows
* Display mode : FSTN, Transflective/Positive
* Drive IC :UC1601S
* Display format : 128×32Dots
* Interface Input Data : 8Bit, SPI, I2C
* Driving Method : 1/33Duty, 1/7Bias
* Viewing Direction :12 O’clock
* Backlight :Without
For reference only. For design purposes, please use the specifications in the datasheet.

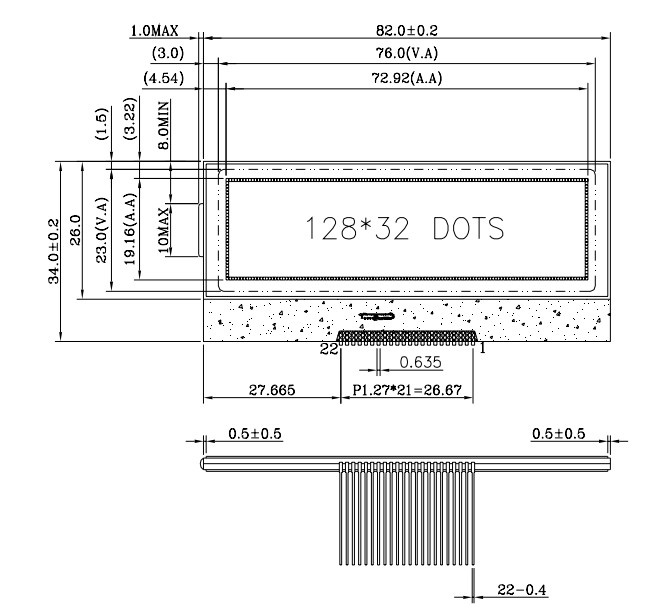

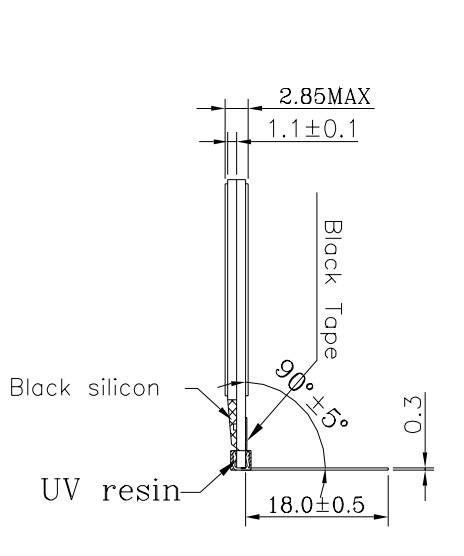

Physical Characteristics
| Column Dots x Row Dots |
128*32 |
| |
Module Overall |
Viewing Area |
Active Area |
| |
width |
height |
depth |
width |
height |
width |
height |
| millimeters |
82 |
34 |
2.85 |
76 |
23 |
72.92 |
19.16 |
| inches |
3.23 |
1.34 |
0.11 |
2.99 |
0.91 |
2.87 |
0.75 |
| |
Dot Size |
Dot Pitch |
| |
width |
height |
width |
height |
| millimeters |
0.53 |
0.56 |
0.57 |
0.6 |
| inches |
0.02 |
0.02 |
0.02 |
0.02 |
Optical Characteristics
| Display Addressing |
GlassType |
Polarizer |
View Direction |
| Passive |
FSTN |
Transflective |
12:00 |
| Absolute maximum ratings |
Electrical characteristics |
| Supply Voltage For Lggic(V) |
-0.3~4.0 |
Logic Supply Voltage（V） |
3.3 |
| Supply Voltage For LCD Drive(V) |
-0.3~13.2 |
LCD Drive（V） |
7.0 |
| Input Voltage(V) |
-0.3~VDD+0.3 |
Current Consumption(mA) |
0.28 |
Environmental
| |
Operating Temperatures |
Storage Temperatures |
| |
min |
max |
min |
max |
| Celsius |
-20° |
70° |
-30° |
80° |
| Farenheit |
-4° |
158° |
-22° |
176° |
| Humidity |
| |
min |
max |
| Non-condensing |
0 |
90% |
